LMF 5.00/24/180 3.5SN BK BX

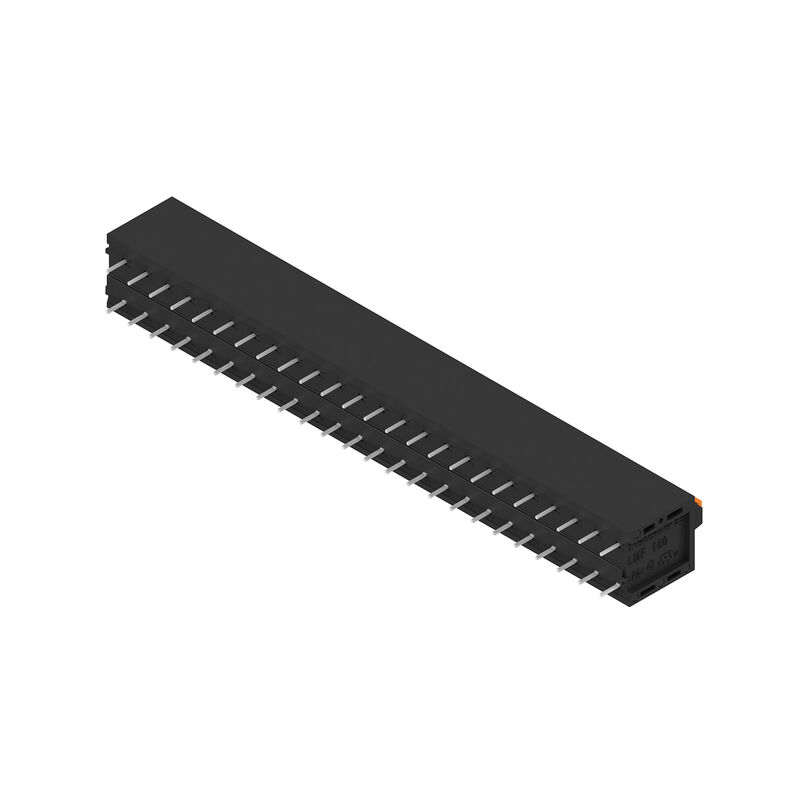

Product image
LMF 5.00/24/180 3.5SN BK BX

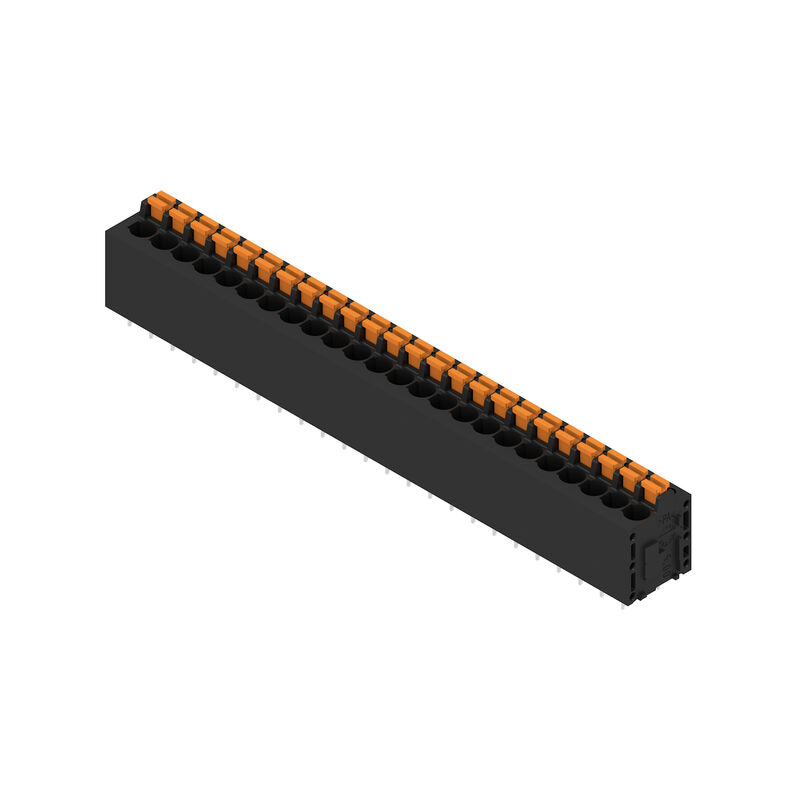

Product image
LMF 5.00/24/180 3.5SN BK BX
Dimensional drawing
LMF 5.00/24/180 3.5SN BK BX
Graph
LMF 5.00/24/180 3.5SN BK BX
Graph
LMF 5.00/24/180 3.5SN BK BX
Product benefits
Optional conductor outlet direction
Stable mechanical design
LMF 5.00/24/180 3.5SN BK BX
Product benefits
High reliability of the current capacity
LMF 5.00/24/180 3.5SN BK BX
Product benefits
Direct conductor entry
Cross section up to 2.5 mm²
LMF 5.00/24/180 3.5SN BK BX
Product benefits
Maintenance through test point

LMF 5.00/24/180 3.5SN BK BX

This product will soon be unavailable.

Last order date: /Date(1793401200000)/

Printed circuit board terminals, 5.00 mm, Number of poles: 24, 180°, Solder pin length (l): 3.5 mm, tinned, black, PUSH IN with push button, Clamping range, max. : 2.5 mm², Box

Item No. 1425270000
Download data sheet Engineering Support
Accessories 1 Related products 23
Approvals General ordering data Dimensioni e pesi Conformità ambientale del prodotto Paramètres du système Données des matériaux Conducteurs indiqués pour raccordement Datos nominales conformes a IEC Rated data acc. to CSA Rated data acc. to UL 1059 Imballaggio Type tests Important note Классификации

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
Printed circuit board terminals, 5.00 mm, Number of poles: 24, 180°, Solder pin length (l): 3.5 mm, tinned, black, PUSH IN with push button, Clamping range, max. : 2.5 mm², Box
Best.-Nr.
1425270000
Art
LMF 5.00/24/180 3.5SN BK BX
GTIN (EAN)
4050118229172
VPE
10 items
Product data
IEC: 400 V / 24 A / 0.5 - 2.5 mm²
UL: 300 V / 20 A / AWG 24 - AWG 12
Packaging
Box

Dimensioni e pesi

Tiefe
14,8 mm
Tiefe (inch)
0,583 inch
Höhe
22,7 mm
Высота (в дюймах)
0,894 inch
Высота, мин.
19,2 mm
Breite
122,7 mm
Width (inches)
4,831 inch
Nettogewicht
34,35 g

Conformità ambientale del prodotto

RoHS-Konformitätsstatus
Conforme senza esenzione
REACH SVHC
No SVHC above 0.1 wt%

Paramètres du système

Product family
OMNIMATE Signal - sorozat LMF
Wire connection method
PUSH IN с кнопкой
Mounting onto the PCB
THT solder connection
Leiterabgangsrichtung
180°
Pitch in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Number of poles
24
Polreihenzahl
2
Fitted by customer
No
Number of rows
1
Max. adjacent poles per row
24
Solder pin length (l)
3,5 mm
Lötstift-Abmessungen
d = 0.8 mm
Solder eyelet hole diameter (D)
1,1 mm
Bestückungsloch-Durchmesser Toleranz (D)
+ 0,1 mm
Anzahl Lötstifte pro Pol
2
Schraubendreherklinge
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Stripping length
10 mm
L1 in mm
115 mm
L1 in inches
4,528 "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20

Données des matériaux

Isolierstoff
Wemid (PA)
Farbe
검정
Farbe Betätigungselemente
orange
Farbtabelle (ähnlich)
RAL 9011
Kriechstromfestigkeit (CTI)
≥ 600
Brennbarkeitsklasse nach UL 94
V-0
Kontaktmaterial
Cu-alloy
Kontaktoberfläche
tinned
Beschichtung
4-6 μm SN
Verzinnungsart
matt
Schichtaufbau - Lötanschluss
4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Conducteurs indiqués pour raccordement

Klemmbereich, min.
0,12 mm²
Klemmbereich, max.
2,5 mm²
Leiteranschlussquerschnitt AWG, min.
AWG 24
Leiteranschlussquerschnitt AWG, max.
AWG 12
eindrähtig, min. H05(07) V-U
0,5 mm²
eindrähtig, max. H05(07) V-U
2,5 mm²
feindrähtig, min. H05(07) V-K
0,25 mm²
feindrähtig, max. H05(07) V-K
2,5 mm²
mit AEH mit Kragen DIN 46 228/4, min.
0,25 mm²
mit AEH mit Kragen DIN 46 228/4, max.
2,5 mm²
mit Aderendhülse nach DIN 46 228/1, min.
0,25 mm²
mit Aderendhülse nach DIN 46 228/1, max.
2,5 mm²
Lehrdorn nach EN 60999 a x b; ø
2.4 mm x 1.5 mm
Klemmbare Leiter
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9019100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004080000
Hinweistext
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Datos nominales conformes a IEC

tested acc. to standard
IEC 60664-1
IEC 61984
IEC 60947-7-4
Bemessungsstrom, min. Polzahl (Tu=20°C)
24 A
Bemessungsstrom, max. Polzahl (Tu=20°C)
24 A
Bemessungsstrom, min. Polzahl (Tu=40°C)
24 A
Bemessungsstrom, max. Polzahl (Tu=40°C)
24 A
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad II/2
400 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/2
320 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/3
250 V
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad II/2
4 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/2
4 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/3
4 kV
Kurzzeitstromfestigkeit
3 x 1s with 120 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 12

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
300 V
Nennspannung (Use group D / UL 1059)
300 V
Nennstrom (Use group B / UL 1059)
20 A
Nennstrom (Use group D / UL 1059)
10 A
Leiteranschlussquerschnitt AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 12

Imballaggio

Verpackung
Box
VPE Länge
338 mm
VPE Breite
130 mm
VPE Höhe
27 mm

Type tests

Prüfung: Haltbarkeit der Markierungen
  • Standard:
    DIN EN 60512-1-1 / 01.03
  • Test:
    mark of origin, type identification, pitch, approval marking UL, durability
  • Evaluation:
    available
Prüfung: Klemmbarer Querschnitt
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Prüfung auf Beschädigung und unbeabsichtigtes Lösen von Leitern
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-Out Test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

IPC-Konformität
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Hinweise
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • The test point can only be used as potential-pickup point.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Классификации

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
