LSF-SMT 5.08/04/180 3.5SN BK TU
Product image

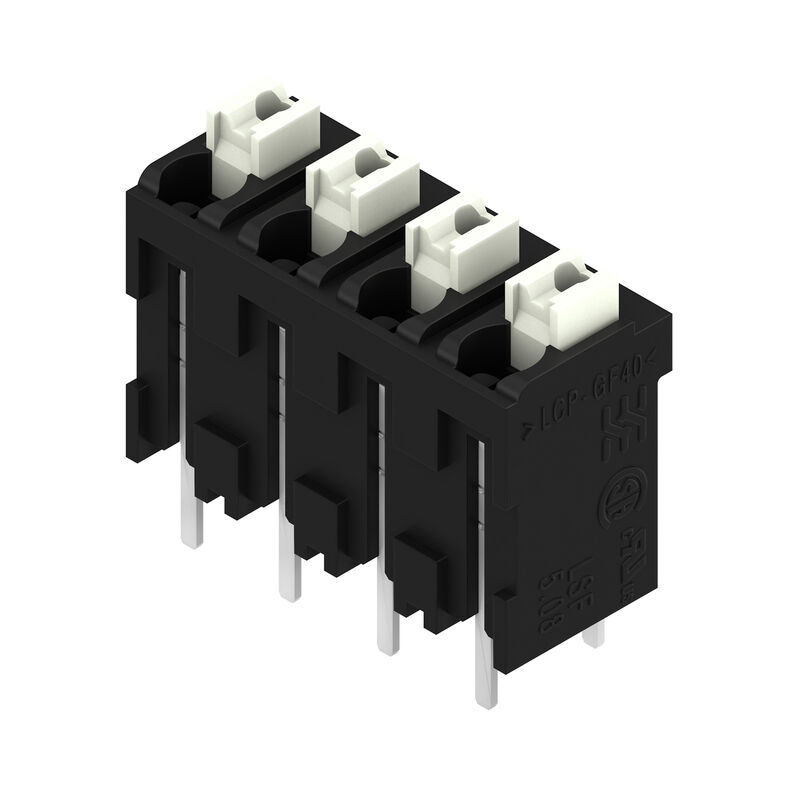

LSF-SMT 5.08/04/180 3.5SN BK TU
Product image

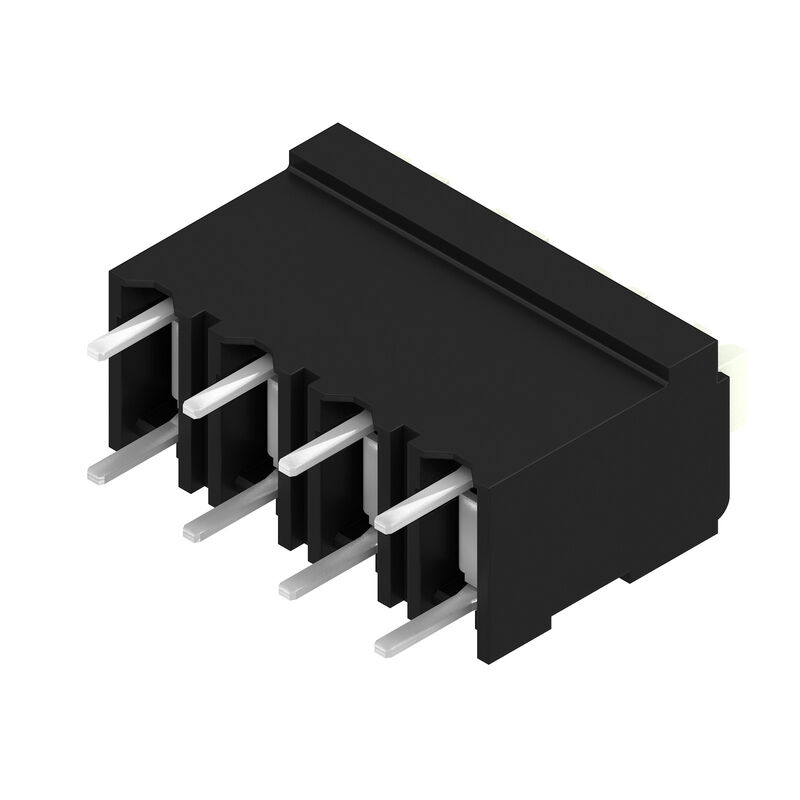

LSF-SMT 5.08/04/180 3.5SN BK TU
Dimensional drawing
LSF-SMT 5.08/04/180 3.5SN BK TU
Graph
LSF-SMT 5.08/04/180 3.5SN BK TU
Graph

LSF-SMT 5.08/04/180 3.5SN BK TU

Клемма печатной платы, 5.08 mm, Количество полюсов: 4, 180°, Длина штифта для припайки (l): 3.5 mm, черный, PUSH IN с исполнительным устройством, Диапазон зажима, макс. : 1.5 mm², Tube

항목 번호 1826070000
데이터 시트 다운로드 Mühendislik desteği Ürün İndirmleri
관련 제품 30
Approvals Основные данные для заказа Dimensions and weights Temperatures Экологическое соответствие изделия System parameters Údaje o materiálu Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Jmenovité údaje podle UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

Основные данные для заказа

Version
Клемма печатной платы, 5.08 mm, Количество полюсов: 4, 180°, Длина штифта для припайки (l): 3.5 mm, черный, PUSH IN с исполнительным устройством, Диапазон зажима, макс. : 1.5 mm², Tube
Order No.
1826070000
Type
LSF-SMT 5.08/04/180 3.5SN BK TU
GTIN (EAN)
4032248328789
Qty.
28 items
Product data
IEC: 500 V / 17.5 A / 0.2 - 1.5 mm²
UL: 300 V / 12 A / AWG 28 - AWG 14
Packaging
Tube

Dimensions and weights

Depth
7,8 mm
Depth (inches)
0,307 inch
Height
17,5 mm
Height (inches)
0,689 inch
Height of lowest version
14 mm
Width
19,44 mm
Width (inches)
0,765 inch
Net weight
2,46 g

Temperatures

Continuous operating temp., max.
120 °C

Экологическое соответствие изделия

RoHS Compliance Status
Соответствует без исключения
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.035 kg CO2 eq.

System parameters

Familia del producto
OMNIMATE Signal - series LSF
Técnica de conexión de conductores
PUSH IN with actuator
Montering på kretskortet
THT/THR solder connection
Conductor outlet direction
180°
Delning i mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Number of poles
4
Pin series quantity
1
Fitted by customer
Nie
Number of rows
1
Solder pin length (l)
3,5 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Solder pin dimensions
0.35 x 0.8 mm
Solder pin dimensions = d tolerance
0 / -0.1 mm
Solder eyelet hole diameter (D)
1,1 mm
Допуск на диаметр отверстия припойного ушка (D)
+ 0,1 мм
Number of solder pins per pole
2
Длина зачистки изоляции
8 mm
L1 в мм
15,24 mm
L1 в дюймах
0,6 "
Защита от прикосновения согласно DIN VDE 0470
IP 20
Защита от прикосновения согласно DIN VDE 57 106
защита от доступа пальцем
IP20
Объемное сопротивление
1,60 мОм

Údaje o materiálu

Insulating material
LCP GF
Colour
black
Colour of operational elements
white
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Layer structure of solder connection
4...6 µm Sn матовый
Температура хранения, мин.
-40 °C
Температура хранения, макс.
70 °C
Рабочая температура, мин.
-50 °C
Рабочая температура, макс.
120 °C
Temperature range, installation, min.
-30 °C
Температурный диапазон монтажа, макс.
120 °C

Conductors suitable for connection

Clamping range, min.
0,13 mm²
Clamping range, max.
1,5 mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
0,75 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Clampable conductor
  • Сечение подсоединяемого провода:
    • номин.:
      0,25 mm²
  • кабельный наконечник:
    • Длина снятия изоляции:
      • номин.:
        10 mm
    • Рекомендованная обжимная втулка для фиксации концов проводов:
      9025760000
  • Сечение подсоединяемого провода:
    • номин.:
      0,34 mm²
  • кабельный наконечник:
    • Длина снятия изоляции:
      • номин.:
        10 mm
    • Рекомендованная обжимная втулка для фиксации концов проводов:
      9025770000
  • Сечение подсоединяемого провода:
    • номин.:
      0,5 mm²
  • кабельный наконечник:
    • Длина снятия изоляции:
      • номин.:
        10 mm
    • Рекомендованная обжимная втулка для фиксации концов проводов:
      0690700000
  • Сечение подсоединяемого провода:
    • номин.:
      0,75 mm²
  • кабельный наконечник:
    • Длина снятия изоляции:
      • номин.:
        10 mm
    • Рекомендованная обжимная втулка для фиксации концов проводов:
      9021040000
Текст ссылки
Длина кабельных наконечников подбирается в зависимости от типа продукта и номинального напряжения.
Наружный диаметр пластиковой манжеты не должен превышать размер шага (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17,5 A
Rated current, max. number of poles (Tu=20°C)
17,5 A
Rated current, min. number of poles (Tu=40°C)
17,5 A
Rated current, max. number of poles (Tu=40°C)
15 A
Rated voltage for surge voltage class / pollution degree II/2
500 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Short-time withstand current resistance
3 x 1s with 80 A

Rated data acc. to CSA

Institut (CSA)
CSA
Č. osvědčení (CSA)
200039-1664286
Märkspänning (användargrupp B / CSA)
300 V
Märkspänning (användargrupp D / CSA)
300 V
Rated current (Use group B / CSA)
10 A
Jmenovitý proud (aplikační skupina D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 28
Leiteranschlussquerschnitt AWG, max.
AWG 14
Odkaz na hodnoty pro schválení
Specifikace jsou maximální hodnoty, podrobnosti viz příslušná certifikace.

Jmenovité údaje podle UL 1059

Institute (cURus)
CURUS
Č. osvědčení (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
12 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 28
Wire cross-section, AWG, max.
AWG 14
Odkaz na hodnoty pro schválení
Specifikace jsou maximální hodnoty, podrobnosti viz příslušná certifikace.

Packing

Packaging
Tube
VPE length
555 mm
VPE width
20 mm
VPE height
15 mm
Surface resistance
Rs = 109 - 1012 Ω

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 60512-1-1 / 01.03
  • Test:
    mark of origin, type identification, pitch, approval marking UL, durability
  • Evaluation:
    available
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      H05V-U0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional push button colours on request
  • Operating force of slider max. 40 N
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool recommended.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
