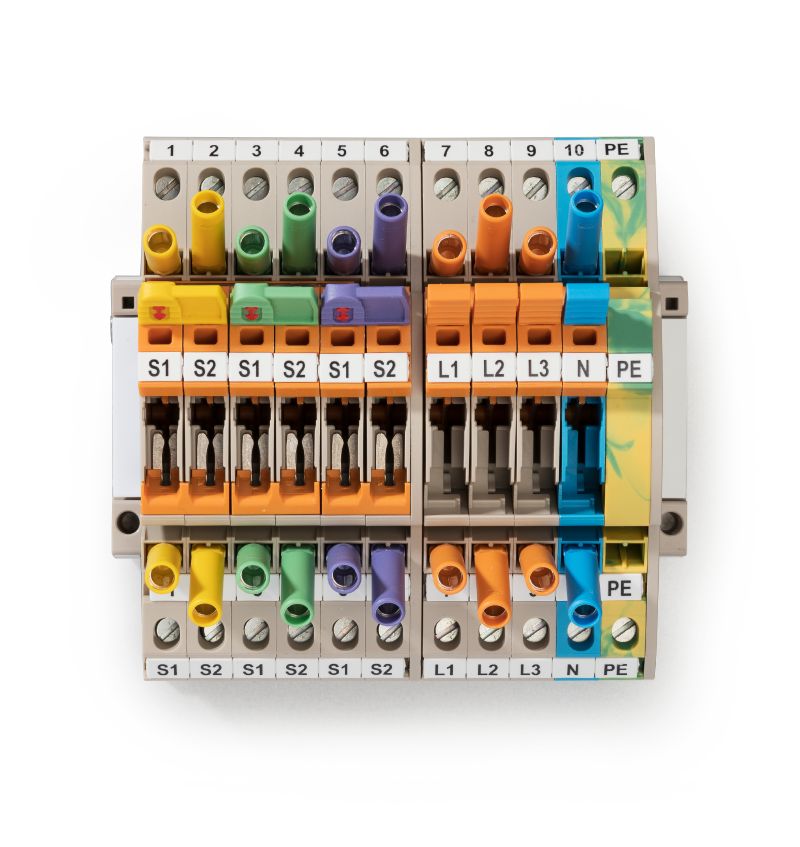

Test-disconnect terminal, dark beige, blue, Green/yellow, 6 mm², 30 A, 500 V, Number of connections: 22, TS 35, TS 32, V-0, Wemid

Item No. 8000082524

Properties

General ordering data

Version	Test-disconnect terminal, dark beige, blue, Green/yellow, 6 mm², 30 A, 500 V, Number of connections: 22, TS 35, TS 32, V-0, Wemid
Order No.	8000082524
Type	LST_CTVT_3PHASEPEWTTB
GTIN (EAN)	4064675568568
Qty.	1 items

Dimensions and weights

Depth	79 mm
Depth (inches)	3.11 inch
Height	100 mm
Height (inches)	3.937 inch
Width	105 mm
Width (inches)	4.134 inch
Net weight	400 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material	Wemid
Colour	dark beige blue Green/yellow
Colour of operational elements	orange
UL 94 flammability rating	V-0

System specifications

End cover plate required	No
Number of potentials	4
Rail	TS 35 TS 32
PE function	Yes

Additional technical data

Open sides	closed
Type of mounting	Snap-on

Conductors for clamping (rated connection)

Blade size	0.8 x 4.0 mm
Clamping range, max.	10 mm²
Clamping range, min.	0.5 mm²
Connection cross-section, stranded, max.	10 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	on side
Gauge to IEC 60947-1	A4
Number of connections	22
Stripping length	12 mm
Wire connection cross section AWG, max.	AWG 8
Wire connection cross section AWG, min.	AWG 22
Wire connection cross section, finely stranded, max.	10 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	10 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

Rail	TS 35 TS 32
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 8
Wire connection cross section AWG, min.	AWG 22

Rated cross-section	6 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	30 A
Current at maximum wires	30 A
Standards	IEC 60947-7-1
Rated impulse withstand voltage	6 kV
Pollution severity	3
Surge voltage category	III
