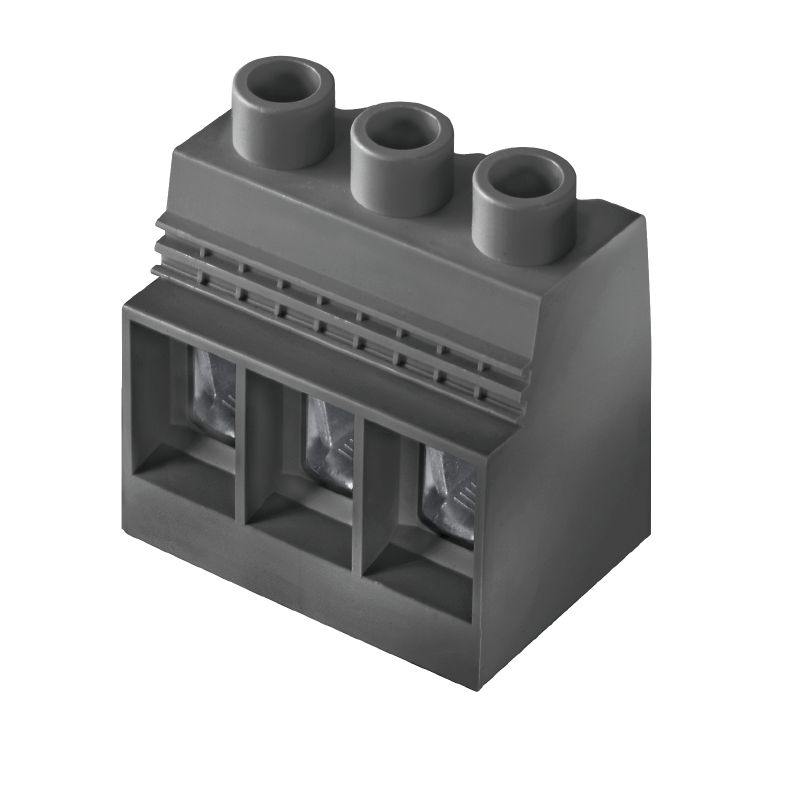

LXXX 15.00/03/90 4.5SN BK BX — Product image

Similar to illustration

Download data sheet EDA single component Related products

LXXX 15.00/03/90 4.5SN BK BX

Printed circuit board terminals, 15.00 mm, Number of poles: 3, 90°, Solder pin length (l): 4.5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 50 mm², Box

Item No. 1047140000

Properties

General ordering data

Version	Printed circuit board terminals, 15.00 mm, Number of poles: 3, 90°, Solder pin length (l): 4.5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 50 mm², Box
Order No.	1047140000
Type	LXXX 15.00/03/90 4.5SN BK BX
GTIN (EAN)	4032248784011
Qty.	10 items
Product data	IEC: 1000 V / 150 A / 0.5 - 50 mm² UL: 600 V / 126 A / AWG 20 - AWG 1
Packaging	Box

Dimensions and weights

Depth	31 mm
Depth (inches)	1.22 inch
Height	56 mm
Height (inches)	2.205 inch
Height of lowest version	51.5 mm
Width	46 mm
Width (inches)	1.811 inch
Net weight	88 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System parameters

Product family	OMNIMATE Power - series LXXX
Wire connection method	Clamping yoke connection
Mounting onto the PCB	THT solder connection
Conductor outlet direction	90°
Pitch in mm (P)	15 mm
Pitch in inches (P)	0.591 "
Number of poles	3
Pin series quantity	1
Fitted by customer	No
Number of rows	1
Solder pin length (l)	4.5 mm
Solder pin dimensions	1.2 x 1.2 mm
Solder eyelet hole diameter (D)	1.6 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Number of solder pins per pole	4
Screwdriver blade	1.2 x 6.5
Screwdriver blade standard	DIN 5264
Tightening torque, min.	2.5 Nm
Tightening torque, max.	4 Nm
Clamping screw	M 6
Stripping length	18 mm
L1 in mm	30 mm
L1 in inches	1.181 "
Touch-safe protection acc. to DIN VDE 0470	IP 20
Protection degree	IP20

Material data

Insulating material	Wemid (PA)
Colour	black
Colour chart (similar)	RAL 9011
Insulating material group	I
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	tinned
Coating	4-6 μm SN
Layer structure of solder connection	1.5...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.	-40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	-50 °C
Operating temperature, max.	120 °C
Temperature range, installation, min.	-25 °C
Temperature range, installation, max.	120 °C

Conductors suitable for connection

Clamping range, min.	0.5 mm²
Clamping range, max.	50 mm²
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section AWG, max.	AWG 1
Solid, min. H05(07) V-U	0.5 mm²
Solid, max. H05(07) V-U	16 mm²
Stranded, min. H07V-R	6 mm²
Stranded, max. H07V-R	50 mm²
Flexible, min. H05(07) V-K	0.5 mm²
Flexible, max. H05(07) V-K	35 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	35 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	35 mm²
Clampable conductor	Cross-section for conductor connection: Type: fine-wired nominal: 2.5 mm² wire end ferrule: Stripping length: nominal: 20 mm Recommended wire-end ferrule: 9019180000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 9004090000 Cross-section for conductor connection: Type: fine-wired nominal: 4 mm² wire end ferrule: Stripping length: nominal: 20 mm Recommended wire-end ferrule: 9019210000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 9004110000 Cross-section for conductor connection: Type: fine-wired nominal: 6 mm² wire end ferrule: Stripping length: nominal: 20 mm Recommended wire-end ferrule: 0565700000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 9004130000 Cross-section for conductor connection: Type: fine-wired nominal: 10 mm² wire end ferrule: Stripping length: nominal: 21 mm Recommended wire-end ferrule: 0565800000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 0379300000 Cross-section for conductor connection: Type: fine-wired nominal: 16 mm² wire end ferrule: Stripping length: nominal: 21 mm Recommended wire-end ferrule: 0566000000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 0375200000 Cross-section for conductor connection: Type: fine-wired nominal: 1.5 mm² wire end ferrule: Stripping length: nominal: 20 mm Recommended wire-end ferrule: 0565600000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 9004070000 Cross-section for conductor connection: Type: fine-wired nominal: 35 mm² wire end ferrule: Stripping length: nominal: 19 mm Recommended wire-end ferrule: 9019320000 Stripping length: nominal: 18 mm Recommended wire-end ferrule: 0368900000 Cross-section for conductor connection: Type: fine-wired nominal: 50 mm² wire end ferrule: Stripping length: nominal: 18 mm Recommended wire-end ferrule: 9004210000
Reference text	Length of ferrules is to be chosen depending on the product and the rated voltage. The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

Rated current, min. number of poles (Tu=20°C)	150 A
Rated current, min. number of poles (Tu=40°C)	150 A
Rated voltage for surge voltage class / pollution degree II/2	1,000 V
Rated voltage for surge voltage class / pollution degree III/2	1,000 V
Rated voltage for surge voltage class / pollution degree III/3	1,000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	8 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	8 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	8 kV

Rated data acc. to CSA

Institute (CSA)	CSA
Certificate No. (CSA)	200039-1198743
Rated voltage (Use group B / CSA)	600 V
Rated voltage (Use group C / CSA)	600 V
Rated voltage (Use group D / CSA)	600 V
Rated current (Use group B / CSA)	127 A
Rated current (Use group C / CSA)	127 A
Rated current (Use group D / CSA)	5 A
Wire cross-section, AWG, min.	AWG 20
Wire cross-section, AWG, max.	AWG 1
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)	UR
Certificate No. (UR)	E60693
Rated voltage (Use group B / UL 1059)	600 V
Rated voltage (Use group C / UL 1059)	600 V
Rated current (Use group B / UL 1059)	126 A
Rated current (Use group C / UL 1059)	126 A
Wire cross-section, AWG, min.	AWG 20
Wire cross-section, AWG, max.	AWG 1
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Packing

Packaging	Box
VPE length	255 mm
VPE width	111 mm
VPE height	63 mm

Type tests

Test: Durability of markings	Standard: DIN EN 60512-1-1 / 01.03 Test: mark of origin, type identification, type of material, pitch, date clock, approval marking CSA, approval marking UL, durability Evaluation: available
Test: Clampable cross section	Standard: DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02 Conductor type: Type of conductor and conductor cross-section: solid 0.5 mm² Type of conductor and conductor cross-section: stranded 0.5 mm² Type of conductor and conductor cross-section: solid 16 mm² Type of conductor and conductor cross-section: flexible 35 mm² Type of conductor and conductor cross-section: AWG 20/1 Type of conductor and conductor cross-section: AWG 20/19 Type of conductor and conductor cross-section: AWG 10/1 Type of conductor and conductor cross-section: AWG 1/19 Type of conductor and conductor cross-section: H07V-R50 Type of conductor and conductor cross-section: H07V-K35 Evaluation: passed
Test for damage to and accidental loosening of conductors	Standard: DIN EN 60999-1 section 9.5 / 12.00 Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: solid 0.5 mm² Type of conductor and conductor cross-section: stranded 0.5 mm² Type of conductor and conductor cross-section: AWG 20/1 Type of conductor and conductor cross-section: AWG 20/19 Evaluation: passed Requirement: 1.4 kg Conductor type: Type of conductor and conductor cross-section: AWG 10/1 Evaluation: passed Requirement: 2.0 kg Conductor type: Type of conductor and conductor cross-section: stranded 10 mm² Evaluation: passed Requirement: 8,6 kg Conductor type: Type of conductor and conductor cross-section: AWG 1/19 Evaluation: not checked Requirement: 8,6 kg Conductor type: Type of conductor and conductor cross-section: flexible 35 mm² Evaluation: passed
Pull-out test	Standard: DIN EN 60999 section 8.5 / 04.94 Requirement: ≥20 N Conductor type: Type of conductor and conductor cross-section: solid 0.5 mm² Type of conductor and conductor cross-section: stranded 0.5 mm² Type of conductor and conductor cross-section: AWG 20/1 Type of conductor and conductor cross-section: AWG 20/19 Evaluation: passed Requirement: ≥80 N Conductor type: Type of conductor and conductor cross-section: AWG 10/1 Evaluation: passed Requirement: ≥ 90N Conductor type: Type of conductor and conductor cross-section: stranded 10 mm² Evaluation: passed Requirement: > 236 N Conductor type: Type of conductor and conductor cross-section: AWG 1/19 Evaluation: not checked Requirement: > 190 N Conductor type: Type of conductor and conductor cross-section: flexible 35 mm² Evaluation: passed

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Rated current related to rated cross-section & min. No. of poles.

Wire end ferrule without plastic collar to DIN 46228/1

Wire end ferrule with plastic collar to DIN 46228/4

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

IP 20 from 16 mm² to 50 mm²

The test point can only be used as potential-pickup point.

Wire-end ferrules are mandatory for stranded wires with more than 19 strands.

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months

Downloads

Approval/Certificate/Document of Conformity	[Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59892)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1047140000)
User Documentation	[QR-Code product handling video](https://mdcop.weidmueller.com/mediadelivery/asset/900_78415)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061) [MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132)

Classifications

ETIM 6.0	EC002643
ETIM 7.0	EC002643
ETIM 8.0	EC002643
ETIM 9.0	EC002643
ECLASS 9.0	27-44-04-01
ECLASS 9.1	27-44-04-01
ECLASS 10.0	27-44-04-01
ECLASS 11.0	27-46-01-01
ECLASS 12.0	27-46-01-01
ECLASS 13.0	27-46-01-01
ECLASS 14.0	27-46-01-01

Approvals

Approvals	![CSA](/picture/CSA.gif) ![UR](/picture/UR.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E60693
