Properties
| Version | Sliding nut, M 5 |
| Order No. | 0503500000 |
| Type | MB M3/M5 CRM |
| GTIN (EAN) | 4008190182083 |
| Qty. | 20 items |

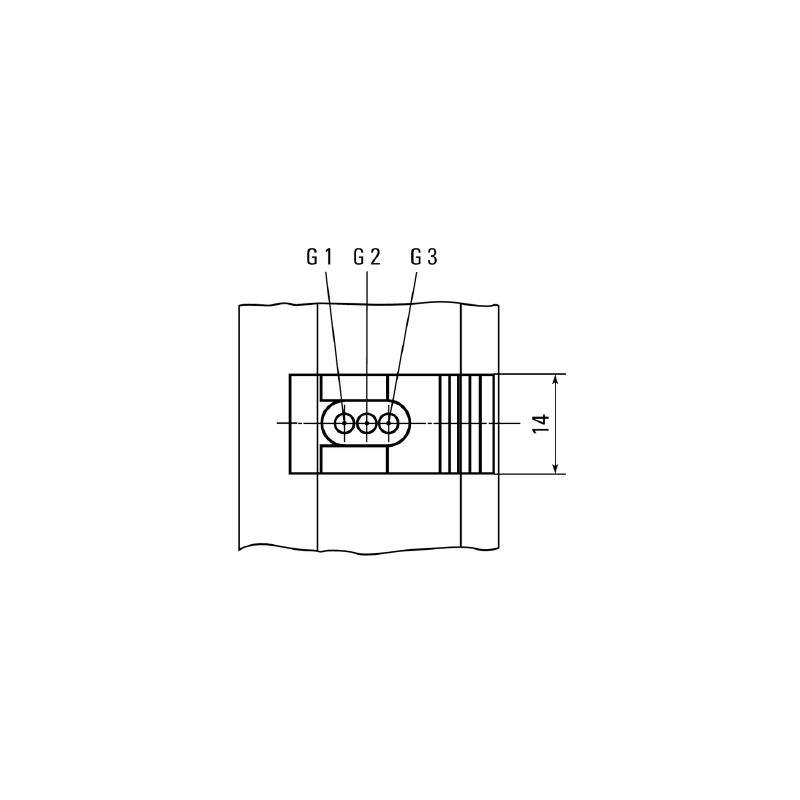

| Depth | 14 mm |
| Depth (inches) | 0.551 inch |
| Height | 25 mm |
| Height (inches) | 0.984 inch |
| Width | 12 mm |
| Width (inches) | 0.472 inch |
| Net weight | 3.55 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polyamide 66 |
| Surface finish | untreated |
| Colour | Cream |
| UL 94 flammability rating | V-2 |
| Version | For the mounting rails |
| Rail | TS 32 |
| Explosion-tested version | No |
| Type of fixing | Snap-on |
| Internal thread | M 5 |
| Pitch in mm (P) | 12 mm |
| Rail | TS 32 |
| Surface finish | untreated |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0503500000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [CAT 1 TERM 16/17 EN](http://download.weidmueller.com/asset/download/file/39470) |
| ETIM 6.0 | EC000096 |
| ETIM 7.0 | EC000096 |
| ETIM 8.0 | EC000096 |
| ETIM 9.0 | EC000096 |
| ECLASS 9.0 | 23-11-08-04 |
| ECLASS 9.1 | 23-11-08-04 |
| ECLASS 10.0 | 23-11-08-04 |
| ECLASS 11.0 | 23-11-07-16 |
| ECLASS 12.0 | 23-11-07-16 |
| ECLASS 13.0 | 23-11-07-16 |
| ECLASS 14.0 | 23-11-07-16 |
| ROHS | Conform |
Is accessory of
-
Item No.:0169300000Packaging unit:2 Meter
Terminal rail, Accessories, Aluminium, untreated, Width: 2000 mm, Height: 33 mm, Depth: 15 mm
-
Item No.:0122800000Packaging unit:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 33 mm, Depth: 15 mm
-
Item No.:0514400000Packaging unit:2 Meter
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 33 mm, Depth: 15 mm, Slit width: 5.20 mm, Slit length: 25.00 mm
Cabinet InfrastructureDIN railsTS 32Aluminum
Cabinet InfrastructureDIN railsTS 32Steel
