Properties

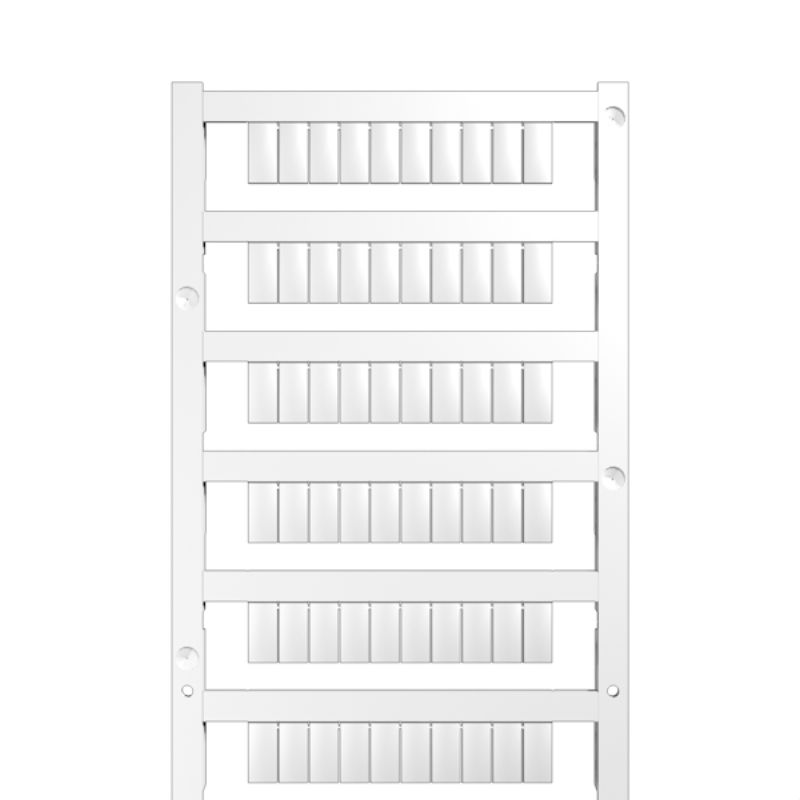

| Version | MultiFit, Terminal marker, 10 x 5 mm, Pitch in mm (P): 5.00 Phoenix, Wieland, Legrand, Telemecanique, Entrelec, white |
| Order No. | 1677160000 |
| Type | MF 10/5 MC NE WS |
| GTIN (EAN) | 4008190475505 |
| Qty. | 600 items |
| Height | 10 mm |
| Height (inches) | 0.394 inch |
| Width | 5 mm |
| Width (inches) | 0.197 inch |
| Net weight | 0.18 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Application/manufacturer |
Phoenix
Wieland Legrand Telemecanique Entrelec |
| Colour | white |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 9 |
| Number of markers per combination | 1 MultiCard = Terminal marker |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | neutral |
| Type of printing | neutral |
| UL 94 flammability rating | V-2 |
| Width | 5 mm |
| Pitch in mm (P) | 5 mm |
| Engineering Data |
[CAD data -- 20993_MF_10-5_MC_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_39442)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62700) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1677160000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1677160000) |
| Product Change Notification |
[Technical change to MultiCard material - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_102023)
[Technical change to MultiCard material - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_102024) [MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560) [MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
Is accessory of
Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Retaining clips
Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRI miniature industrial relay modules (16mm width)Retaining clips
