MK 3/4

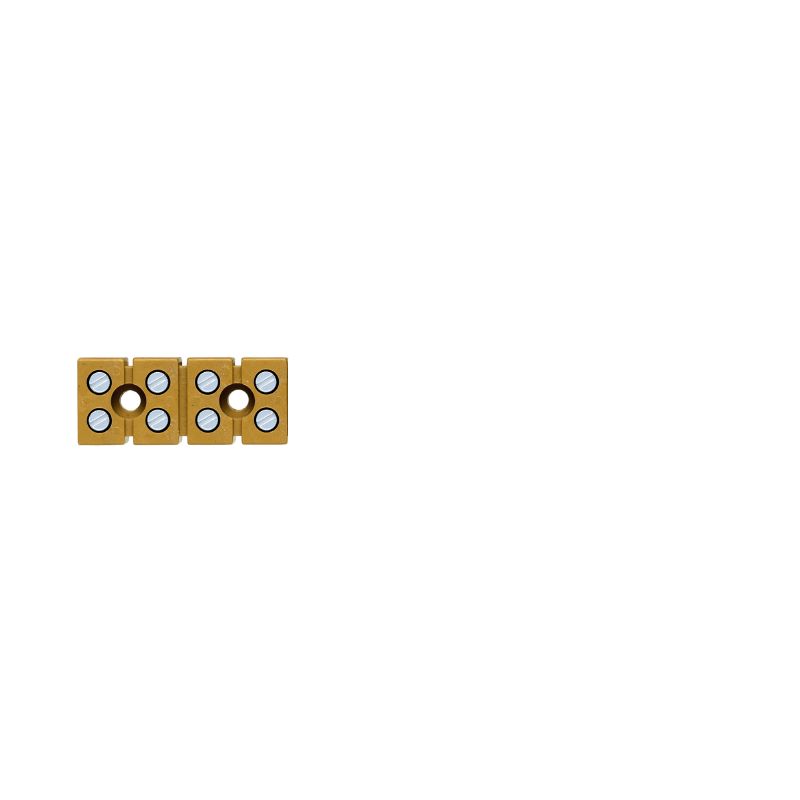

Product image

MK 3/4

Single- and multi-pole terminal strip, Screw connection, medium yellow, 2.5 mm², 24 A, 400 V, Number of connections: 8, Number of levels: 1

Item No. 0274020000
Download data sheet Engineering Support Product Downloads
Accessories 2 Related products 1056
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Dimensions General Rating data UL rating data Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Version
Single- and multi-pole terminal strip, Screw connection, medium yellow, 2.5 mm², 24 A, 400 V, Number of connections: 8, Number of levels: 1
Order No.
0274020000
Type
MK 3/4
GTIN (EAN)
4008190020712
Qty.
50 items

Dimensions and weights

Depth
16.1 mm
Depth (inches)
0.634 inch
Height
15 mm
Výška (v palcích)
0.591 inch
Width
35.75 mm
Width (inches)
1.407 inch
Net weight
14.1 g

Temperatures

Skladovací teplota
-25 °C...55 °C
Temperatura ambiente
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
KrG
Colour
medium yellow
UL 94 flammability rating
5VA

System specifications

Version
For the mounting rails
End cover plate required
No
Number of potentials
1
Number of levels
1
Mounting rail
Mounting plate

Additional technical data

Explosion-tested version
No
Installation advice
Direct mounting
Type of mounting
Direct mounting

Conductors for clamping (additional connection)

Anschlussart, weiterer Anschluss
Screw connection

Conductors for clamping (rated connection)

Dimension de la lame
0.6 x 3.5 mm
Dirección de conexión
on side
Gauge to IEC 60947-1
A2
Longitud de desaislado
5 mm
Number of connections
8
Par de apriete, max.
0.45 Nm
Par de apriete, min.
0.4 Nm
Plage de serrage, max.
4 mm²
Plage de serrage, min.
0.33 mm²
Przekrój przyłącza przewodów, przewód jednodrutowy, min.
0.33 mm²
Tipo de conexión 2
Screw connection
Torque level with DMS electric screwdriver
1
Type of connection
Screw connection
Vezeték csatlakozási keresztmetszet AWG, min.
AWG 22
Vezeték csatlakozási keresztmetszet, finomsodratú, érvéghüvelyekkel és műanyag gallérokkal DIN 46228/4, névleges csatlakozás, max.
1.5 mm²
Vis de serrage
M 2.5
Wire connection cross section AWG, max.
AWG 12
Wire connection cross-section, solid core, max.
4 mm²
配線接続断面、ワイヤエンドフェルール付 DIN 46228/1 の細径撚線、最大
1.5 mm²
配線接続断面、ワイヤエンドフェルール付 DIN 46228/1 の細径撚線、最小
0.33 mm²
配線接続断面、ワイヤエンドフェルール付 DIN 46228/4 の細径撚線、最小
0.33 mm²
결선 단면적, 꼬임, 최대
2.5 mm²
결선 단면적, 꼬임, 최소
0.33 mm²
와이어 결선 단면, 가는 꼬임, 최대
2.5 mm²
와이어 결선 단면, 가는 꼬임, 최소
0.33 mm²

CSA rating data

Maks. przekrój przewodu (CSA)
12 AWG
Napięcie rozm. C (CSA)
300 V
Prąd Gr C (CSA)
25 A
Поперечное сечение провода, мин. (CSA)
22 AWG
Сертификат № (CSA)
12400-149

Dimensions

Fixing dimension
18.5 mm

General

Einbauhinweis
Direct mounting
Leiteranschlussquerschnitt AWG, min.
AWG 22
Normen
IEC 60947-7-1
Number of poles
4
Tragschiene
Mounting plate
Wire connection cross section AWG, max.
AWG 12

Rating data

Rated cross-section
2.5 mm²
Rated voltage
400 V
Rated DC voltage
400 V
Nominal current
24 A
Current at maximum wires
24 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
22 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
22 AWG
Current size B (UR)
20 A
Current size D (UR)
5 A
Voltage size B (UR)
300 V
Voltage size D (UR)
600 V

Product images

Classifications

ETIM 8.0
EC001284
ETIM 9.0
EC001284
ETIM 10.0
EC001284
ECLASS 14.0
27-14-11-06
ECLASS 15.0
27-14-11-06
