Properties

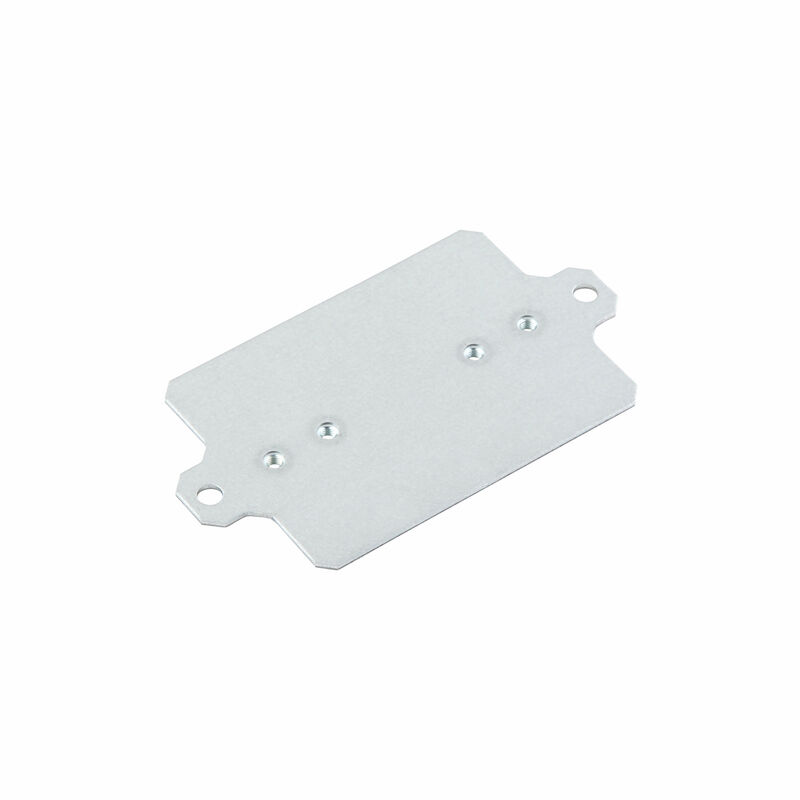

| Version | Klippon K (aluminium empty enclosure), Mounting plate, Mounting plate, Height: 52 mm, Width: 91 mm, Depth: 3 mm, Material: Sheet steel, galvanized, galvanized, silver |
| Order No. | 1905270000 |
| Type | MOPL K2 N FE |
| GTIN (EAN) | 4032248524433 |
| Qty. | 1 items |
| Depth | 3 mm |
| Depth (inches) | 0.118 inch |
| Height | 52 mm |
| Height (inches) | 2.047 inch |
| Width | 91 mm |
| Width (inches) | 3.583 inch |
| Mounting dimension - height | 26 mm |
| Mounting dimension - width | 82 mm |
| Net weight | 46 g |
| Material | Sheet steel, galvanized |
| Material thickness | 2 mm |
| Surface finish | galvanized |
| Material | Sheet steel, galvanized |
| Material thickness | 2 mm |
| Mounting dimension - height | 26 mm |
| Mounting dimension - width | 82 mm |
| Surface finish | galvanized |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1905270000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1905270000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000213 |
| ETIM 7.0 | EC000213 |
| ETIM 8.0 | EC000213 |
| ETIM 9.0 | EC000213 |
| ECLASS 9.0 | 27-40-06-39 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-40-06-39 |
| ECLASS 11.0 | 27-40-06-39 |
| ECLASS 12.0 | 27-40-06-39 |
| ECLASS 13.0 | 27-40-06-39 |
| ROHS | Conform |
Accessories
-
Item No.:8000003884Packaging unit:20 PC
Rail, TS 15, Width: 90 mm, without slot, Steel, galvanic zinc plated and passivated
Is accessory of
-
Item No.:1329650000Packaging unit:1 PC
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 100 mm, Depth: 45 mm, Material: Aluminium AlSi12, Powder-coated, Silver grey
-
Item No.:9529140000Packaging unit:10 PC
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 100 mm, Depth: 45 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey
-
Item No.:1937930000Packaging unit:10 PC
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 100 mm, Depth: 45 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey
-
Item No.:1939580000Packaging unit:10 PC
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 100 mm, Depth: 45 mm, Material: Aluminium AlSi12, untreated, silver
-
Item No.:9526860000Packaging unit:1 PC
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 100 mm, Depth: 45 mm, Material: Aluminium AlSi12, untreated, silver
-
Item No.:0342100000Packaging unit:10 PC
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 100 mm, Depth: 45 mm, Material: Aluminium AlSi12, untreated, silver
