Properties

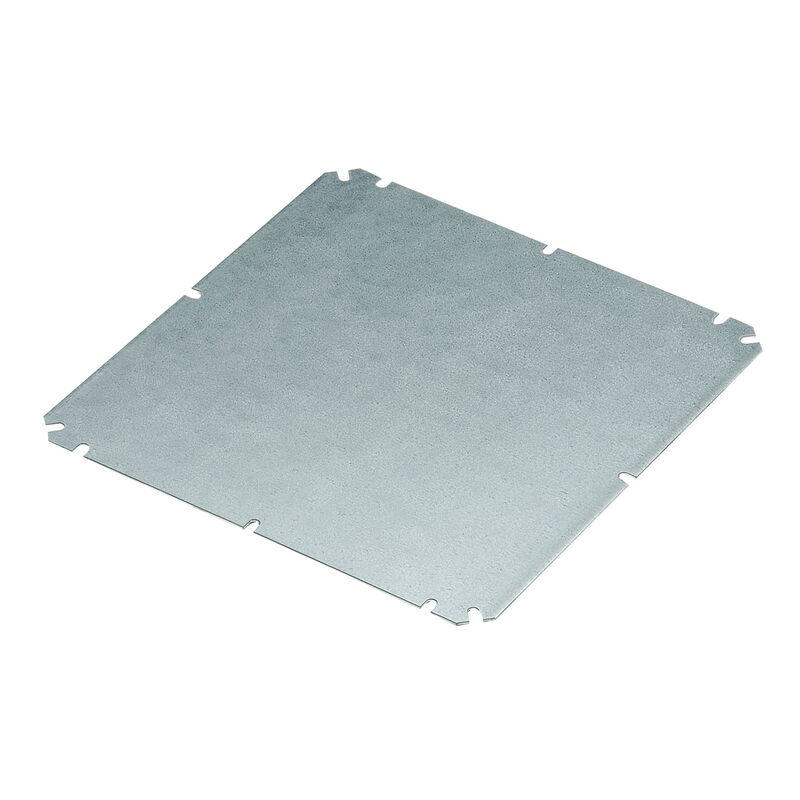

| Version | FPC (polycarbonate empty enclosure), Mounting plate, Mounting plate, Height: 260 mm, Width: 260 mm, Depth: 1.5 mm, Material: Sheet steel, galvanized, silver |
| Order No. | 9535950000 |
| Type | MP FPC 30/30 |
| GTIN (EAN) | 4032248009671 |
| Qty. | 1 items |
| Depth | 1.5 mm |
| Depth (inches) | 0.059 inch |
| Height | 260 mm |
| Height (inches) | 10.236 inch |
| Width | 260 mm |
| Width (inches) | 10.236 inch |
| Net weight | 782 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Sheet steel |
| Surface finish | galvanized |
| Type of fixing | when screwed in |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_76953) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9535950000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9535950000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000213 |
| ETIM 7.0 | EC000213 |
| ETIM 8.0 | EC000213 |
| ETIM 9.0 | EC000213 |
| ECLASS 9.0 | 27-40-06-39 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-40-06-39 |
| ECLASS 11.0 | 27-40-06-39 |
| ECLASS 12.0 | 27-40-06-39 |
| ECLASS 13.0 | 27-40-06-39 |
| ECLASS 14.0 | 27-40-06-39 |
| ROHS | Conform |
