MP TBF 49/30

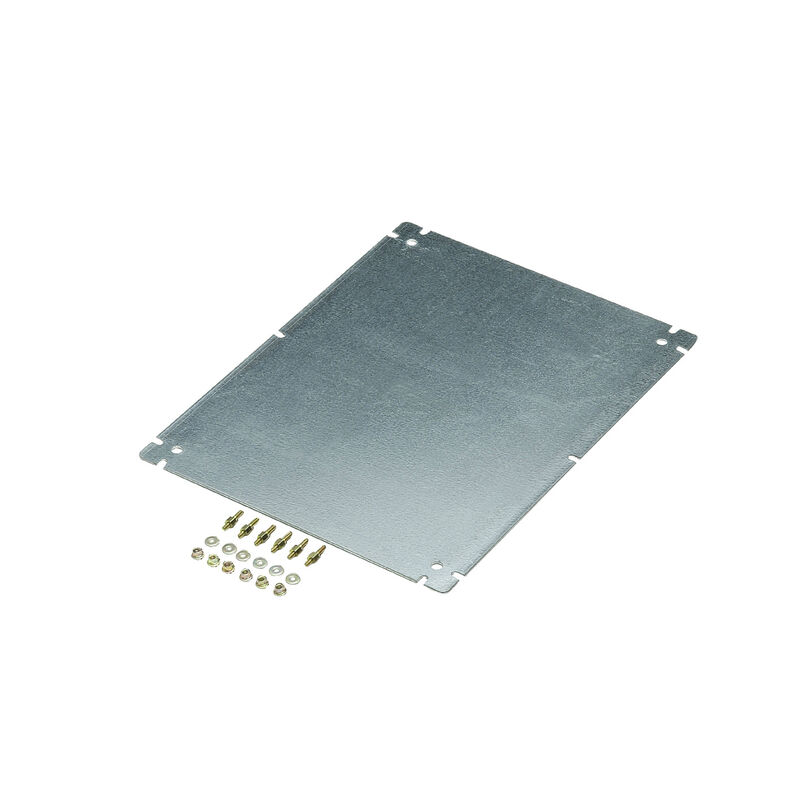

Similar to illustration

MP TBF 49/30

TBF (polyester empty enclosure), Mounting plate, Mounting plate, Height: 435 mm, Width: 249 mm, Depth: 2 mm, Material: Sheet steel, galvanized, galvanized, silver

Item No. 9500960000
Download data sheet Product Downloads Engineering Support
Is accessory of 2 Related products 9
Approvals General ordering data Dimensions and weights Environmental Product Compliance General information Classifications

Approvals

ROHS
Conform

General ordering data

Version
TBF (polyester empty enclosure), Mounting plate, Mounting plate, Height: 435 mm, Width: 249 mm, Depth: 2 mm, Material: Sheet steel, galvanized, galvanized, silver
Order No.
9500960000
Type
MP TBF 49/30
GTIN (EAN)
4032248025497
Qty.
1  items

Dimensions and weights

Depth
2  mm
Depth (inches)
0.079  inch
Height
435  mm
Height (inches)
17.126  inch
Width
249  mm
Width (inches)
9.803  inch
Net weight
1,670  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Material
Sheet steel, galvanized
Material thickness
2  mm
Surface finish
galvanized
Type of fixing
when screwed in

Classifications

ETIM 6.0
EC000213
ETIM 7.0
EC000213
ETIM 8.0
EC000213
ETIM 9.0
EC000213
ETIM 10.0
EC000213
ECLASS 9.0
27-40-06-39
ECLASS 9.1
27-18-92-90
ECLASS 10.0
27-40-06-39
ECLASS 11.0
27-40-06-39
ECLASS 12.0
27-40-06-39
ECLASS 13.0
27-40-06-39
ECLASS 14.0
27-40-06-39
ECLASS 15.0
27-40-06-39
