PAC-CTLX-SD37-V1-1M

PAC-CTLX-SD37-V1-1M

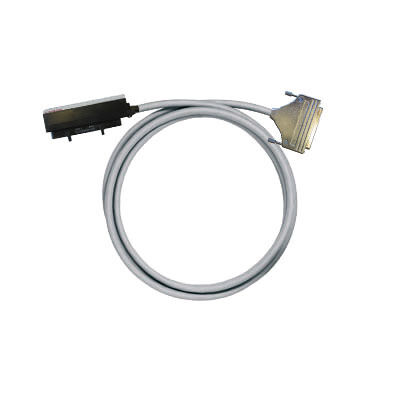

Pre-assembled cable, PAC, Cable LiYCY, 0.25 mm²

Produkt ID 7789165010
Download datablad Produktdownloads
Anvendte produkter 125
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General Data Electrical Data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Pre-assembled cable, PAC, Cable LiYCY, 0.25 mm²
Order No.
7789165010
Type
PAC-CTLX-SD37-V1-1M
GTIN (EAN)
4032248916498
Qty.
1 Styk

Dimensions and weights

Net weight
491.2 g

Temperatures

Storage temperature
-10...60 °C
Operating temperature
-10...50

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
4bbf2c0d-0764-4fc8-bb24-9351c28c190d

General Data

Basic material
PVC
Cable
Cable LiYCY
Connector PLC side
ROCKWELL CONTROL LOGIX 1756-TBNH 20P
Interface connector
SUB-D FEMALE 37P
Lämplig för
Analogue signals
Number of poles, min.
37-pole
Outer diameter
12.2 ± 1 mm
Wire cross-section
0.25 mm²
Длина кабеля
1 m

Electrical Data

Capacity wire / shield
300 pF/m
High voltage test
1 KV/1s
Intensità della corrente consentita per percorso, max.
1 A
Tensione nominale
≤ 60 Vdc ≤ 25 Vac
Összes áram, max.
3 A
용량 와이어/와이어
300 pF/m
저항
≤ 80 mΩ/m

Classifications

ETIM 8.0
EC000237
ETIM 9.0
EC000237
ETIM 10.0
EC000237
ECLASS 14.0
27-24-22-20
ECLASS 15.0
27-24-22-20
