Properties

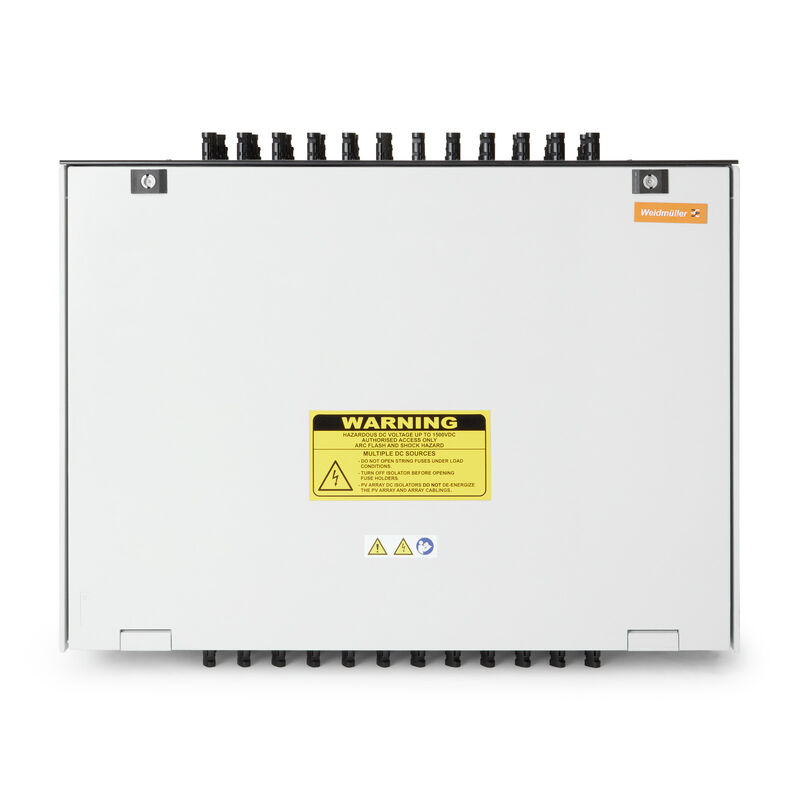

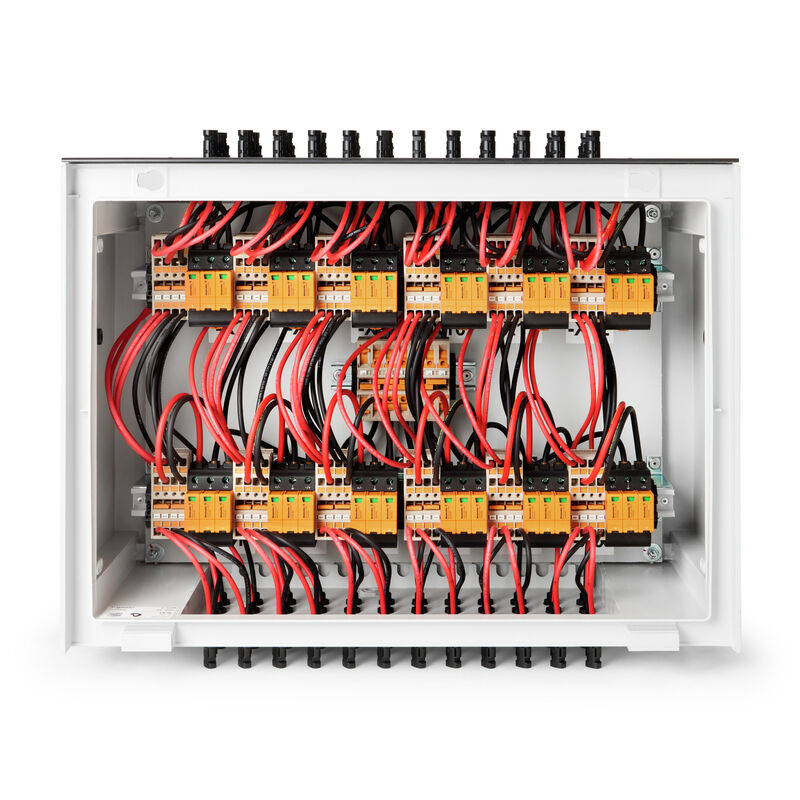

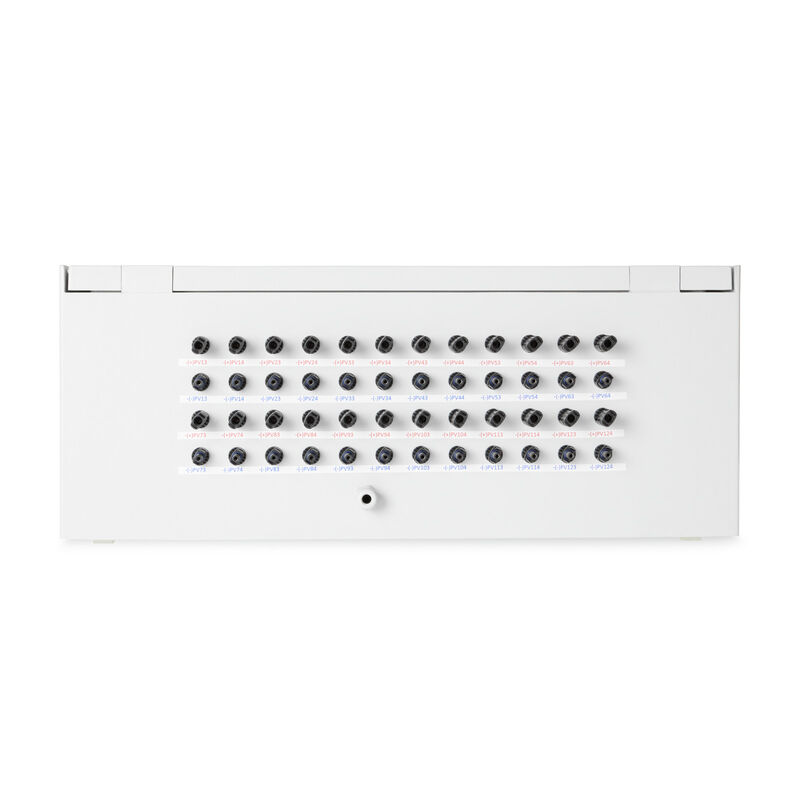

| Version | Photovoltaics, Assembled enclosure, Combiner Box, 1500 V, Surge protection II, WM4C, for wall mounting, Landscape, String Inverter, 9 MPP's |
| Order No. | 8000109859 |
| Type | PV 118SXFXCXXV0O1TXPX15LWW |
| GTIN (EAN) | 4099986666320 |
| Qty. | 1 items |
| Depth | 300 mm |
| Depth (inches) | 11.811 inch |
| Height | 536 mm |
| Height (inches) | 21.102 inch |
| Width | 747 mm |
| Width (inches) | 29.409 inch |
| Net weight | 13,420.559 g |
| Ambient temperature | -20ºC to +45ºC |
| Operating temperature | -20ºC to +45ºC |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant |
| Earthing | Directly at the VPU |
| Rated voltage | 1,500 V |

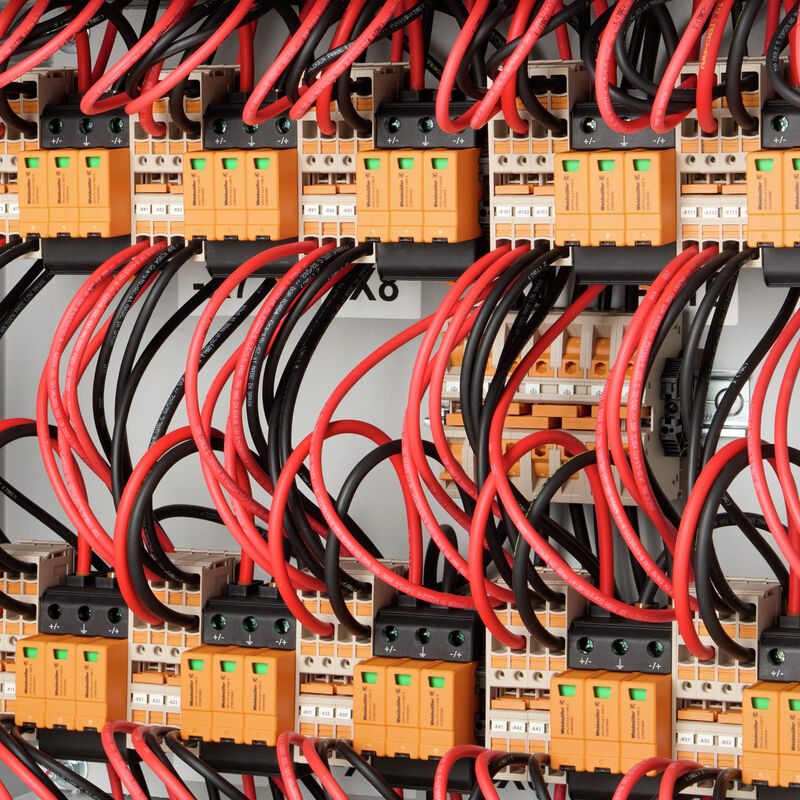

| Surge protection DC side | 1500 V type II with remote contact |
| Amount of maximum power points | 9 |
| Connection DC input cable (+) | WM4C plug-in connector |
| Connection DC input cable (-) | WM4C plug-in connector |
| Connection type, DC input cable | WM4C plug-in connector |
| Functional earth connector |
|
| Fuse | Neither fuse cartridge nor holder |
| Fuse type | Neither fuse cartridge nor holder |
| Number of conduit inlets | 1 |
| Number of DC inputs | 18 |
| Number of inputs | 18 |
| Connection type, DC output cable | WM4C plug-in connector |
| DC output cable connection | WM4C plug-in connector |
| Number of DC outputs | 18 |
| Monitoring function | Non monitored |
| Protection degree | IP65 |
| Type of mounting | Wall mounting |
| Standards |
IEC 61439-2 ed 3.0
EN 61439-2:2020 |
| Time interval | 5 years |
| Rated DC voltage | 1,500 V |
| Connection type string | Plug WM4C |
| Cover | Hinged door |
| Enclosure attachment | Fixing lugs |
| Impact resistance | IK10 in accordance with IEC 62262 |
| Insulating material | Polyester glass-fibre reinforced, Polycarbonate |
| Type of mounting | Wall mounting |
| Installation location | Protected outdoor area (>1 km from sea) |
| Protection degree | IP65 |
| Standards |
IEC 61439-2 ed 3.0
EN 61439-2:2020 |
| Requirements class | Type II |
| Short-circuit curent ISCPV | 18 A |
| Standards |
IEC 61439-2 ed 3.0
EN 61439-2:2020 |
| Surge protection DC side | 1500 V type II with remote contact |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity Combiner Boxes non monitored](https://mdcop.weidmueller.com/mediadelivery/asset/900_216553) |
| Engineering Data | [Thermal Report PV 118SXFXCXXV0O1TXPX15LWW](https://mdcop.weidmueller.com/mediadelivery/asset/900_318650) |
| Technical Documentation |
[Electrical Drawing PV 118SXFXCXXV0O1TXPX15LWW](https://mdcop.weidmueller.com/mediadelivery/asset/900_318638)
[Mechanical Drawing PV 118SXFXCXXV0O1TXPX15LWW](https://mdcop.weidmueller.com/mediadelivery/asset/900_318644) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002928 |
| ETIM 7.0 | EC002928 |
| ETIM 8.0 | EC003857 |
| ETIM 9.0 | EC003857 |
| ECLASS 9.0 | 22-57-92-03 |
| ECLASS 9.1 | 22-57-02-90 |
| ECLASS 10.0 | 22-57-02-90 |
| ECLASS 11.0 | 22-57-02-92 |
| ECLASS 12.0 | 22-57-02-92 |
| ECLASS 13.0 | 22-57-02-92 |
| ECLASS 14.0 | 22-57-02-92 |
| Approvals |  |
| ROHS | Conform |
