Properties

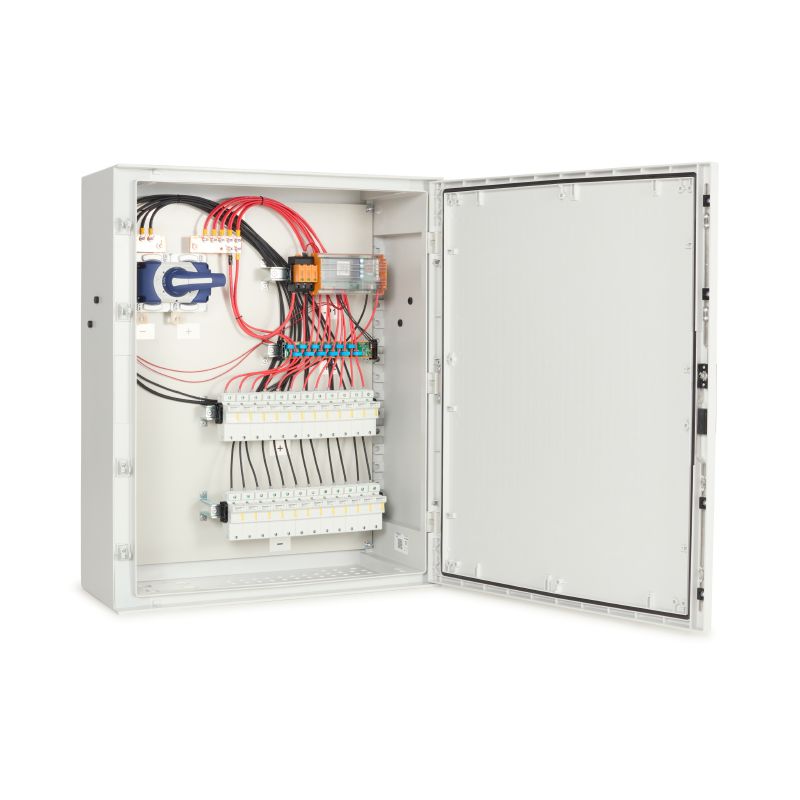

| Version | Photovoltaics, Assembled enclosure, Combiner Box, 1500 V, With fuse holder, Surge protection II, Cable gland, for wall mounting, Switch disconnector, Portrait, Current monitoring, Voltage monitoring, Temperature monitoring, Central Inverter |
| Order No. | 8000101214 |
| Type | PV 212S0F3CXXV0O0TAPA15PWW |
| GTIN (EAN) | 4099986025325 |
| Qty. | 1 items |
| Depth | 350 mm |
| Depth (inches) | 13.78 inch |
| Height | 1,056 mm |
| Height (inches) | 41.575 inch |
| Width | 852 mm |
| Width (inches) | 33.543 inch |
| Net weight | 38,247.455 g |
| Ambient temperature | -20ºC to +45 ºC |
| Operating temperature | -20ºC to +45 ºC |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1d28ada4-1634-4382-8635-45f6353a6574 |
| Earthing | Directly at the VPU |
| Rated voltage | 1,500 V |
| Surge protection DC side | 1500 V type II |
| Switching capacity | 400 A (DC21B 1500 V) |
| Cartridge fuse | 22 x 58 mm |
| Connection DC input cable (+) | Screw connection |
| Connection DC input cable (-) | Screw connection |
| Connection type, DC input cable | Cable gland |
| DC Input + & - |
|
| Functional earth connector |
|
| Fuse |
30 A
35 A 40 A 50 A 60 A 70 A 75 A |
| Fuse | Empty fuse holder |
| Fuse type | Empty fuse holder |
| Fuse-link standard | gPV (EN 60269-6) |
| Fused poles of string | +/- |
| Number of DC inputs | 12 |
| Position of the fuses | positive and negative inputs |
| DC Output + & - |
|
| DC output cable connection | M12 bolt and nut connection |
| Load circuit breaker with auxiliary contact | No |
| Number of DC outputs | 2 |
| Current monitoring | Solar SMS |
| Monitoring function |
Solar SMS
Output voltage, current, temperature |
| Supply | Self-powered |
| Temperature monitoring | Solar SMS |
| Voltage monitoring | Solar SMS |
| Protection degree | IP65 |
| Type of mounting | Wall mounting |
| Standards |
EN 61439-2:2011
IEC 61439-2 ed 3.0 |
| Time interval | 5 years |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity Combiner Boxes monitored](https://mdcop.weidmueller.com/mediadelivery/asset/900_216552) |
| Engineering Data |
[Electrical Drawing](https://mdcop.weidmueller.com/mediadelivery/asset/900_310961)
[Thermal Report](https://mdcop.weidmueller.com/mediadelivery/asset/900_310990) |
| Technical Documentation | [Mechanical Drawing](https://mdcop.weidmueller.com/mediadelivery/asset/900_310931) |
| User Documentation | [User Manual PV DC Combiner Boxes](https://mdcop.weidmueller.com/mediadelivery/asset/900_207163) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002928 |
| ETIM 7.0 | EC002928 |
| ETIM 8.0 | EC003857 |
| ETIM 9.0 | EC003857 |
| ECLASS 9.0 | 22-57-92-03 |
| ECLASS 9.1 | 22-57-02-90 |
| ECLASS 10.0 | 22-57-02-90 |
| ECLASS 11.0 | 22-57-02-92 |
| ECLASS 12.0 | 22-57-02-92 |
| ECLASS 13.0 | 22-57-02-92 |
| ECLASS 14.0 | 22-57-02-92 |
| Approvals |  |
| ROHS | Conform |
