Properties

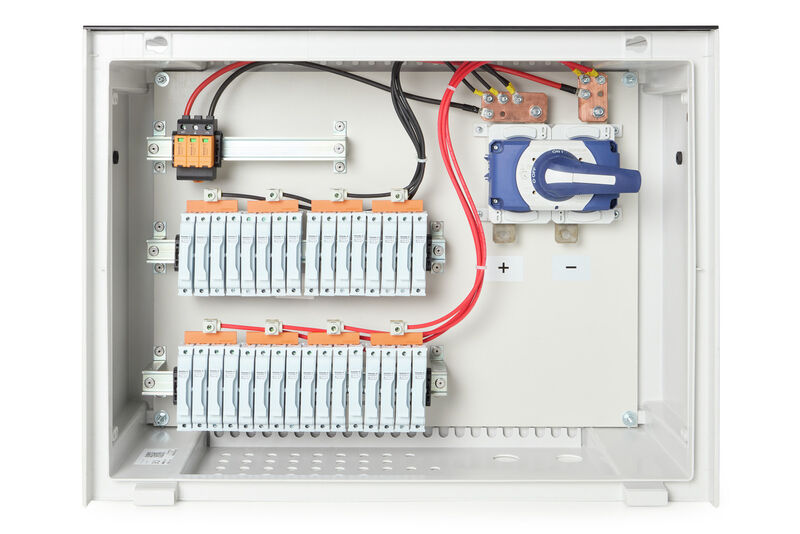

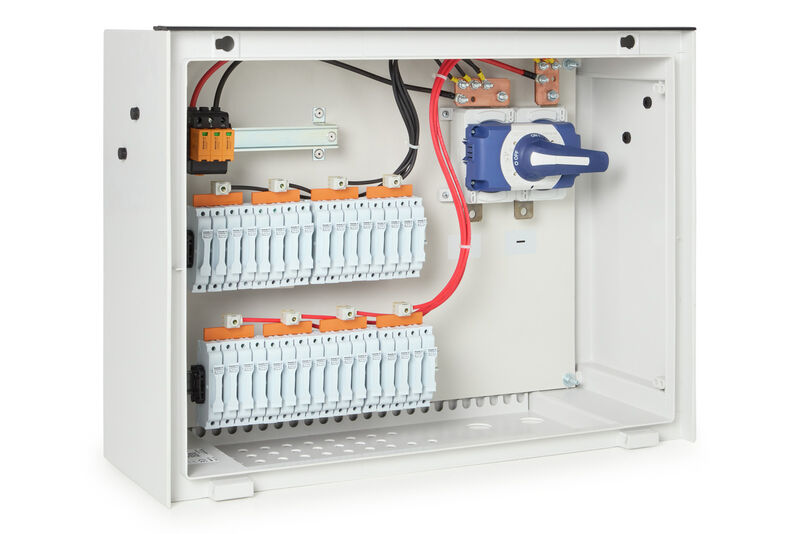

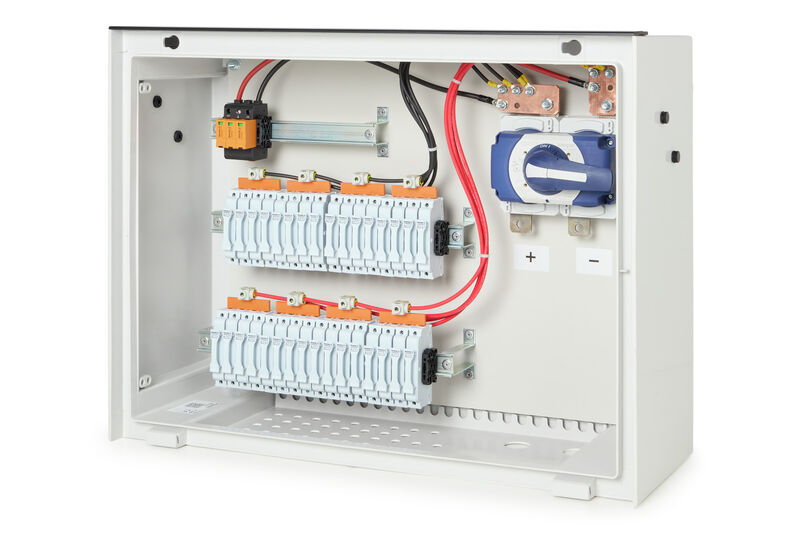

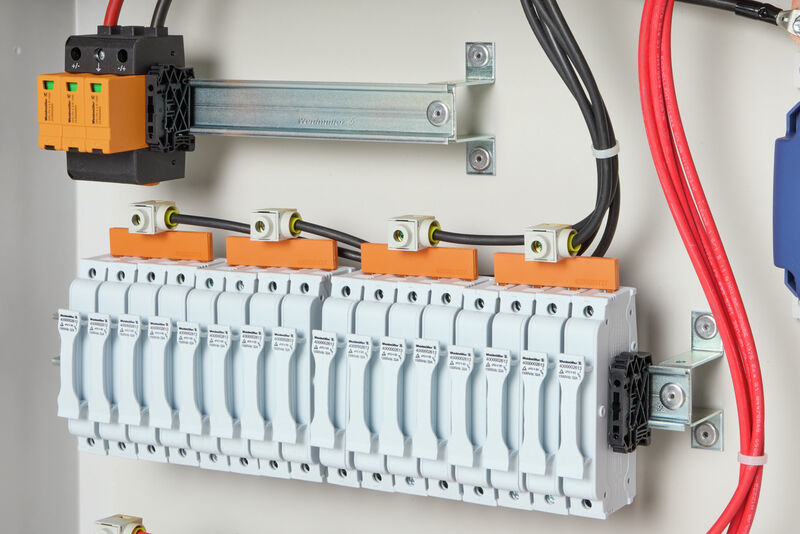

| Version | Photovoltaics, Assembled enclosure, Combiner Box, 1500 V, With fuse holder, Surge protection II, Cable gland, for wall mounting, Switch disconnector, Landscape, Central Inverter |
| Order No. | 8000078885 |
| Type | PV 216S0F4CXXV0O0TXPX15LWW |
| GTIN (EAN) | 4064675468943 |
| Qty. | 1 items |
| Depth | 300 mm |
| Depth (inches) | 11.811 inch |
| Height | 536 mm |
| Height (inches) | 21.102 inch |
| Width | 747 mm |
| Width (inches) | 29.409 inch |
| Net weight | 9,205.557 g |
| Ambient temperature | -20ºC to +45 ºC |
| Operating temperature | -20ºC to +45 ºC |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Earthing | Directly at the VPU |
| Rated voltage | 1,500 V |
| Surge protection DC side | 1500 V type II without remote contact |
| Switching capacity | 400 A (DC21B 1500 V) |
| Cartridge fuse | 10 x 85 mm |
| Connection DC input cable (+) | Screw connection |
| Connection DC input cable (-) | M8 bolt and nut connection |
| Connection type, DC input cable | Cable gland |
| DC Input + & - |
|
| Functional earth connector |
|
| Fuse |
15 A
16 A 20 A 25 A 30 A 32 A |
| Fuse | Empty fuse holder |
| Fuse type | Empty fuse holder |
| Fuse-link standard | gPV (EN 60269-6) |
| Fused poles of string | +/- |
| Number of conduit inlets | 35 |
| Number of DC inputs | 16 |
| Position of the fuses | only in positive inputs |
| DC Output + & - |
|
| DC output cable connection | M10 bolt and nut connection |
| Load circuit breaker with auxiliary contact | No |
| Number of DC outputs | 2 |
| Monitoring function | Non monitored |
| Protection degree | IP65 |
| Type of mounting | Wall mounting |
| Standards |
EN 61439-2:2011
IEC 61439-2 ed 3.0 |
| Time interval | 5 years |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity Combiner Boxes non monitored](https://mdcop.weidmueller.com/mediadelivery/asset/900_216553) |
| Engineering Data |
[Electrical Drawing](https://mdcop.weidmueller.com/mediadelivery/asset/900_310950)
[Thermal Report](https://mdcop.weidmueller.com/mediadelivery/asset/900_310979) [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_311024) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000078885) |
| Technical Documentation | [Mechanical Drawing](https://mdcop.weidmueller.com/mediadelivery/asset/900_310920) |
| User Documentation | [User Manual PV DC Combiner Boxes](https://mdcop.weidmueller.com/mediadelivery/asset/900_207163) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002928 |
| ETIM 7.0 | EC002928 |
| ETIM 8.0 | EC003857 |
| ETIM 9.0 | EC003857 |
| ECLASS 9.0 | 22-57-92-03 |
| ECLASS 9.1 | 22-57-02-90 |
| ECLASS 10.0 | 22-57-02-90 |
| ECLASS 11.0 | 22-57-02-92 |
| ECLASS 12.0 | 22-57-02-92 |
| ECLASS 13.0 | 22-57-02-92 |
| ECLASS 14.0 | 22-57-02-92 |
| Approvals |  |
| ROHS | Conform |
