PVC DC 2I 2O 10MPP RD WM4 11

Download data sheet

PVC DC 2I 2O 10MPP RD WM4 11

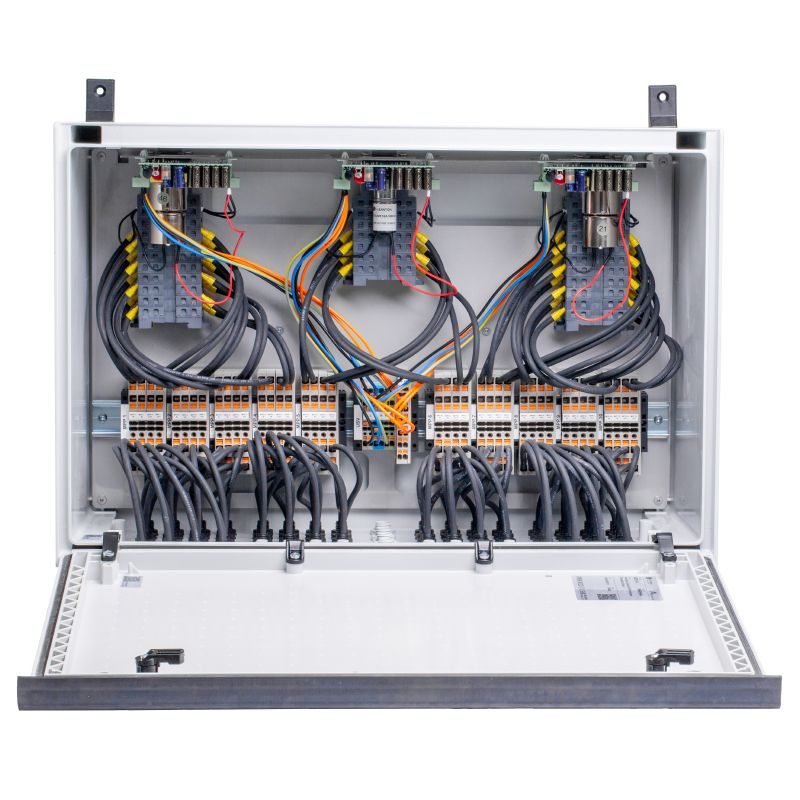

Photovoltaics, Combiner Box, Fireman's switch, 10 MPP's, 2 Inputs / 2 Outputs per MPP, Remote disconnector, WM4C, 1100 V

Item No. 8000130052

Properties

General ordering data

Version	Photovoltaics, Combiner Box, Fireman's switch, 10 MPP's, 2 Inputs / 2 Outputs per MPP, Remote disconnector, WM4C, 1100 V
Order No.	8000130052
Type	PVC DC 2I 2O 10MPP RD WM4 11
GTIN (EAN)	4099987124997
Qty.	1 items

Dimensions and weights

Depth	255 mm
Depth (inches)	10.039 inch
Height	485 mm
Height (inches)	19.094 inch
Width	600 mm
Width (inches)	23.622 inch
Net weight	16,880 g

Ambient temperature	-20 °C...+50 °C
Humidity	5 - 90 %, no condensation

Time interval

5 years

Electrical characteristics

Current per Maximum Power Point, max.	41 A
Rated DC current per connection	Current per string, max.: 35 A
Rated short-term current resistance	Rated current: 51.25 A
Rated DC voltage	1,100 V

Connection type string	Plug WM4C
Cover	Hinged door
Enclosure attachment	Via mounting foots
Impact resistance	IK08 in accordance with IEC 62262
Insulating material	Polyester glass-fibre reinforced, Polycarbonate
Protection class	II
Type of mounting	Wall mounting

Installation location	Protected outdoor area (Land and Sea)
Protection degree	IP65
Standards	EN 61439-2 OVE-Directive R 11-1:2022-05-01

Amount of maximum power points	10
DC Input + & -	Wire connection: Type of connection: WM4C plug-in connector Wire cross-section, min.: 4 mm² Wire cross-section, max.: 6 mm²
Max. number of DC inputs	per Maximum Power Point 2 inputs connected in parallel

DC Output + & -	Wire connection: Type of connection: WM4C plug-in connector Wire cross-section, min.: 4 mm² Wire cross-section, max.: 6 mm²
Max. number of DC outputs	per Maximum Power Point 2 outputs connected in parallel

Remote disconnector

Automatic reclosing after voltage drop	Yes
Number of operating cycles	10000
Control voltage	100 V AC - 250 V AC 50/60Hz
Remote disconnector auxiliary contact	Cable entry: Number of cable entries: 1 Wire connection: Type of connection: PUSH IN with actuator Flexible, max. H05(07) V-K: 2.5 mm² w. wire end ferrule, DIN 46228 pt 1, max.: 2.5 mm²
Remote disconnector control contact	Cable entry: Number of cable entries: 1 Wire connection: Type of connection: PUSH IN with actuator Flexible, max. H05(07) V-K: 2.5 mm² w. wire end ferrule, DIN 46228 pt 1, max.: 2.5 mm²
Type of power circuit disconnection	Under voltage tripping or manual switch operation
Turn-off time	1.5 s

Surge protection DC side

Standards	EN 61439-2 OVE-Directive R 11-1:2022-05-01
Surge protection DC side	No surge protection

Approval/Certificate/Document of Conformity	[Declaration of conformity for PV fireman switches](https://mdcop.weidmueller.com/mediadelivery/asset/900_307706)
Technical Documentation	[Schematic PVC DC 2I 2O 10MPP RD WM4 11](https://mdcop.weidmueller.com/mediadelivery/asset/900_319094)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002928
ETIM 7.0	EC002928
ETIM 8.0	EC003857
ETIM 9.0	EC003857
ECLASS 9.0	22-57-92-03
ECLASS 9.1	22-57-02-90
ECLASS 10.0	22-57-02-90
ECLASS 11.0	22-57-02-92
ECLASS 12.0	22-57-02-92
ECLASS 13.0	22-57-02-92
ECLASS 14.0	22-57-02-92
