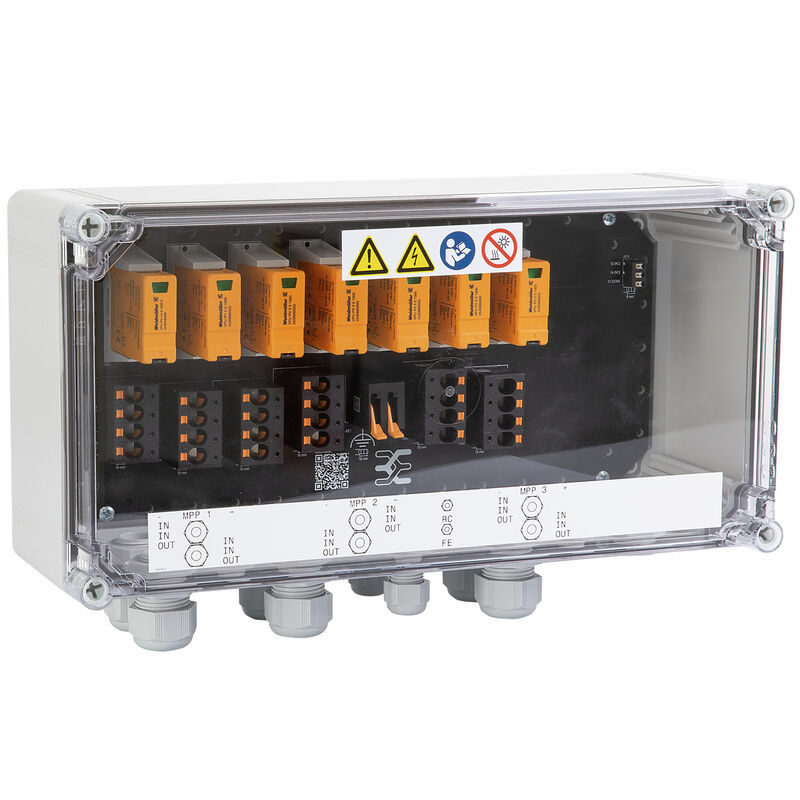

Fotovoltaico, Combinador, PV Next, 3 MPP, 2 entradas / 2 salidas por MPP, Protección contra sobretensiones I/II, Prensaestopas, 1100 V

Ürün No. 2975540000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 12 aksesuarıdır 3 Yedek parçalar 1 İlgili ürünler 63
Approvals Datos generales para pedido Dimensions and weights Temperaturas Conformidad medioambiental del producto Included in delivery Guarantee Electrical characteristics Enclosure General data Inputs Outputs Surge protection DC side DC load break switch Indicación importante Classifications Bases de licitación

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

Datos generales para pedido

Version
Fotovoltaico, Combinador, PV Next, 3 MPP, 2 entradas / 2 salidas por MPP, Protección contra sobretensiones I/II, Prensaestopas, 1100 V
Order No.
2975540000
Type
PVN DC 2I 2O 3MPP SPD1R CG 11
GTIN (EAN)
4099986823136
Qty.
1 items

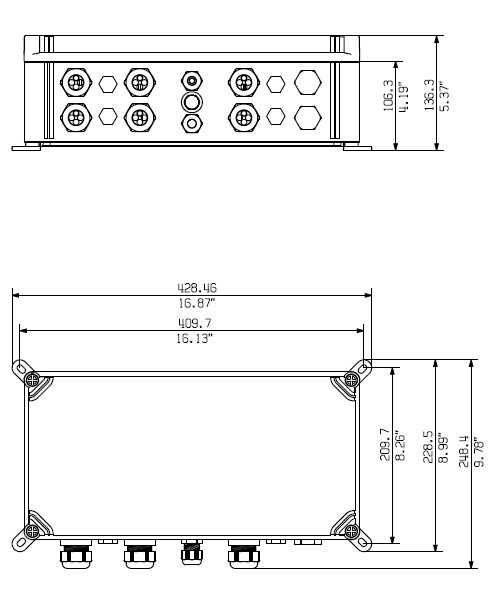

Dimensions and weights

Depth
132 mm
Depth (inches)
5,197 inch
Height
235 mm
Height (inches)
9,252 inch
Width
400 mm
Width (inches)
15,748 inch
Poids net
3.224 g

Temperaturas

Ambient temperature
-40 °C…50 °C
Humidité
5...95 % (sans condensation)

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme
REACH SVHC
Lead 7439-92-1
SCIP
bdab5698-6a20-4370-8e28-8810d882d01a

Included in delivery

Included accessories
  • Article:
    Mounting foot
  • Quantity:
    4
  • Article:
    Sealing plug
  • Quantity:
    7

Guarantee

Time interval
5 years

Electrical characteristics

Current per Maximum Power Point, max.
53,6 A
Rated DC current per connection
  • Current per string, max.:
    53,6 A
Rated DC voltage
1.100 V
Rated short-term current resistance
  • Rated current:
    67 A

Enclosure

Connection type string
Internal terminal (with cable gland feed-through)
Cover
removeable
Enclosure attachment
Via mounting foots
Impact resistance
IK08 in accordance with IEC 62208
IK10 in accordance with IEC 62262
Insulating material
Polyester glass-fibre reinforced, Polycarbonate
Polycarbonate
Protection class
II
Type of mounting
Wall mounting

General data

Installation location
Protected outdoor area (Land and Sea)
Protection degree
IP65
Standards
EN 61439-2
EN 61643-31

Inputs

Amount of maximum power points (MPP)
3
DC Input + & -
  • Wire connection:
    • Typ připojení:
      PUSH IN with actuator
    • Wire cross-section, min.:
      2,5 mm²
    • Leiteranschlussquerschnitt, max.:
      25 mm²

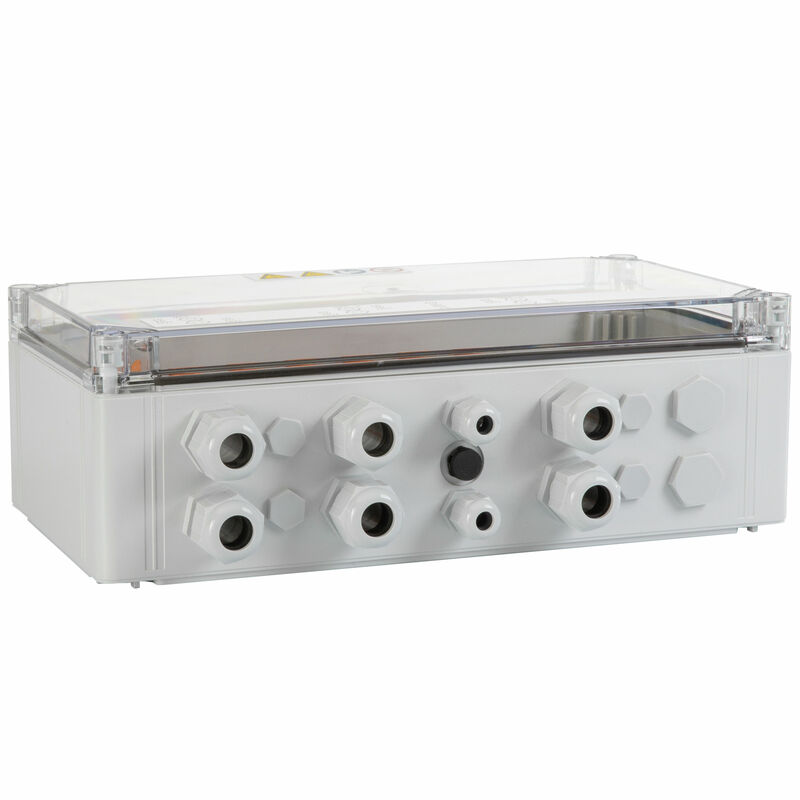

  • Cable entry:
    • Number of cable entries:
      18
    • Cable diameter, min.:
      5 mm
    • Cable diameter, max.:
      16 mm
Functional earth connector
  • Cable entry:
    • Number of cable entries:
      2
  • Wire connection:
    • Type of connection:
      Screw connection
    • Flexible, max. H05(07) V-K:
      25 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      16 mm²
Fuse type
Neither fuse cartridge nor holder
Fuses
No
Max. number of DC inputs
per Maximum Power Point 2 inputs connected in parallel
Number of conduit inlets
6
Number of string inputs per MPP
≤ 2
Surge protection auxiliary contact
  • Cable entry:
    • Number of cable entries:
      2
  • Wire connection:
    • Type of connection:
      Tension clamp connection with actuator
    • Flexible, max. H05(07) V-K:
      1,5 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      1,5 mm²
Numero di ingressi
2

Outputs

DC Output + & -
  • Wire connection:
    • Csatlakozás típusa:
      PUSH IN con attuatore
    • Sezione del conduttore, min.:
      2,5 mm²
    • 와이어 단면, 최대:
      16 mm²
Max. number of DC outputs
per Maximum Power Point 2 outputs connected in parallel

Surge protection DC side

Discharge current In (8/20 µs)
20 kA
Discharge current, max. (8/20 µs)
40 kA
Lightning test current Iimp (10/350 µs)
6.25 kA
Maximum continuous operating voltage DC UCPV mode +/-, -/PE, +/PE
1.100 V
Protection level Up (+/- , -/PE , +/PE)
≤ 3.8 kV
Protection level Up (+/-)
≤ 3.8 kV
Protection level Up (+/PE)
≤ 3.8 kV
Protection level Up (-/PE)
≤ 3.8 kV
PV system voltage, max. Ucpv
1.100 V
Requirements class
Type I/II
Short-circuit curent ISCPV
11.000 A
Standards
EN 61439-2
EN 61643-31
Standby power consumption PC
<0.2 W
Surge protection DC side
1000 V type I + II
Total discharge current Itotal ( 8/20µs)
50 kA
Total discharge current Itotal (10/350µs)
12,5 kA

DC load break switch

Switch disconnector execution
no switch
Voltage type
DC

Indicación importante

Product information
El número SCIP se asignó debido a un contenido de plomo de más del 0,1 % del peso neto.

Instrucciones de uso seguro según ECHA:
la identificación de la sustancia nociva es suficiente para permitir un uso seguro del artículo durante todo su ciclo de vida, incluida la fase de vida útil, desmontaje y reciclado

Classifications

ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92

Bases de licitación

Especificación larga

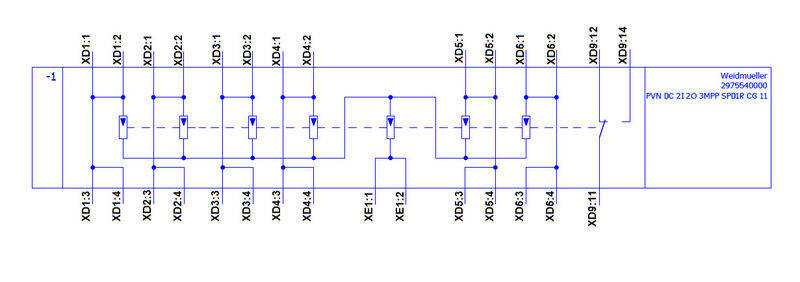

Combiner box for inverters with 3 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.

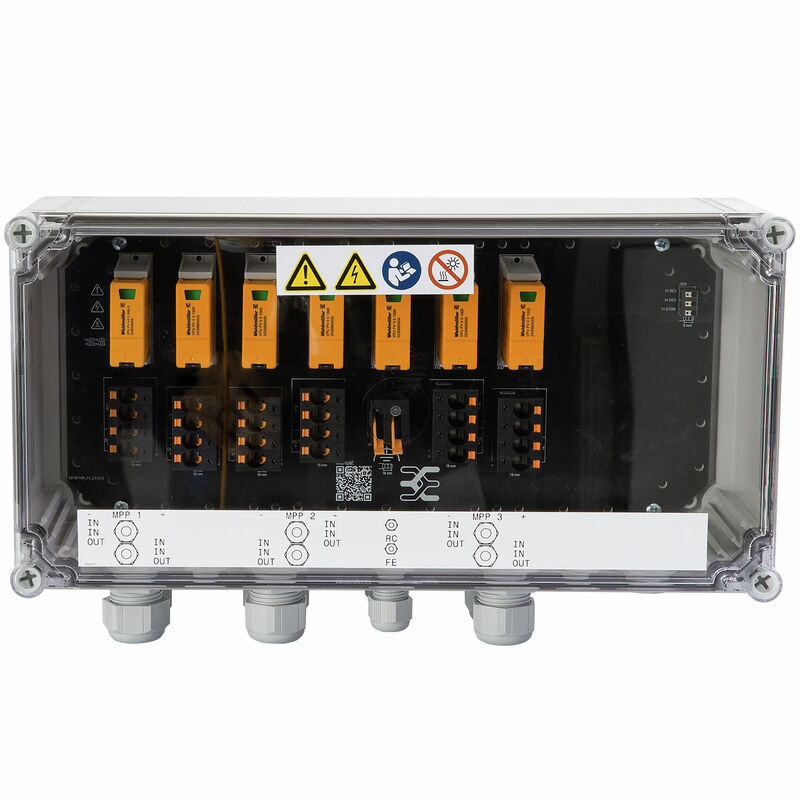

MPP1:
2 inputs, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.
1 output, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.

MPP2 to 3:
identical to MPP1

Max. string voltage Uoc: 1100 VDC
1 class/type I + II combined arrester with signal contact
Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²
Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: ≥ 16 mm²
Protection class: IP65
All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 235x400x132 mm

Approval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
