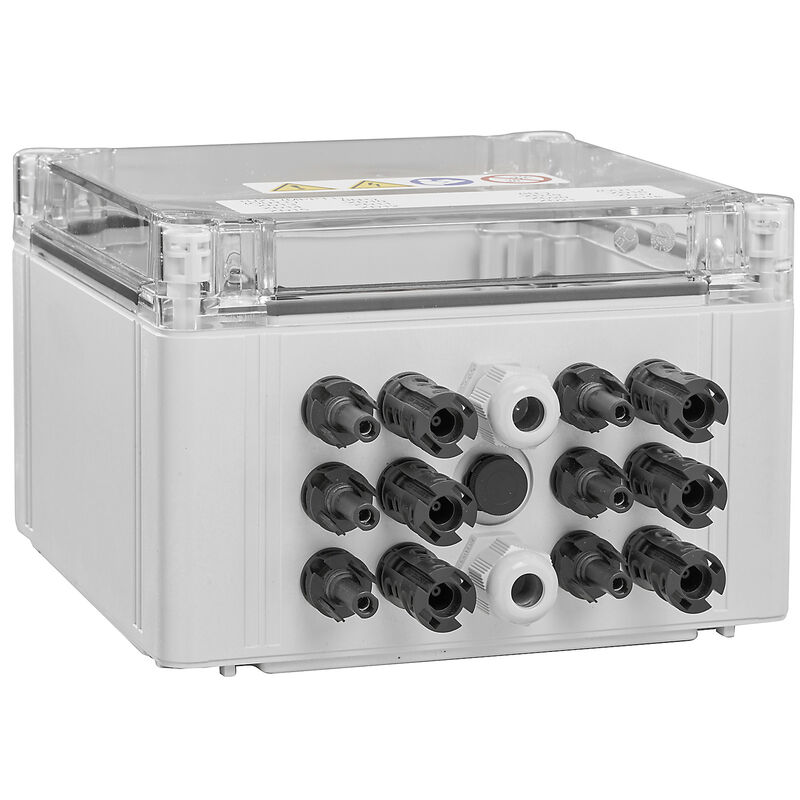

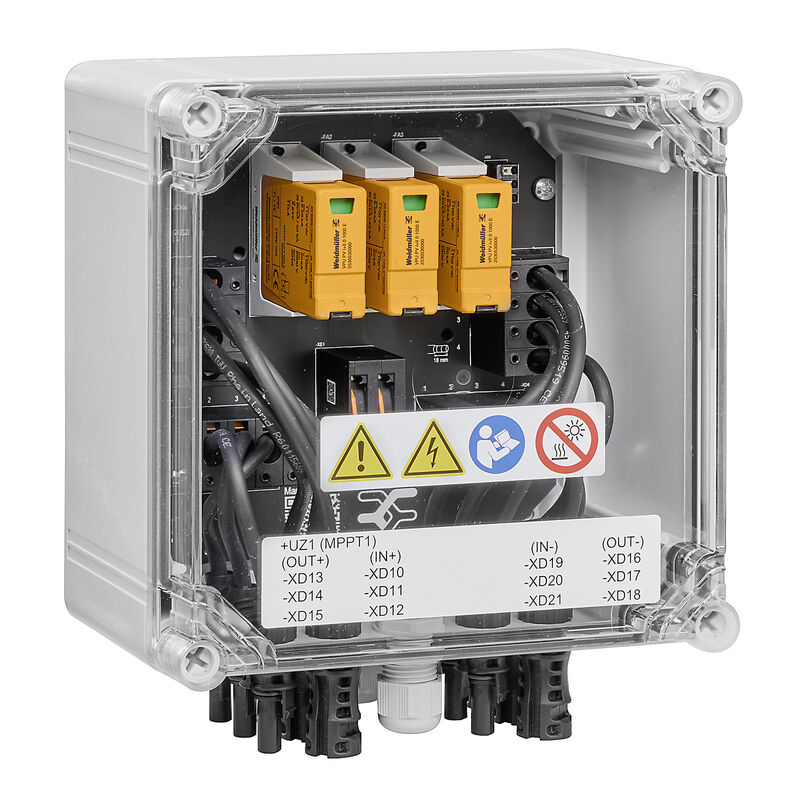

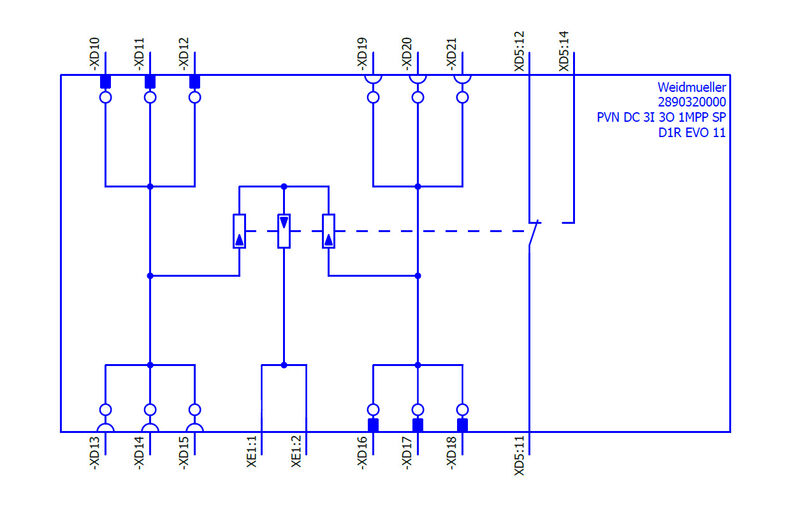

Photovoltaics, Combiner Box, PV Next, 1100 V, 1 MPP, 3 Inputs / 3 Outputs per MPP, Surge protection I / II, MC4-Evo 2

Item No. 2890320000
Download data sheet Product Downloads Engineering Support
Accessories 10 Is accessory of 2 Spare parts 1 Related products 55
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Included in delivery Guarantee Electrical characteristics Enclosure General data Inputs Outputs Surge protection DC side DC load break switch Important note Classifications Tender specification sheets

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Photovoltaics, Combiner Box, PV Next, 1100 V, 1 MPP, 3 Inputs / 3 Outputs per MPP, Surge protection I / II, MC4-Evo 2
Order No.
2890320000
Type
PVN DC 3I 3O 1MPP SPD1R EVO 11
GTIN (EAN)
4064675877967
Qty.
1 items

Dimensions and weights

Depth
132 mm
Depth (inches)
5.197 inch
Height
236 mm
Height (inches)
9.291 inch
Width
200 mm
Width (inches)
7.874 inch
Net weight
1,886 g

Temperatures

Ambient temperature
-40 °C…50 °C
Humidity
5...95 %, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
bdab5698-6a20-4370-8e28-8810d882d01a

Included in delivery

Included accessories
  • Article:
    Mounting foot
  • Quantity:
    4

Guarantee

Time interval
5 years

Electrical characteristics

Current per Maximum Power Point, max.
50.25 A
Rated DC current per connection
  • Current per string, max.:
    45 A
Rated DC voltage
1,100 V
Rated short-term current resistance
  • Rated current:
    67 A

Enclosure

Connection type string
Plug MC4-Evo 2
Enclosure attachment
Via mounting foots
Impact resistance
IK08 in accordance with IEC 62208
IK10 in accordance with IEC 62262
Insulating material
Polyester glass-fibre reinforced, Polycarbonate
Polycarbonate
Stupeň krytí
II
Type of mounting
Wall mounting

General data

Lugar de instalación
Protected outdoor area (Land and Sea)
Normas
EN 61643-31
Tipo de protección
IP65

Inputs

Amount of maximum power points (MPP)
1
DC Input + & -
  • Wire connection:
    • Type of connection:
      Stäubli MC4-Evo 2 connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      2.5 mm²
    • Wire cross-section, max.:
      16 mm²
Functional earth connector
  • Cable entry:
    • Number of cable entries:
      2
  • Wire connection:
    • Type of connection:
      Screw connection
    • Flexible, max. H05(07) V-K:
      25 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      16 mm²
Fuse type
Neither fuse cartridge nor holder
Fuses
No
Max. number of DC inputs
per Maximum Power Point 3 inputs connected in parallel
Number of conduit inlets
2
Number of string inputs per MPP
≤ 3
Surge protection auxiliary contact
  • Cable entry:
    • Number of cable entries:
      2
  • Wire connection:
    • Type of connection:
      Tension clamp connection with actuator
    • Flexible, max. H05(07) V-K:
      1.5 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      1.5 mm²
Number of inputs
3

Outputs

DC Output + & -
  • Wire connection:
    • Type of connection:
      Stäubli MC4-Evo 2 connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      2.5 mm²
    • Wire cross-section, max.:
      16 mm²
Max. number of DC outputs
per Maximum Power Point 3 outputs connected in parallel

Surge protection DC side

Courant de foudre de test Iimp (10/350 µs)
6.25 kA
Levezetőáram, max. (8/20 µs)
40 kA
Maximum continuous operating voltage DC UCPV mode +/-, -/PE, +/PE
1,100 V
Potenza assorbita in standby PC
<0.2 W
Protection level Up (+/-)
≤ 3.8 kV
Protection level Up (+/PE)
≤ 3.8 kV
Protection level Up (-/PE)
≤ 3.8 kV
Prąd wyładowczy In (8/20 µs)
20 kA
PV system voltage, max. Ucpv
1,100 V
Standards
EN 61643-31
Total discharge current Itotal ( 8/20µs)
50 kA
Total discharge current Itotal (10/350µs)
12.5 kA
U védelmi szintp (+/- , -/PE , +/PE)
≤ 3.8 kV
Класс требований
Type I/II
단락 전류 ISCPV
11,000 A

DC load break switch

Switch disconnector execution
no switch

Important note

Product information
The SCIP number was assigned due to a lead content of more than 0.1 % of the net weight.

Safe use instruction according to ECHA:
The identification of the hazardous substance is sufficient to allow safe use of the article throughout its life cycle, including the service life, disassembly and waste/recycling phase

Classifications

ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92

Tender specification sheets

Long specification

Combiner box for inverters with 1 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to EN 51543-32.

MPP1:
3 inputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063
3 outputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063

Max. string voltage Uoc: 1100V
1 class/type I + II combined arrester with signal contact
Connection of the signal contact via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm²
Connection of the functional earth via cable glands (8-12mmØ) Conductor cross-section: 16-25mm²
Protection class: IP65
All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 236x200x132 mm

Approval according to low voltage switchgear and controlgear IEC 61439-1:2011 and EN 61439-2:2011
