PWR276524L
D-SERIES PWR, Relay module, Number of contacts: 2, NO contact AgSnO, Rated control voltage: 24 V AC, Continuous current: 25 A, Screw connection, Test button available: No
Item No.
1219160000
Properties
| Version | D-SERIES PWR, Relay module, Number of contacts: 2, NO contact AgSnO, Rated control voltage: 24 V AC, Continuous current: 25 A, Screw connection, Test button available: No |
| Order No. | 1219160000 |

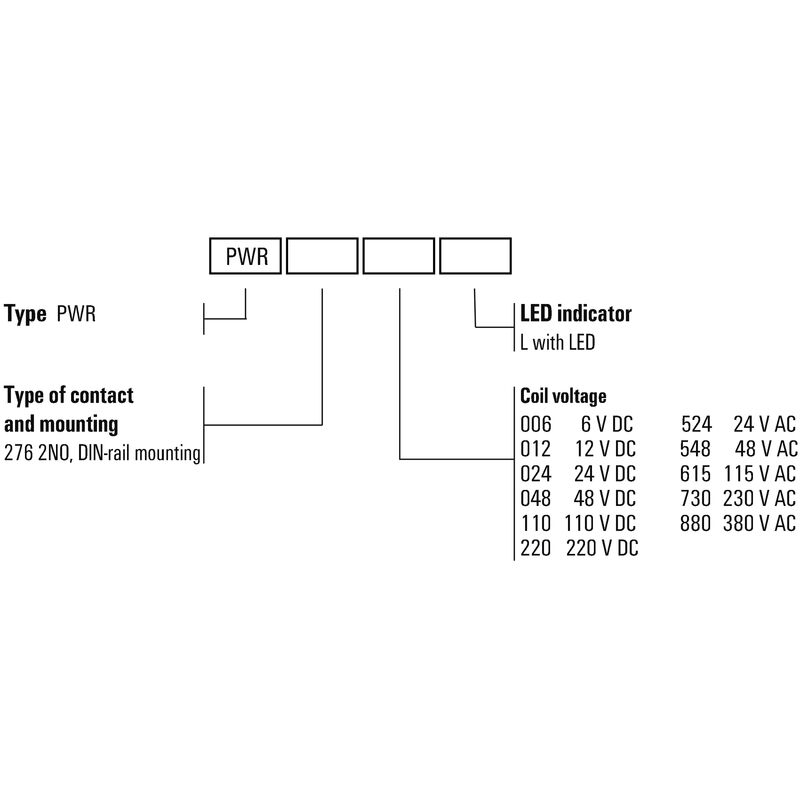

| Type | PWR276524L |
| GTIN (EAN) | 4032248999088 |
| Qty. | 10 items |
| Depth | 55 mm |
| Depth (inches) | 2.165 inch |
| Height | 34 mm |
| Height (inches) | 1.339 inch |
| Width | 50.5 mm |
| Width (inches) | 1.988 inch |
| Net weight | 120 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | -25 °C...55 °C |
| Humidity | 35...85 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1320de1d-41b1-4fbd-928a-2e0c6d3f9395 |
| Certificate No. (cURus) | E312083 |
| Rated control voltage | 24 V AC |
| Rated current AC | 87.3 mA |
| Power rating | 2.5 VA |
| Coil resistance | 275 Ω ± 10 % |
| Status indicator | Green LED |
| Rated switching voltage | 277 V AC |
| Continuous current | 25 A |
| Max. switching frequency at rated load | 0.1 Hz |
| Min. switching power | 100 mA @ 12 V |
| Inrush current | 120 A / 50 ms |

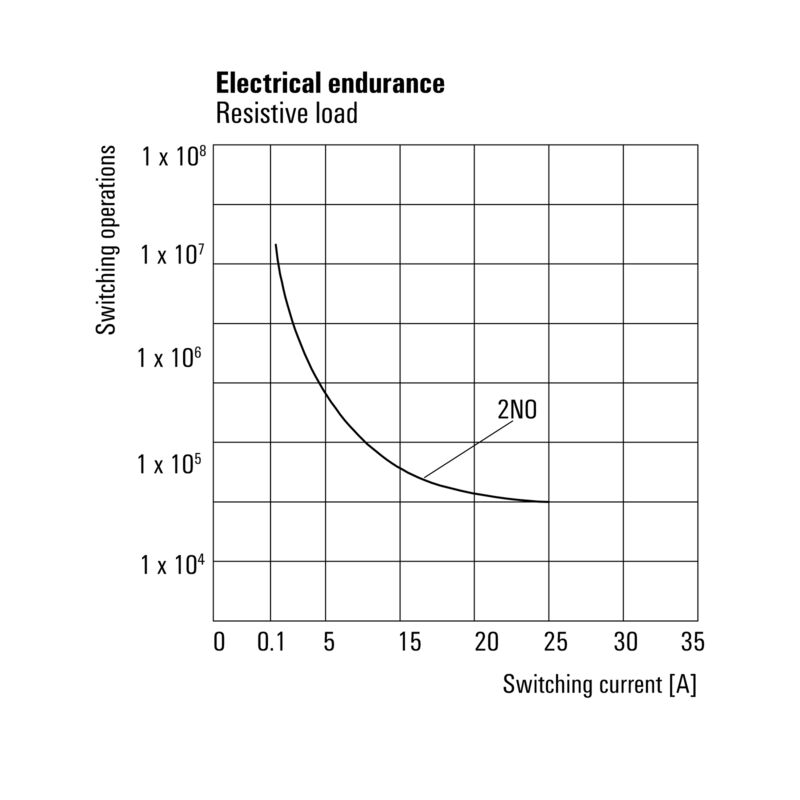

| AC switching capacity (resistive), max. | 6900 VA |

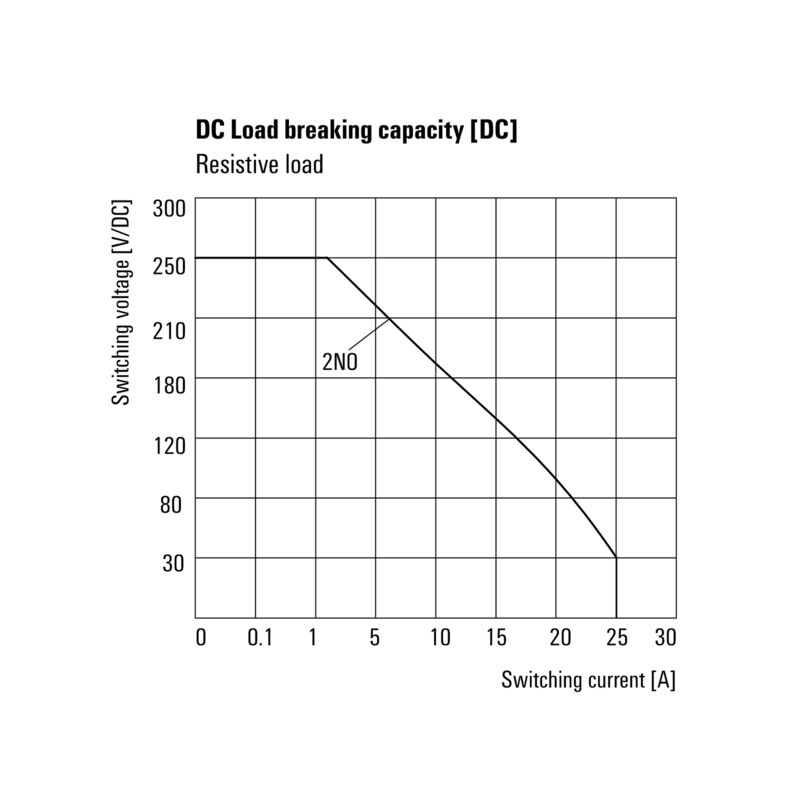

| DC switching capacity (resistive), max. | 600 W @ 24 V |
| Switch-on delay | < 30 ms |
| Switch-off delay | < 30 ms |

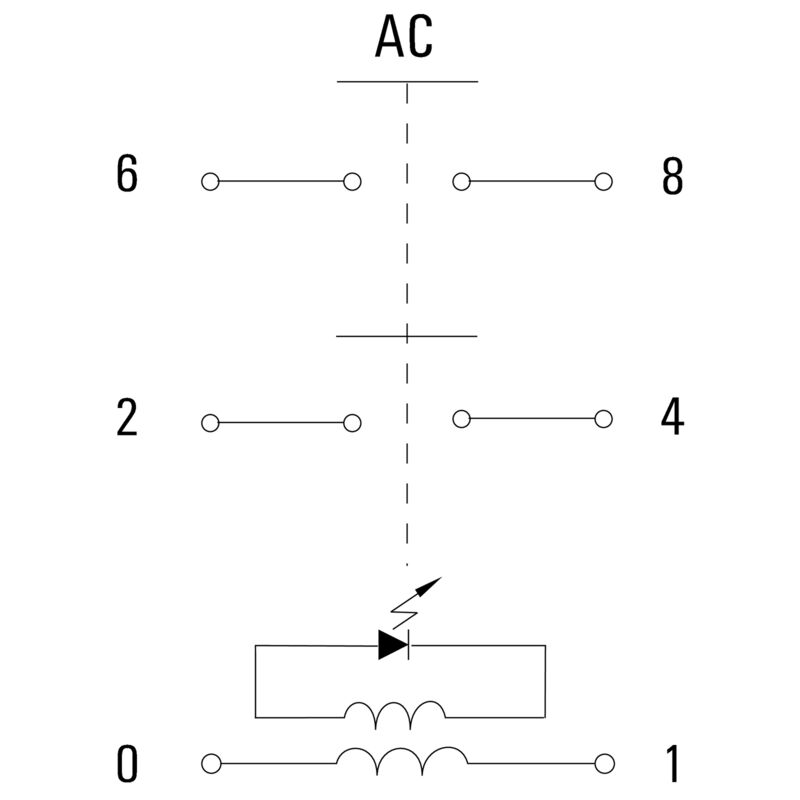

| Contact type | 2 NO contact (AgSnO) |
| Rail | TS 35 |
| Test button available | No |
| Mechanical switch position indicator | No |
| Colour | beige |
| UL94 flammability rating component |
|
| Rated voltage | 250 V |
| Pollution severity | 3 |
| Surge voltage category | III |
| Insulating material group | IIIa |
| Clearance and creepage distances for control side - load side | ≥ 5.5 mm |
| Dielectric strength for control side - load side | 4 kVeff / 1 min |
| Dielectric strength of neighbouring contacts | 2 kVeff / 1 min |
| Dielectric strength of open contact | 2 kVeff / 1 min |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Protection degree | IP10 |
| Certificate No. (cURus) | E312083 |
| Wire connection method (control side) | Screw connection |
| Min. rated connection clamping range (control side) | 0.5 mm² |
| Max. rated connection clamping range (control side) | 2.5 mm² |
| Min. tightening torque (control side) | 0.5 Nm |
| Max. tightening torque (control side) | 1.2 Nm |
| Blade size (control side) | Gr. PH2 |
| Wire connection method (load side) | Screw connection |
| Min. rated connection clamping range (load side) | 0.5 mm² |
| Max. rated connection clamping range (load side) | 4 mm² |
| Min. tightening torque (load side) | 0.5 Nm |
| Max. tightening torque (load side) | 1.2 Nm |
| Blade size (load side) | Gr. PH2 |
| Wire connection method | Screw connection |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35424) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_234148) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1219160000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1219160000) |
| User Documentation | [FL_D-SERIES_PWR2NO_LOAD_GUIDE](https://mdcop.weidmueller.com/mediadelivery/asset/900_306037) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| ECLASS 14.0 | 27-37-16-01 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E312083 |
