Properties

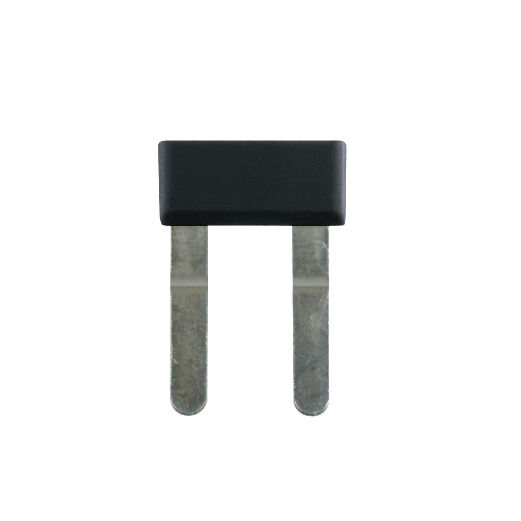

| Version | Cross-connector (terminal), Plugged, black, 41 A, Number of poles: 2, Pitch in mm (P): 8.00, Insulated: Yes, Width: 12 mm |
| Order No. | 1316670000 |
| Type | QB 2 RA8 IS SW |
| GTIN (EAN) | 4050118120011 |
| Qty. | 50 items |
| Depth | 3 mm |
| Depth (inches) | 0.118 inch |
| Height | 19.5 mm |
| Height (inches) | 0.768 inch |
| Width | 12 mm |
| Width (inches) | 0.472 inch |
| Net weight | 0.79 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | black |
| Version | Cross-connector |
| Explosion-tested version | No |
| Type of fixing | Plugged |
| Type of mounting | Plugged |
| Rated current, multi-pole | 41 A |
| Type | Cross-connector |
| Pitch in mm (P) | 8 mm |
| Number of poles | 2 |
| Rated current | 41 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74502) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1316670000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1316670000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
