RJ45C5 S1V 2.7N4N RL

PCB plug-in connector, RJ45 jacks, Cat. 5 , SMD solder connection, 180°, Shield tabs: none, 30...80 µ" Ni / ≥ 30 µ" Au , LED: No, Number of poles: 8, Tape

Item No. 1433900000

Properties

General ordering data

Version	PCB plug-in connector, RJ45 jacks, Cat. 5 , SMD solder connection, 180°, Shield tabs: none, 30...80 µ" Ni / ≥ 30 µ" Au , LED: No, Number of poles: 8, Tape
Order No.	1433900000
Type	RJ45C5 S1V 2.7N4N RL
GTIN (EAN)	4050118238587
Qty.	300 items
Packaging	Tape

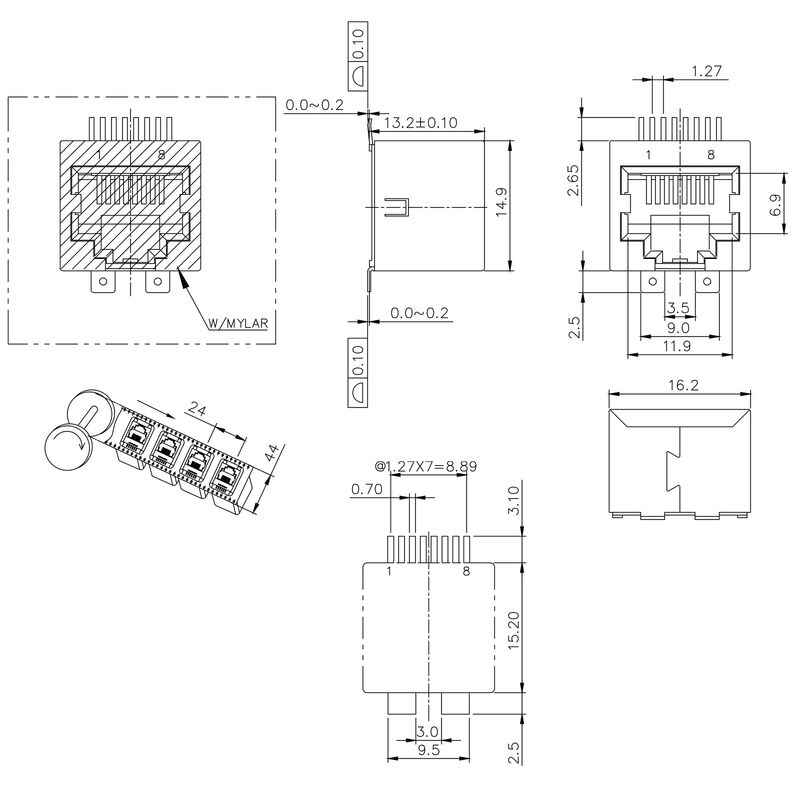

Dimensions and weights

Depth	20.05 mm
Depth (inches)	0.789 inch
Height	13.2 mm
Height (inches)	0.52 inch
Height of lowest version	13.2 mm
Width	16.1 mm
Width (inches)	0.634 inch
Net weight	3.467 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System specifications

Category	Cat. 5
Coplanarity:	100 µm
LED	No
Mounting onto the PCB	SMD solder connection
Number of poles	8
Number of solder pins per pole	1
Outgoing elbow	180°
Performance-Category	Cat. 5
Pitch in inches (P)	0.05 "
Pitch in mm (P)	1.27 mm
Plugging cycles	750
Product family	OMNIMATE Data - RJ45 modular jack
Protection degree	IP20
Shield surface	nickel-plated
Shield tabs	none
Shielding	Yes
Shielding material	Copper alloy
Solder pin dimensions	Octagonal
Solder pin length (l)	3.5 mm
Soldering process	Reflow soldering Manual soldering
Tolerance of solder pin position	± 0.1 mm
Type of connection	SMT solder connection
Wiring	8-core

Electrical properties

Dielectric strength, contact / contact	1000 V DC
Dielectric strength, contact / shield	1500 V DC
Insulation strength	≥ 500 MΩ
PoE / PoE+	conforming to IEEE 802.3at
Rated current	1.5 A
Rated voltage	125 V

Standards

Connector standard

IEC 60603-7-51

Material data

Insulating material	PA 9T
Colour	black
Colour chart (similar)	RAL 9011
Insulating material group	II
Comparative Tracking Index (CTI)	≥ 500
Insulation strength	≥ 500 MΩ
Moisture Level (MSL)	1
UL 94 flammability rating	V-0
Contact base material	Phosphorus bronze
Contact material	Cu-alloy
Contact surface	Gold over nickel
Layer structure of solder connection	30...80 µ" Ni / ≥ 30 µ" Sn
Layer structure of plug contact	30...80 µ" Ni / ≥ 30 µ" Au
Storage temperature, min.	-40 °C
Storage temperature, max.	85 °C
Operating temperature, min.	-40 °C
Operating temperature, max.	85 °C

Packing

Packaging	Tape
VPE length	353 mm
VPE width	347 mm
VPE height	128 mm
Tape reel diameter ∅ (A)	330 mm
Surface resistance	Rs = 10⁹ - 10¹² Ω

Downloads

Approval/Certificate/Document of Conformity	[Certificate of Compliance](https://mdcop.weidmueller.com/mediadelivery/asset/900_217537)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_99467)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1433900000)
User Documentation	[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065) [MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183)

Classifications

ETIM 6.0	EC002637
ETIM 7.0	EC002637
ETIM 8.0	EC002637
ETIM 9.0	EC002637
ECLASS 9.0	27-44-04-02
ECLASS 9.1	27-44-04-02
ECLASS 10.0	27-44-04-02
ECLASS 11.0	27-46-02-01
ECLASS 12.0	27-46-02-01
ECLASS 13.0	27-46-02-01
ECLASS 14.0	27-46-02-01

Approvals

ROHS

Conform
