RJ45M R1V 3.3N4Y/G TY
PCB plug-in connector, RJ45 jacks transformer, 10/100 MBit/s , THT/THR solder connection, 180°, Shield tabs: none, 30...80 µ" Ni / ≥ 30 µ" Au , LED: Yes, yellow, green, Number of poles: 8, Tray (manual assembly)
Properties
| Version | PCB plug-in connector, RJ45 jacks transformer, 10/100 MBit/s , THT/THR solder connection, 180°, Shield tabs: none, 30...80 µ" Ni / ≥ 30 µ" Au , LED: Yes, yellow, green, Number of poles: 8, Tray (manual assembly) |
| Order No. | 2461070000 |
| Type | RJ45M R1V 3.3N4Y/G TY |
| GTIN (EAN) | 4050118476071 |
| Qty. | 120 items |
| Packaging | Tray (manual assembly) |

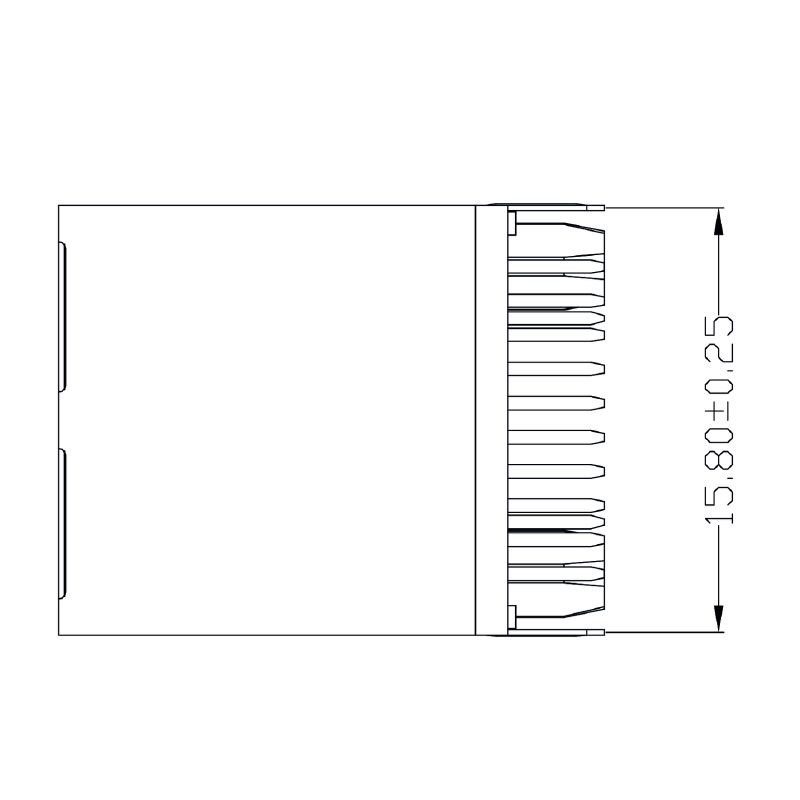

| Depth | 16.8 mm |
| Depth (inches) | 0.661 inch |
| Height | 20.3 mm |
| Height (inches) | 0.799 inch |
| Height of lowest version | 17 mm |
| Width | 16 mm |
| Width (inches) | 0.63 inch |
| Net weight | 3.658 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour of left LED | yellow |
| Colour of right LED | green |
| Forward current | 20 mA |
| Forward voltage, max. | 2.6 V |
| Forward voltage, min. | 1.8 V |
| LED | Yes |
| Mounting onto the PCB | THT/THR solder connection |
| Number of poles | 8 |
| Number of solder pins per pole | 1 |
| Outgoing elbow | 180° |
| Performance-Category | 10/100 MBit/s |
| Pitch in inches (P) | 0.05 " |
| Pitch in mm (P) | 1.27 mm |
| Plugging cycles | 750 |
| Product family | OMNIMATE Data - RJ45 transformer jack |
| Protection degree | IP20 |
| Shield surface | nickel-plated |
| Shield tabs | none |
| Shielding | Yes |
| Shielding material | Brass |

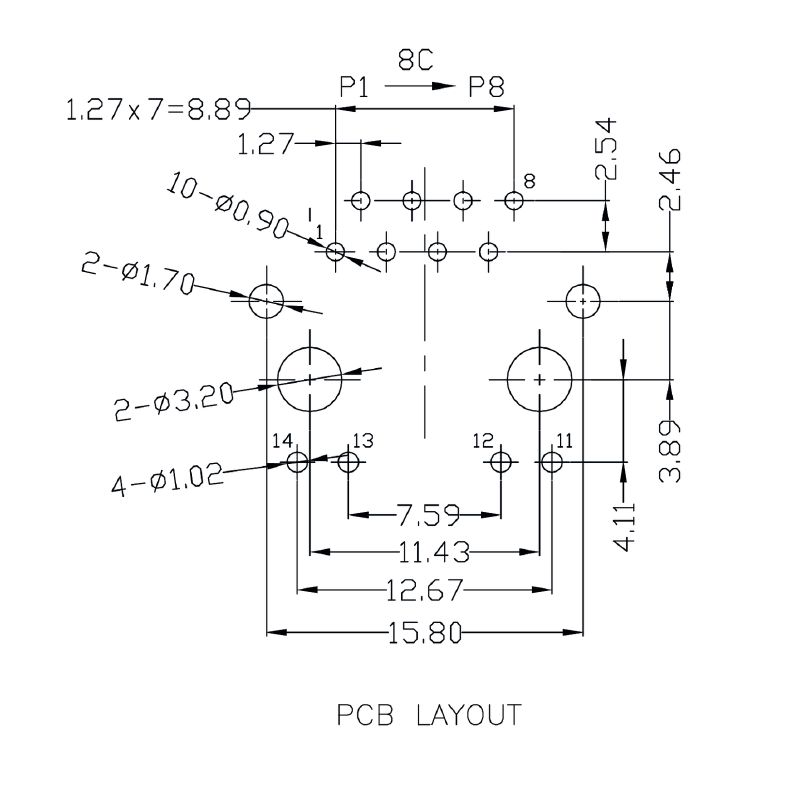

| Solder eyelet hole diameter (D) | 0.9 mm |
| Solder eyelet hole diameter tolerance (D) | ± 0.1 mm |
| Solder pin dimensions | Octagonal |

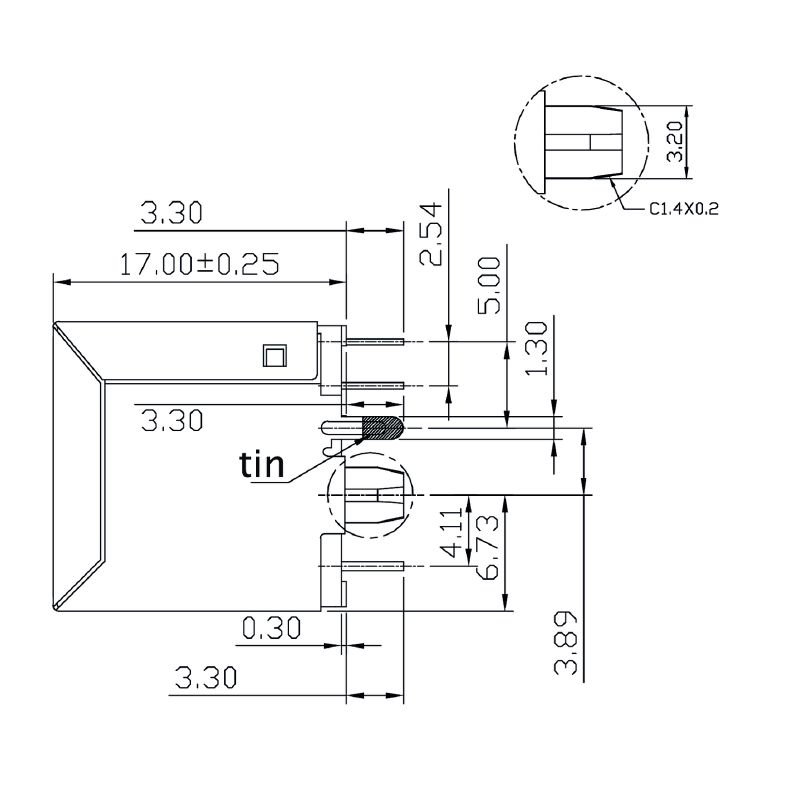

| Solder pin length (l) | 3.3 mm |
| Soldering process |
Reflow soldering
Manual soldering Wave soldering |
| Tolerance of solder pin position | ± 0.1 mm |
| Transmission rate | 10/100 MBit/s |
| Type of connection | Solder connection |
| Dielectric strength, contact / contact | 1000 V DC |
| Dielectric strength, contact / shield | 1500 V DC |
| Rated current | 1.5 A |
| Rated voltage | 125 V |
| Insulating material | PA 9T |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulating material group | II |
| Comparative Tracking Index (CTI) | ≥ 500 |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact base material | Phosphorus bronze |
| Contact material | Cu-alloy |
| Contact surface | Gold over nickel |
| Layer structure of plug contact | 30...80 µ" Ni / ≥ 30 µ" Au |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 85 °C |
| Packaging | Tray (manual assembly) |
| VPE length | 315 mm |
| VPE width | 190 mm |
| VPE height | 69 mm |
| Approval/Certificate/Document of Conformity | [Certificate of Compliance](https://mdcop.weidmueller.com/mediadelivery/asset/900_217537) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212071) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2461070000) |
| Product Change Notification |
[PCN](https://mdcop.weidmueller.com/mediadelivery/asset/900_90683)
[PCN](https://mdcop.weidmueller.com/mediadelivery/asset/900_90684) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E471884 |
