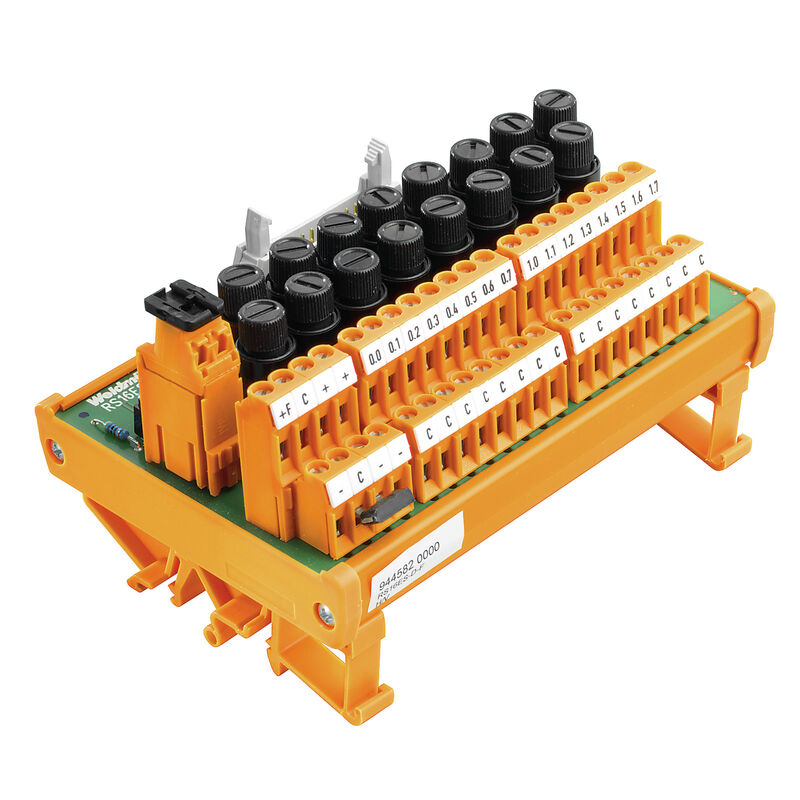

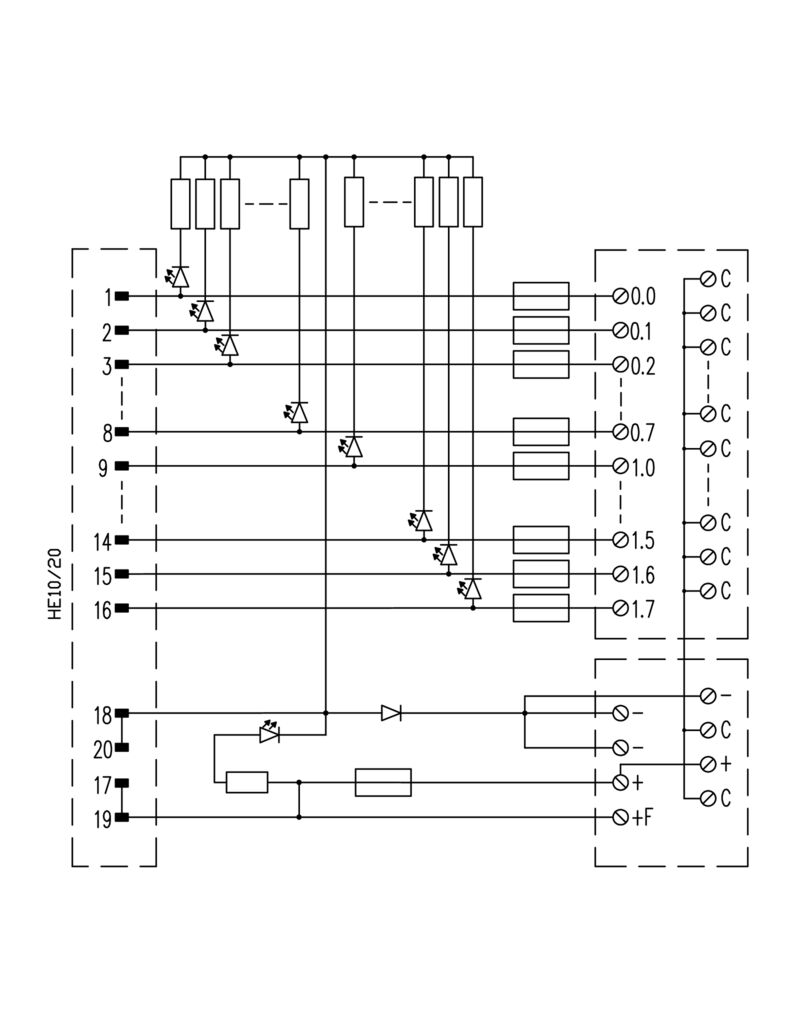

RS 16IO 2W F-L H Z
RS 16IO 2W F-L H Z

RS 16IO 2W F-L H Z

Interface, RS, Fuse, LED, 2-wire, Tension-clamp connection

Item No. 1311870000
Download data sheet Product Downloads
Related products 35
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL General data Connection data Ratings data Insulation coordination (EN50178) Connection field Supply connection Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E141197

General ordering data

Version
Interface, RS, Fuse, LED, 2-wire, Tension-clamp connection
Order No.
1311870000
Type
RS 16IO 2W F-L H Z
GTIN (EAN)
4050118114270
Qty.
1  items

Dimensions and weights

Depth
72  mm
Depth (inches)
2.835  inch
Height
87  mm
Height (inches)
3.425  inch
Width
122  mm
Width (inches)
4.803  inch
Net weight
334.16  g

Temperatures

Storage temperature
-40...60 °C
Operating temperature
-25...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
7b5ffb72-271d-4c73-8b09-bd0aaee3697a

Rated data UL

Operating temperature UL, max.
25  °C
Operating temperature UL, min.
0  °C
Rated current IN
1  A
Rated voltage UN
24 V DC
Rated voltage DC UN (supply)
24  V
Rated current (supply)
2  A
Rated current fuse (supply)
3.15  A
Rated current fuse (channel)
0.5  A

General data

LED status display per channel
green
Disconnection per channel
No
Type of test point
No
Fuse per channel
500 mA
LED status of the supply voltage
yellow
Power supply fuse
3.15 A
Common pole polarity
Positive or negative can be selected using jumper

Connection data

Connection (field side)
LM2NZF 5.08mm
Connection on control side
Plug-in connector in acc. with IEC60603-13 / DIN41651
Number of poles (control side)
20-pole plug
Wiring system
2-wire

Ratings data

Operating voltage
24 V DC ± 10%
Max. current per channel
1  A
Total operating current
2  A

Insulation coordination (EN50178)

According to
DIN EN 50178
Rated insulation voltage
<50 V AC
Surge voltage category
III
Pollution severity level
2
Pulse voltage test (1,2/50μs)
0.8  kV
Insulation test voltage AC
0.35  kV

Connection field

Clamping range, max.
2.5  mm²
Clamping range, min.
0.13  mm²
Flexible with sleeve, max.
2.5  mm²
Flexible with sleeve, min.
0.5  mm²
Flexible, max. H05(07) V-K
4  mm²
Flexible, min. H05(07) V-K
0.5  mm²
Max. wire cross-section, AWG
AWG 14
Min. wire cross-section, AWG
AWG 26
Sleeve with plastic collar, max.
2.5  mm²
Solid, max. H05(07) V-U
1.5  mm²
Solid, min. H05(07) V-U
0.5  mm²
Stripping length
7  mm
Tightening torque, max.
0.6  Nm
Tightening torque, min.
0.5  Nm
Type of connection
Tension-clamp connection

Supply connection

Type of connection
Tension-clamp connection
Clamping range, min.
0.13  mm²
Clamping range, max.
2.5  mm²
Solid, min. H05(07) V-U
0.5  mm²
Solid, max. H05(07) V-U
1.5  mm²
Flexible, min. H05(07) V-K
0.5  mm²
Flexible, max. H05(07) V-K
1.5  mm²
Flexible with sleeve, max.
1.5  mm²
Flexible with sleeve, min.
0.5  mm²
Ferrule with plastic collar, max.
1.5  mm²
Wire cross-section, min. AWG
AWG 26
Wire cross-section, max. AWG
AWG 12
Tightening torque, min.
0.5  Nm
Tightening torque, max.
0.6  Nm
Stripping length
6  mm

Classifications

ETIM 6.0
EC002780
ETIM 7.0
EC002780
ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 9.0
27-14-11-52
ECLASS 9.1
27-24-22-16
ECLASS 10.0
27-14-11-52
ECLASS 11.0
27-14-11-52
ECLASS 12.0
27-14-11-52
ECLASS 13.0
27-14-11-52
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
