Properties

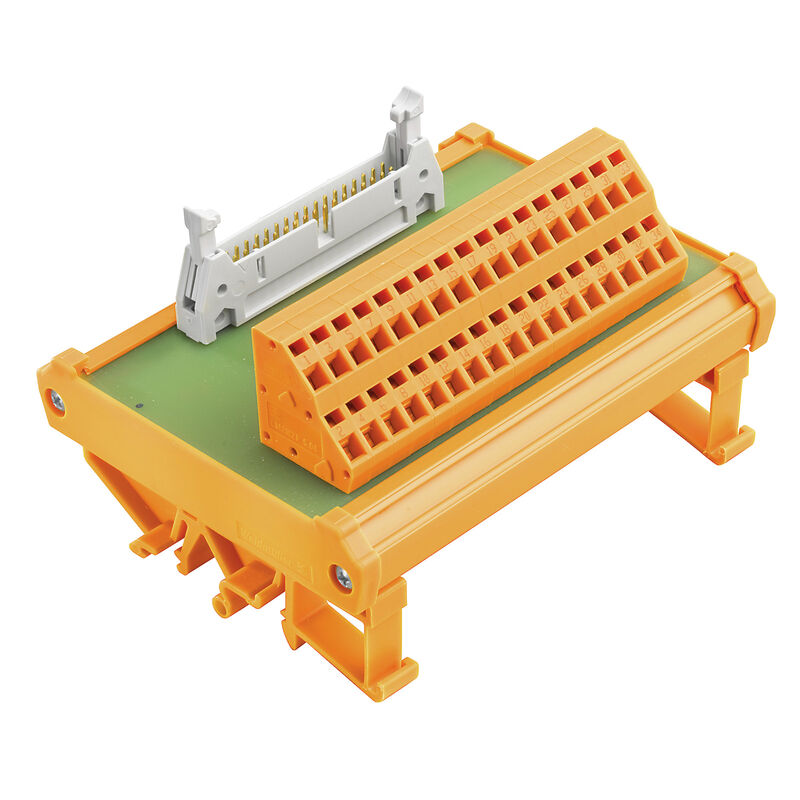

| Version | Interface, RSF, Plug-in connector in acc. with IEC60603-13 / DIN41651, 20-pole, Tension-clamp connection |
| Order No. | 8537110000 |
| Type | RS F20 Z |
| GTIN (EAN) | 4032248172771 |
| Qty. | 1 items |
| Depth | 64 mm |
| Depth (inches) | 2.52 inch |
| Height | 87 mm |
| Height (inches) | 3.425 inch |
| Width | 65 mm |
| Width (inches) | 2.559 inch |
| Net weight | 121 g |
| Storage temperature | -40...70 °C |
| Operating temperature | 0...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Operating temperature UL, max. | 25 °C |
| Operating temperature UL, min. | 0 °C |
| Rated current IN | 1 A |
| Rated voltage UN | ≤ 60 V AC / 75 V DC |
| Connection (field side) | LM2NZF 5.08mm |
| Connection on control side | Plug-in connector in acc. with IEC60603-13 / DIN41651 |
| Earthing | No |

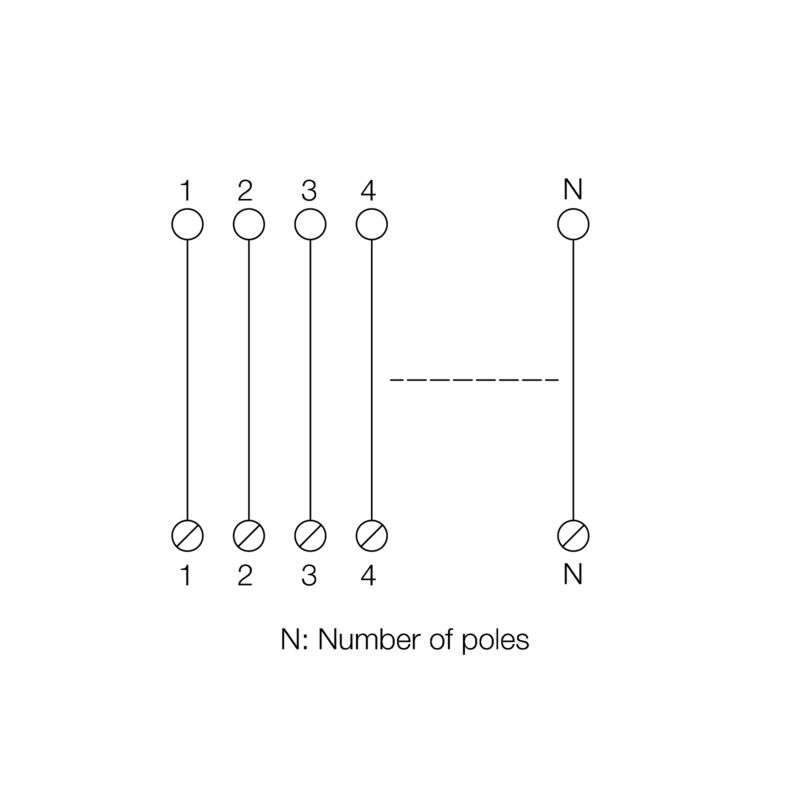

| Number of poles (control side) | 20-pole |
| Rated voltage | 60 V AC / 75 V DC |
| Rated current per connection | 1 A |
| According to | DIN EN 50178 |
| Rated insulation voltage | 100 V |
| Surge voltage category | II |
| Pollution severity level | 2 |
| Pulse voltage test (1,2/50μs) | 0.8 kV |
| Clamping range, max. | 2.5 mm² |
| Clamping range, min. | 0.13 mm² |
| Flexible with sleeve, max. | 1.5 mm² |
| Flexible with sleeve, min. | 0.25 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| Flexible, min. H05(07) V-K | 0.2 mm² |
| Max. wire cross-section, AWG | AWG 14 |
| Min. wire cross-section, AWG | AWG 24 |
| Sleeve with plastic collar, max. | 1.5 mm² |
| Solid, max. H05(07) V-U | 2.5 mm² |
| Solid, min. H05(07) V-U | 0.2 mm² |
| Stripping length | 7.5 mm |
| Type of connection | Tension-clamp connection |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153582) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_248993) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8537110000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-14-11-52 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| ECLASS 14.0 | 27-14-11-52 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E141197 |
