Properties
| Version | Interface, RSM, 16 compact, RCL, Screw connection |
| Order No. | 9445100000 |
| Type | RSM-16 C 1CO S |
| GTIN (EAN) | 4032248150960 |
| Qty. | 1 items |
| Depth | 68 mm |
| Depth (inches) | 2.677 inch |
| Height | 109 mm |
| Height (inches) | 4.291 inch |
| Width | 185 mm |
| Width (inches) | 7.283 inch |
| Net weight | 647 g |
| Storage temperature | -40...60 °C |
| Operating temperature | -25...40 °C |
| REACH SVHC |
Lead 7439-92-1
4,4'-isopropylidenediphenol 80-05-7 |

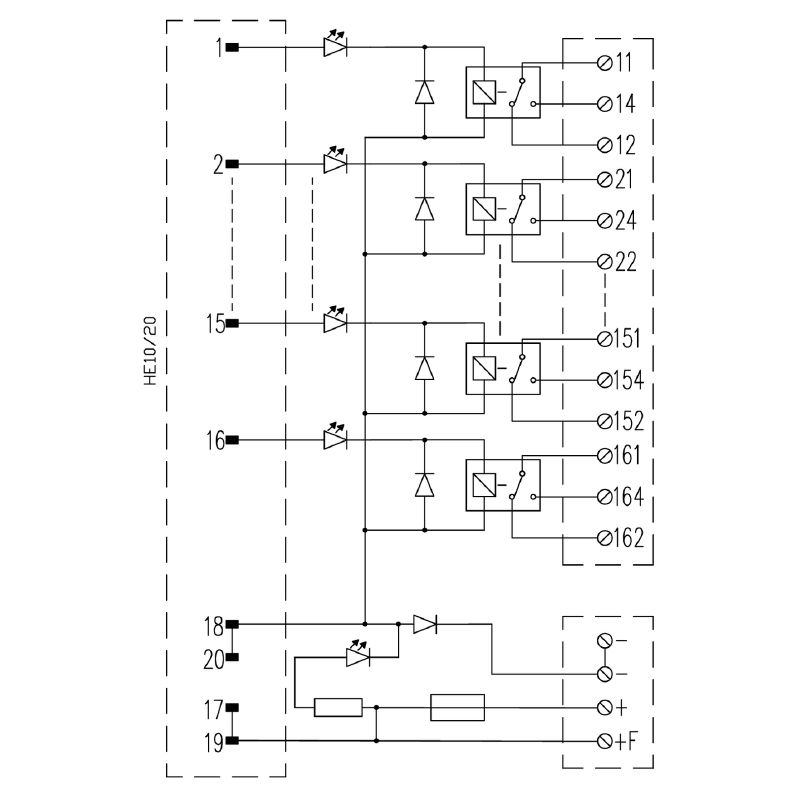

| SCIP | 66e752f3-a24f-4fef-89c4-f29f52d01390 |
| LED status display per relay | green |
| Fuse per relay | No |
| LED status of the supply voltage | yellow |
| Power supply fuse | 3.15 A |
| Connection (field side) | LL2N 5.08 mm |
| Connection on control side | Plug-in connector in acc. with IEC60603-13 / DIN41651 |
| Connection supply | LL 5.08 mm |
| Number of poles (control side) | 20-pole plug |
| Mechanical service life | 3 x 107 switching cycles |
| Input voltage | 24 V DC ± 10% |
| Input current | 20 mA |
| Power rating | 0.4 VA |
| Relay type | RCL |
| Type of output | Potential-free contact |
| Contact material | AgNi 90/10 |
| Rated voltage | ≤ 250 Vdc ≤ 250 Vac |
| Max. AC continuous current | 5 A |
| AC peak current | 16 A |
| Minimum contact current | 0.01 A |
| Minimum contact voltage | 10 V |
| According to | DIN EN 50178 |
| Rated input insulation voltage | < 50 V AC |
| Rated output insulation voltage | < 250 V AC |
| Overvoltage category input/input | III |
| Overvoltage category input/output | III |
| Overvoltage category output/output | II |
| Pollution severity level | 2 |
| Pulse voltage test (1,2/50μs) | 6 kV |
| Insulation test voltage AC | 1.2 kV |
| Clearance input/output | ≥ 5.5 mm |
| Clearance input/input | ≥ 0.2 mm |
| Clearance output/output | ≥ 1.17 mm |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0.13 mm² |
| Flexible with sleeve, max. | 2.5 mm² |
| Flexible with sleeve, min. | 0.5 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Max. wire cross-section, AWG | AWG 12 |
| Min. wire cross-section, AWG | AWG 26 |
| Sleeve with plastic collar, max. | 2.5 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Solid, min. H05(07) V-U | 0.5 mm² |
| Stripping length | 6 mm |
| Tightening torque, max. | 0.6 Nm |
| Tightening torque, min. | 0.5 Nm |
| Type of connection | Screw connection |
| Type of connection | Screw connection |
| Clamping range, min. | 0.13 mm² |
| Clamping range, max. | 6 mm² |
| Solid, min. H05(07) V-U | 0.5 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| Flexible with sleeve, max. | 2.5 mm² |
| Flexible with sleeve, min. | 0.5 mm² |
| Ferrule with plastic collar, max. | 2.5 mm² |
| Wire cross-section, min. AWG | AWG 26 |
| Wire cross-section, max. AWG | AWG 12 |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.6 Nm |
| Stripping length | 6 mm |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153603) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305603) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9445100000&norm=0) |
| Product Change Notification | [20210330 Technical change to RSM and RSMS modules](https://mdcop.weidmueller.com/mediadelivery/asset/900_206320) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-24-22-16 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| Approvals |  |
| ROHS | Conform |
