S2CD-THR 3.50/28/90LF 3.2SN BK BX

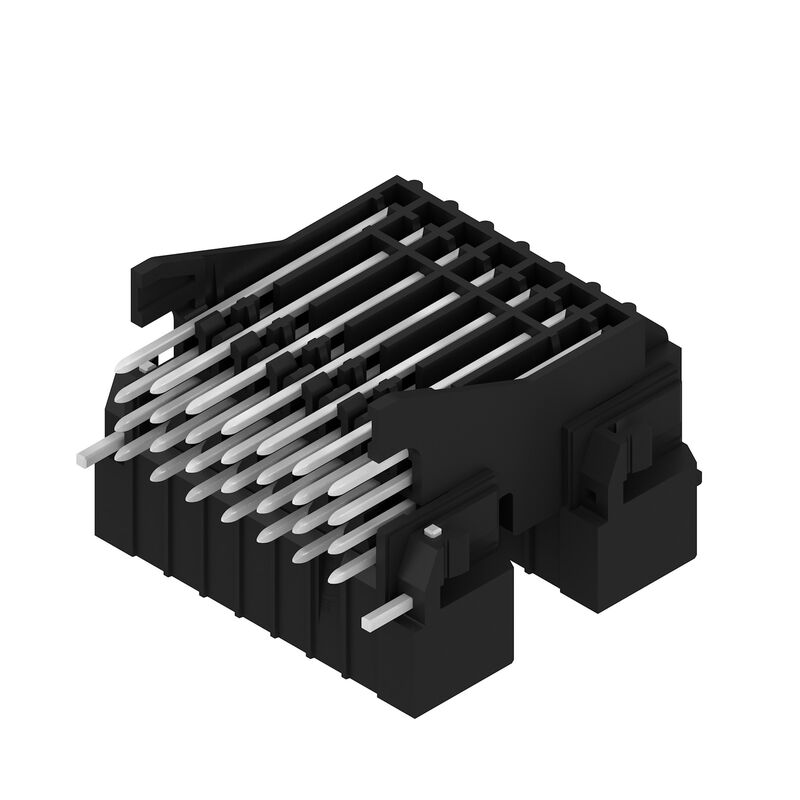

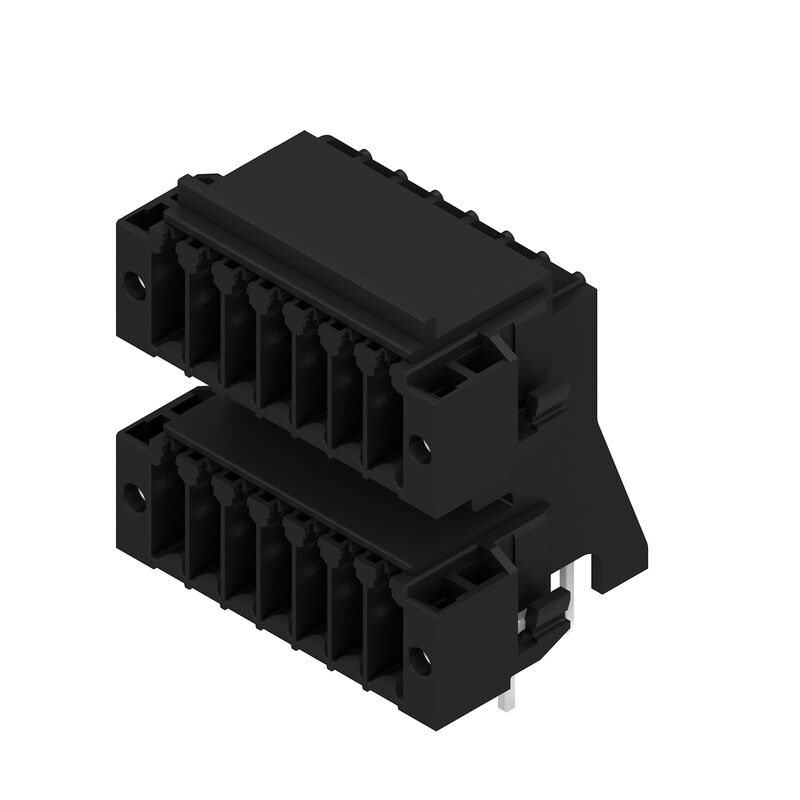

Product image
S2CD-THR 3.50/28/90LF 3.2SN BK BX
Product image
S2CD-THR 3.50/28/90LF 3.2SN BK BX
Dimensional drawing

S2CD-THR 3.50/28/90LF 3.2SN BK BX

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.50 mm, Number of poles: 28, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box

Item No. 1357950000
Download data sheet Engineering Support Product Downloads
Accessories 2 Is counterpart of 4 Related products 11
General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications Approvals

General ordering data

Version
PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.50 mm, Number of poles: 28, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
Order No.
1357950000
Type
S2CD-THR 3.50/28/90LF 3.2SN BK BX
GTIN (EAN)
4050118160871
Qty.
20  items
Product data
IEC: 200 V / 7.9 A
UL: 150 V / 9.5 A
Packaging
Box

Dimensions and weights

Depth
24.4  mm
Depth (inches)
0.961  inch
Height
35  mm
Height (inches)
1.378  inch
Height of lowest version
31.8  mm
Width
31.5  mm
Width (inches)
1.24  inch
Net weight
16.7  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series B2C/S2C 3.50 - 2-row
Type of connection
Board connection
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
3.5  mm
Pitch in inches (P)
0.138  "
Outgoing elbow
90°
Number of poles
28
Number of solder pins per pole
1
Solder pin length (l)
3.2  mm
Solder pin dimensions
d = 1.0 mm
Octagonal
Solder eyelet hole diameter (D)
1.3  mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Outside diameter of solder pad
2.1  mm
Template aperture diameter
1.9  mm
L1 in mm
45.5  mm
L1 in inches
1.791  "
Pin series quantity
4
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Can be coded
Yes

Material data

Insulating material
LCP GF
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIb
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 2...5 µm Sn matt
Layer structure of plug contact
2...5 µm Sn / 1...3 µm Ni
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
120  °C
Temperature range, installation, min.
-40  °C
Temperature range, installation, max.
120  °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
7.9  A
Rated current, max. number of poles (Tu=20°C)
5  A
Rated current, min. number of poles (Tu=40°C)
6.8  A
Rated current, max. number of poles (Tu=40°C)
5  A
Rated voltage for surge voltage class / pollution degree II/2
200  V
Rated voltage for surge voltage class / pollution degree III/2
160  V
Rated voltage for surge voltage class / pollution degree III/3
100  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2.5  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2.5  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
1.5  kV
Short-time withstand current resistance
3 x 1s with 80 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
50  V
Rated voltage (Use group C / CSA)
50  V
Rated voltage (Use group D / CSA)
150  V
Rated current (Use group B / CSA)
5  A
Rated current (Use group C / CSA)
9.5  A
Rated current (Use group D / CSA)
9.5  A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
150  V
Rated voltage (Use group C / UL 1059)
50  V
Rated voltage (Use group D / UL 1059)
50  V
Rated current (Use group B / UL 1059)
9.5  A
Rated current (Use group C / UL 1059)
9.5  A
Rated current (Use group D / UL 1059)
9.5  A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
145  mm
VPE width
125  mm
VPE height
45  mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Spacing between rows: see hole layout
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC002637
ETIM 7.0
EC002637
ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 9.0
27-44-04-02
ECLASS 9.1
27-44-04-02
ECLASS 10.0
27-44-04-02
ECLASS 11.0
27-46-02-01
ECLASS 12.0
27-46-02-01
ECLASS 13.0
27-46-02-01
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
