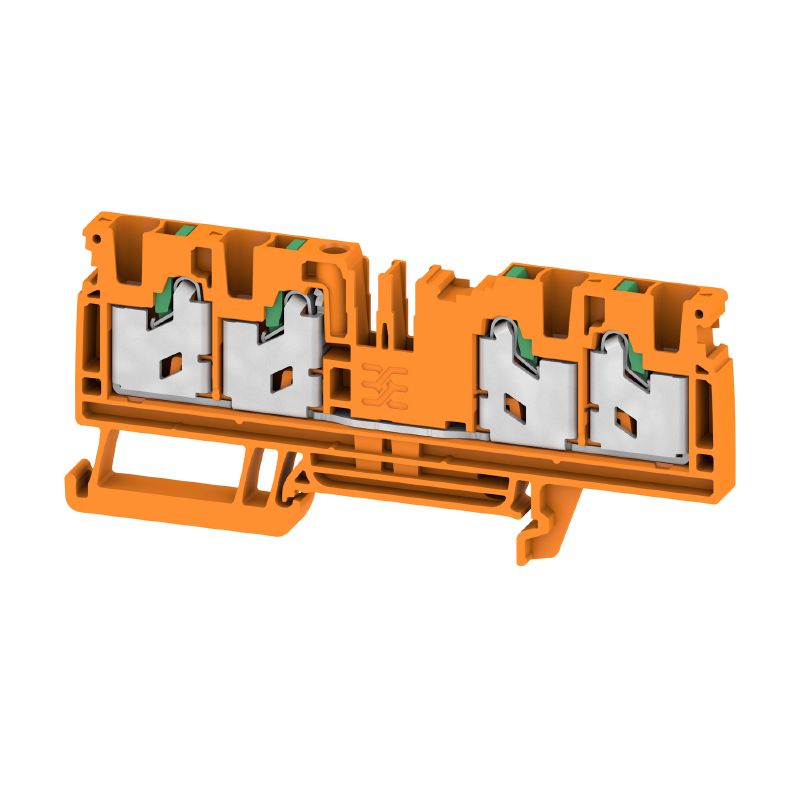

Feed-through terminal block, SNAP IN, orange, 4 mm², 32 A, 1000 V, Number of connections: 4

Item No. 3023560000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 59 Related products 1078
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Utförande
Feed-through terminal block, SNAP IN, orange, 4 mm², 32 A, 1000 V, Number of connections: 4
Art.nr.
3023560000
Typ
S4C 4 OR
GTIN (EAN)
4099986944497
Förp.
50 items

Dimensions and weights

Djup
41,5 mm
Depth (inches)
1,634 inch
Höjd
94 mm
Height (inches)
3,701 inch
Bredd
6,1 mm
Width (inches)
0,24 inch
Net weight
22,461 g

Temperatures

Lagertemperatur
-25 °C...55 °C
Continuous operating temp., min.
−60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Insulating material
Wemid
Colour
orange
Colour of operational elements
green
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certifikat nr. (ATEX)
TUEV22ATEX8925U
Certifikat nr. (IECEX)
IECEXTUR22.0073U
Max. voltage (ATEX)
550 V
Ström (ATEX)
29 A
Wire cross section max. (ATEX)
6 mm²
Max. voltage (IECEX)
550 V
Current (IECEX)
29 A
Ledararea max. (IECEX)
6 mm²

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Number of potentials per tier
1
Levels cross-connected internally
No
Guida equipaggiata
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Open sides
right
Snap-on
Yes
Type de montage
TS 35
Type of fixing
Snap-on
Version à l#92épreuve de l#92explosion
No

Conductors for clamping (additional connection)

Anslutningstyp, ytterligare anslutning
PUSH IN

Conductors for clamping (rated connection)

Anslutningsarea, fintrådig, min.
0,75 mm²
Anslutningsarea, flertrådig, max.
4 mm²
Anslutningsarea, flertrådig, min.
0,75 mm²
Anslutningsområde, max.
6 mm²
Anslutningsområde, min.
0,75 mm²
Anslutningsriktning
top
Anslutningstyp
SNAP IN
Antal anslutningar
4
Avisoleringslängd
12 mm
Klingmått
0.6 x 3.5 mm
Ledararea, entrådig, max.
6 mm²
Ledararea, entrådig, min.
0,75 mm²
Ledararea, fintrådig med ändhylsa DIN 46228/1, max.
4 mm²
Ledararea, fintrådig med ändhylsa DIN 46228/1, min.
0,75 mm²
Ledararea, fintrådig med ändhylsa DIN 46228/4, max.
4 mm²
Ledararea, fintrådig med ändhylsor DIN 46228/4, min.
0,75 mm²
Ledararea, fintrådig, min.
0,75 mm²
Ledardiameter, AWG, max
AWG 12
Ledardiameter, AWG, min.
AWG 20
Ledardiameter, fintrådig, max.
6 mm²
Rörlängd för tvillingändhylsa enligt area
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    0,5 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    0,75 mm²
  • Cross-section, max.:
    0,75 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    1 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    12 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    18 mm
  • Tube length, max.:
    18 mm
Rörlängd för ändhylsa med plastkrage enligt area
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    8 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    4 mm²
  • Cross-section, max.:
    4 mm²
  • Tube length, min.:
    12 mm
  • Tube length, max.:
    18 mm
Rörlängd för ändhylsa utan plastkrage enligt area
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    10 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    4 mm²
  • Cross-section, max.:
    4 mm²
  • Tube length, min.:
    12 mm
  • Tube length, max.:
    18 mm
Tolkdorn enligt 60 947-1
A4
Tvilling-ändhylsa, max.
1,5 mm²
Tvilling-ändhylsa, min.
0,5 mm²

CSA rating data

Certifikat nr. (CSA)
227442-80219640
Ledararea max. (CSA)
10 AWG
Ledararea min. (CSA)
20 AWG
Spänning grupp B (CSA)
600 V
Spänning grupp C (CSA)
600 V
Spänning grupp D (CSA)
600 V
Ström Gr B (CSA)
30 A
Ström Gr C (CSA)
30 A
Ström Gr D (CSA)
5 A

General

Ledardiameter, AWG, max
AWG 12
Ledardiameter, AWG, min.
AWG 20
Montageskena obestyckad
TS 35
Normer
IEC 60947-7-1

Rating data

Rated cross-section
4 mm²
Rated voltage
1 000 V
Rated DC voltage
1 000 V
Номинальный ток
32 A
Current at maximum wires
32 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
1,02 mW
Pollution severity
3
Surge voltage category
III

UL rating data

Certifikat nr (cURus)
E60693
Ledarstorlek Factory wiring max (cURus)
10 AWG
Ledarstorlek Factory wiring min (cURus)
20 AWG
Ledarstorlek Field wiring max (cURus)
10 AWG
Ledarstorlek Field wiring min (cURus)
20 AWG
Spänning grupp B (cURus)
600 V
Spänning grupp C (cURus)
600 V
Spänning grupp D (cURus)
600 V
Ström grupp B (cURus)
30 A
Ström grupp C (cURus)
30 A
Ström Gruppr D (cURus)
5 A

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
