Properties
| Version | Pressing tool |
| Order No. | 1381770000 |

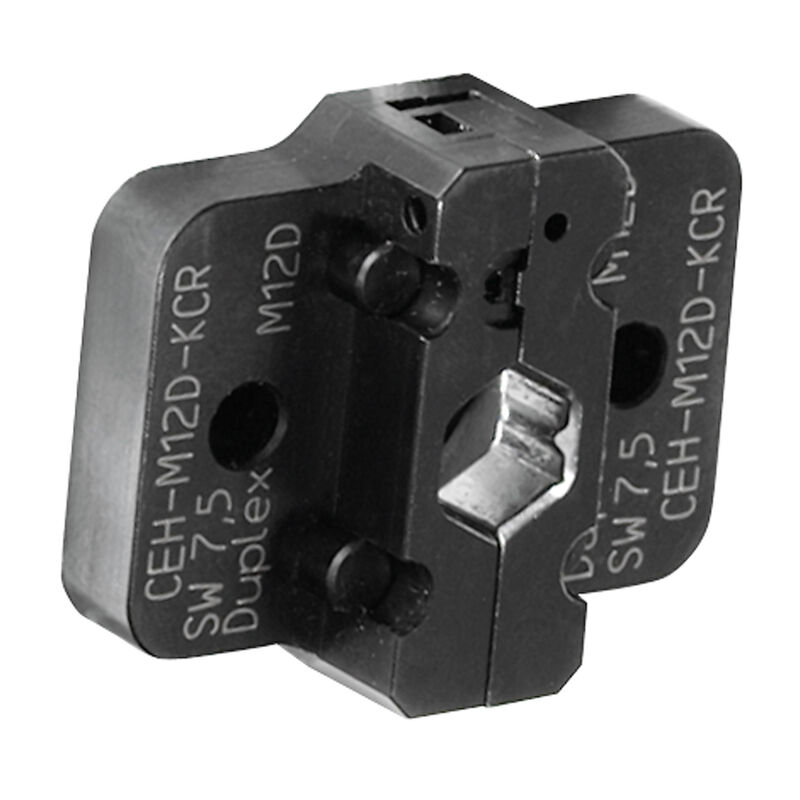

| Type | SAI-CEH-M12D-KCR075 |
| GTIN (EAN) | 4050118183900 |
| Qty. | 1 items |
| Depth | 12.3 mm |
| Depth (inches) | 0.484 inch |
| Height | 37 mm |
| Height (inches) | 1.457 inch |
| Length | 30 mm |
| Length (inches) | 1.181 inch |
| Net weight | 60 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | No SVHC above 0.1 wt% |
| Version | Miscellaneous |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
Is accessory of
-
Item No.:1380620000Packaging unit:1 PC
Field attachable connector, M12, Female socket, straight
-
Item No.:1380610000Packaging unit:1 PC
Field attachable connector, M12, pin, straight
ConnectorsCircular ConnectorsM12 connectorsSignalCrimp connectionShield crimp
ConnectorsCircular ConnectorsM12 connectorsDataD-codedPlug-in connectorCrimp connectionStraight
