Properties
| Version | Sensor/Actuator plug-in connector |
| Order No. | 1224660000 |
| Type | SAI-M23-BE-17-F-G |
| GTIN (EAN) | 4050118008357 |
| Qty. | 1 items |
| Net weight | 13 g |
| REACH SVHC | Lead 7439-92-1 |
| Coding | none |
| Connection cross-section, max. | 1.5 mm² |
| Connection cross-section, min. | 0.08 mm² |
| Contact material | Copper-Zinc alloy |
| Contact surface | Gold-plated |
| Housing main material | Thermoplastic polyamide PA 6, PBT |

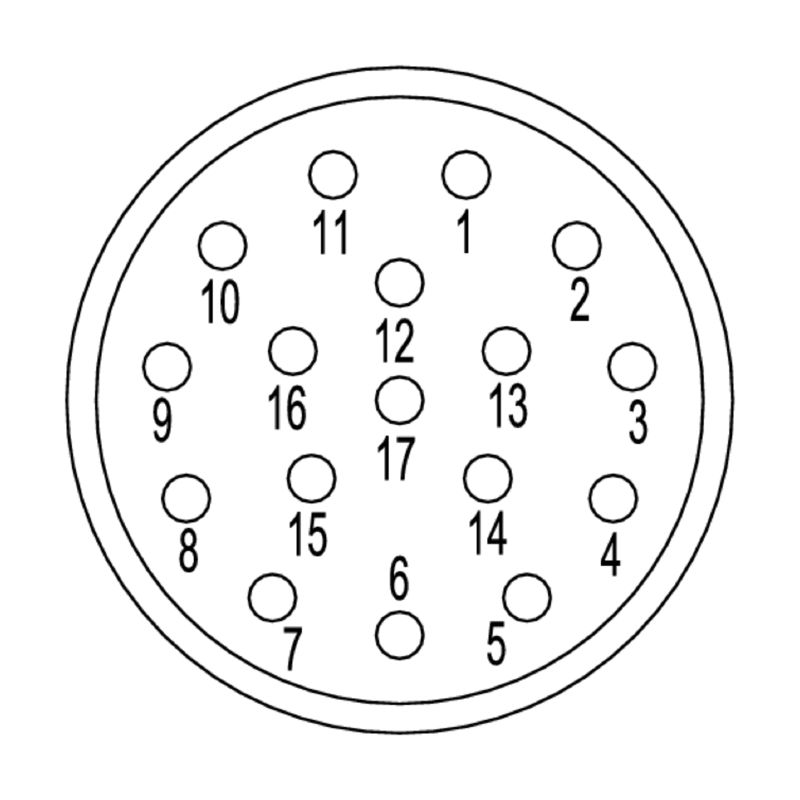

| Number of poles | 17 |
| Plugging cycles | > 1000 |
| Pollution severity | 3 |
| Rated current | 8 A |
| Rated voltage | 160 V |
| Type of connection | Solder cups |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000438 |
| ETIM 7.0 | EC003557 |
| ETIM 8.0 | EC003557 |
| ETIM 9.0 | EC003557 |
| ECLASS 9.1 | 27-44-02-05 |
| ECLASS 10.0 | 27-44-02-23 |
| ECLASS 11.0 | 27-44-02-23 |
| ECLASS 12.0 | 27-44-02-23 |
| ECLASS 13.0 | 27-44-02-23 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E344862 |
