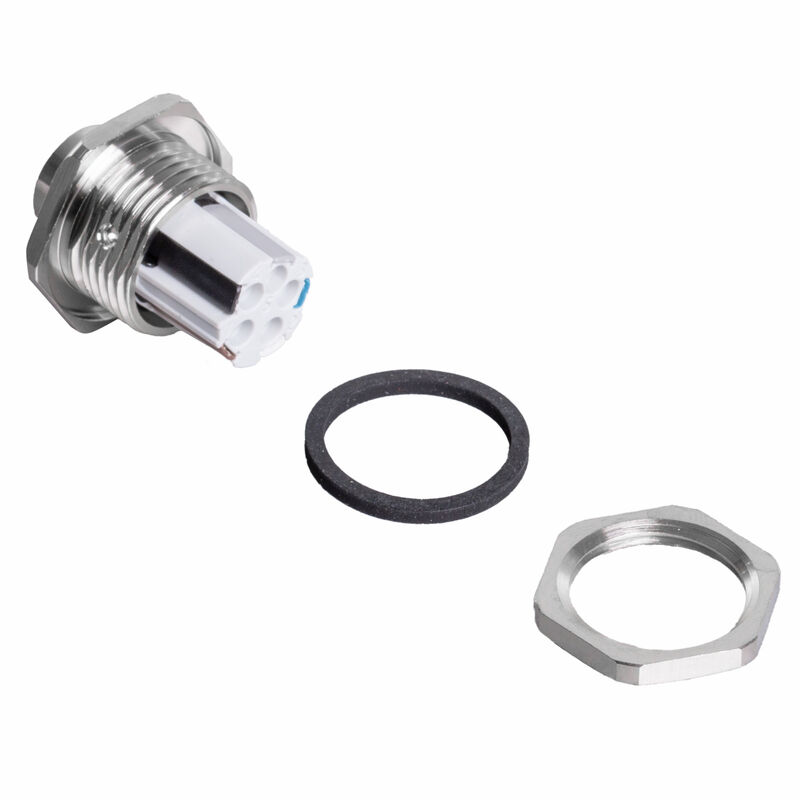

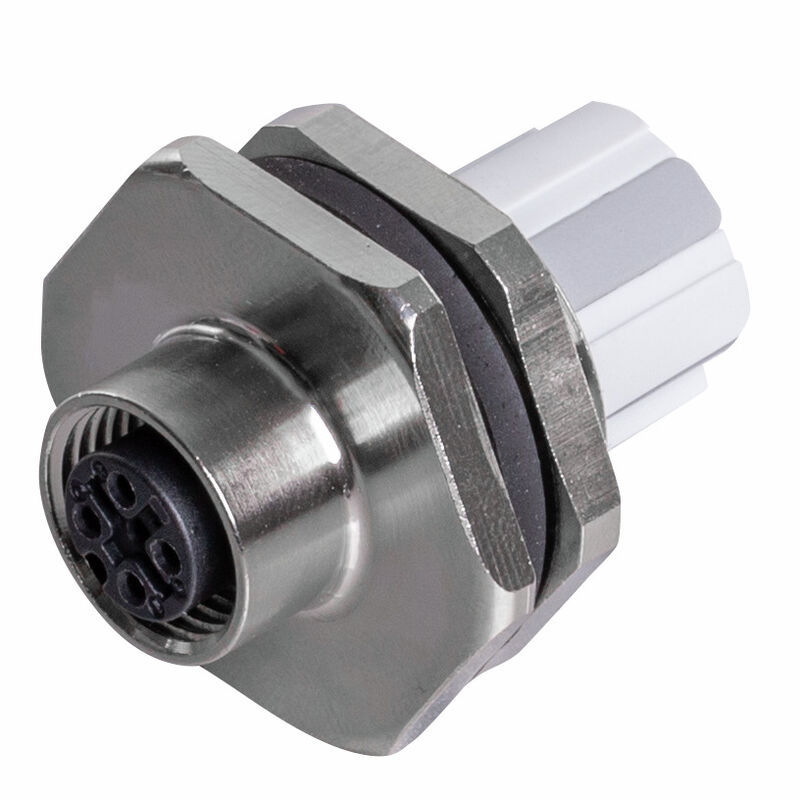

SAIBGP-M-5A-M12-WDF
SAIBGP-M-5A-M12-WDF
Dimensioned drawing
SAIBGP-M-5A-M12-WDF

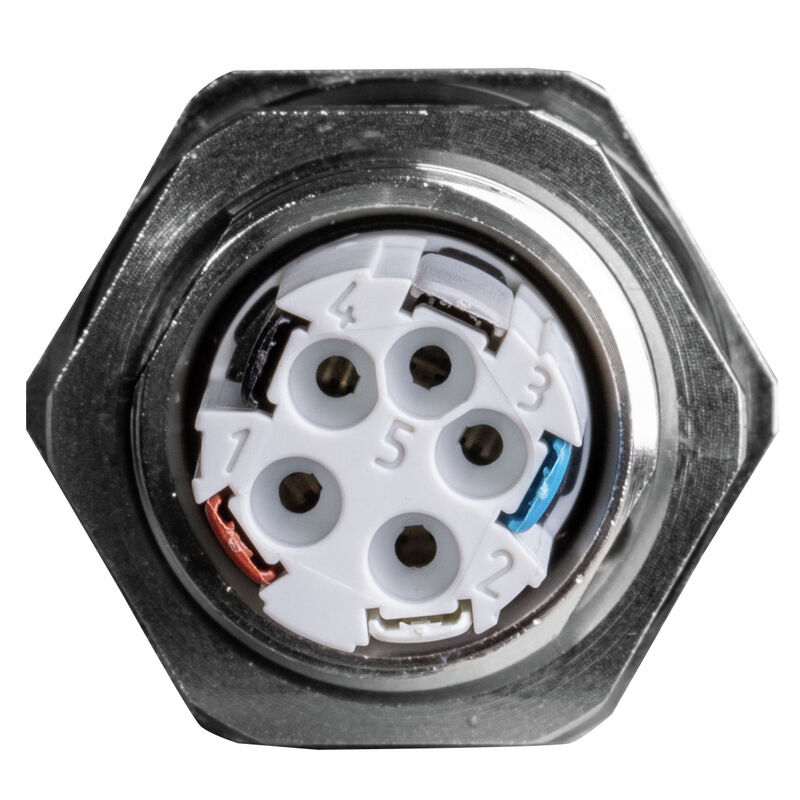

Pole scheme
M12 = A-coded
SAIBGP-M-5A-M12-WDF
SAIBGP-M-5A-M12-WDF
SAIBGP-M-5A-M12-WDF
SAIBGP-M-5A-M12-WDF

SAIBGP-M-5A-M12-WDF

Item No. 3150930000
Download data sheet Engineering Support Product Downloads
Related products 4
Approvals General ordering data Dimensions and weights Technical data customisable plug-in connectors Standards General technical specifications Classifications

Approvals

ROHS
Conform

General ordering data

Order No.
3150930000
Type
SAIBGP-M-5A-M12-WDF
GTIN (EAN)
4099987610858
Qty.
1 items

Dimensions and weights

Diameter
29 mm
Wall thickness, max.
5 mm
Net weight
27 g

Technical data customisable plug-in connectors

Cable diameter, max.
8 mm
Cable diameter, min.
4 mm
Coding
A-coded
Conductor cross-section, max.
0.75 mm²
Conductor cross-section, min.
0.14 mm²
Contact surface
Ni/Au
Gender of contact
Female
Housing main material
PA 66
Insulation resistance
≥ 100 MΩ
LED
No
Nominal current
4 A
Nominal voltage
60 V
Number of poles
5
Plage de températures du coffret
-40 … +85 ° C
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Rated voltage
  • Rated voltage:
    48 V
  • Voltage type:
    AC
  • Rated voltage:
    60 V
  • Voltage type:
    DC
Shield connection
No
Threaded ring material
Diecast zinc
Type of connection
PUSH IN

Standards

Connector standard
IEC 61076-2-101

General technical specifications

Filettatura del collegamento
M12
Housing main material
PA 66
Kódolás
A-coded
LED
No
Ledararea, fintrådig, min.
0.14 mm²
Ledardiameter, fintrådig, max.
0.75 mm²
Nominal current
4 A
Nominell spänning
60 V
Number of poles
5
Opór izolacji
≥ 100 MΩ
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Przekrój przyłącza przewodu, jednodrutowy, min.
0.14 mm²
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Diecast zinc
Type of connection
PUSH IN
UL 94 flammability rating
V-0
Сечение подключаемого проводника, однопроволочного, макс.
0.75 mm²
접점 표면
Ni/Au

Classifications

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
