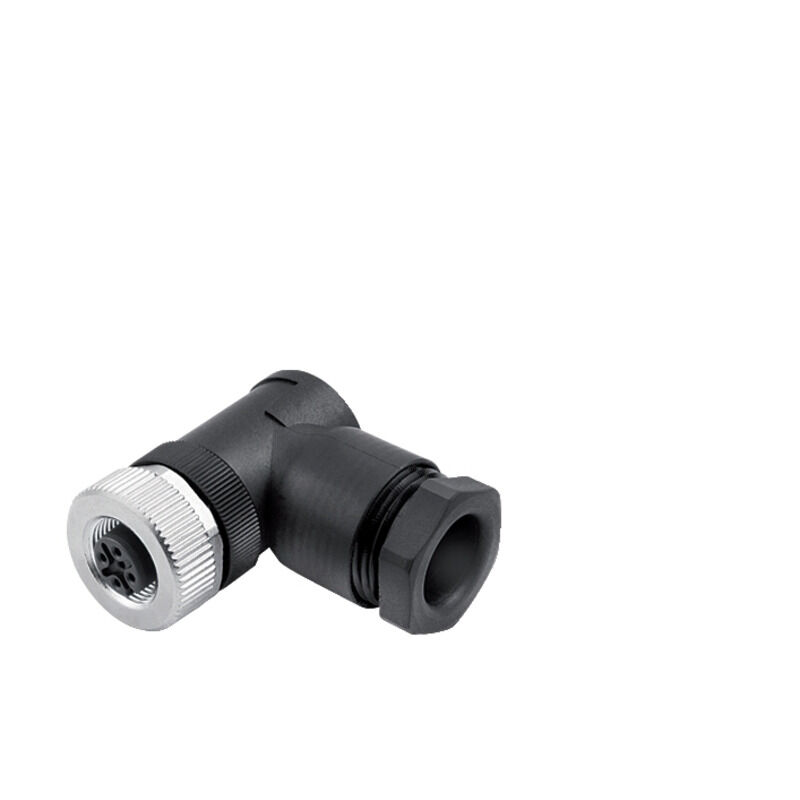

SAIBWS-P-5A-8/10-M12
SAIBWS-P-5A-8/10-M12
Pole scheme
Socket

SAIBWS-P-5A-8/10-M12

Разъем, подключаемый в поле, M12

Product ID 1467690000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 13
Dopuszczenia Основные данные для заказа Dimensions and weights Экологическое соответствие изделия Technical data customisable plug-in connectors 일반 정보 Standards Klassificeringar

Dopuszczenia

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

Основные данные для заказа

Version
Разъем, подключаемый в поле, M12
Order No.
1467690000
Type
SAIBWS-P-5A-8/10-M12
GTIN (EAN)
4050118273434
Qty.
1 adet

Dimensions and weights

Net weight
27,179 g

Экологическое соответствие изделия

RoHS Compliance Status
Соответствует
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical data customisable plug-in connectors

Cable diameter, max.
10 mm
Cable diameter, min.
8 mm
Cable gland
PG 11
Coding
A-coded
Conductor cross-section, max.
1,5 mm²
Conductor cross-section, min.
0,14 mm²
Connection cross-section, max.
1,5 mm²
Connection cross-section, min.
0,5 mm²
Contact material
CuZn
Contact surface
vergoldet
Gender of contact
Female
Housing main material
PA
Insulation resistance
108 Ω
Nominal voltage
125 V
Number of poles
5
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Rated current
Contactos 1-4 8A, contacto 5 2A
Shield connection
No
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Cink présöntvény
Type of connection
ねじ接続

일반 정보

Liczba biegunów
5
Connection 1
M12
Connection 2
Skruv
Housing main material
PA
Connection thread
M12
Contact material
CuZn
Contact surface
Gold-plated
Protection degree
IP67
Plugging cycles
≥ 100

Standards

Connector standard
IEC 61076-2-101

Klassificeringar

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
