SAIL-7/8BG-3-1.5U
SAIL-7/8BG-3-1.5U
Pole scheme
Straight socket
SAIL-7/8BG-3-1.5U
Pole scheme
Female
SAIL-7/8BG-3-1.5U
Wiring diagram

SAIL-7/8BG-3-1.5U

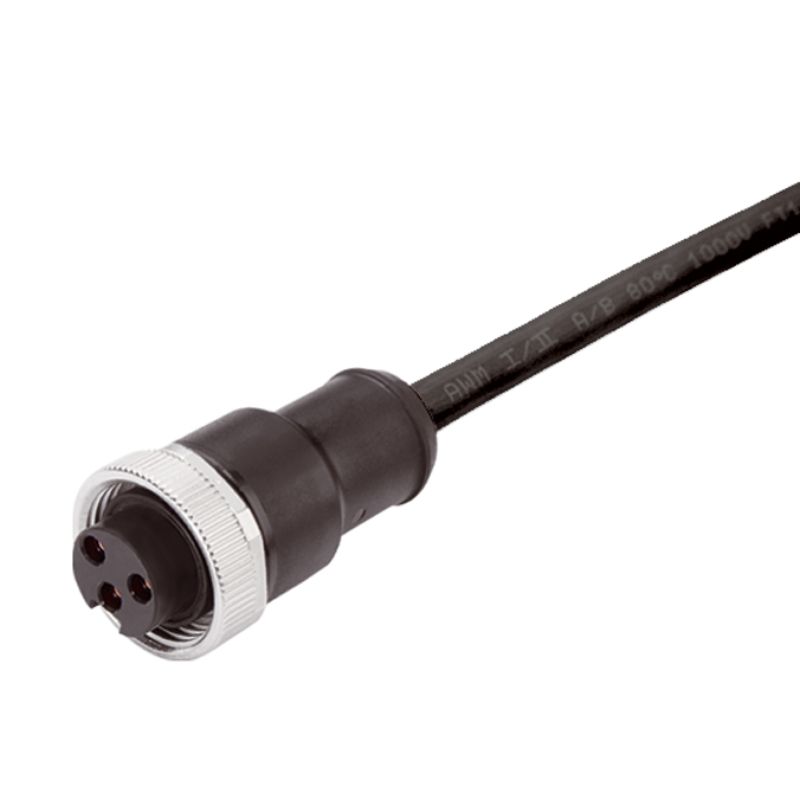

Sensor/actuator line, One end without connector, 7/8", Number of poles : 3 (2 + PE), 1.5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 1292100150
Gegevensblad downloaden Teknisk support
Verwante producten 5
Approvals General ordering data Méretek és tömegek Environmental Product Compliance Technické specifikace kabelu Všeobecné technické údaje Electrical properties Obecné standardy Plug, left Plug, right Képek a termékekről Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conforme
UL File Number Search
[UL weboldal](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Č. osvědčení (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, 7/8", Number of poles : 3 (2 + PE), 1.5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Číslo objednávky
1292100150
Typ
SAIL-7/8BG-3-1.5U
GTIN (EAN)
4050118089417
Qty.
1 Darab

Méretek és tömegek

Nettó tömeg
150 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technické specifikace kabelu

černá
Bending cycles
5 mil.
Bending radius, min., moving
7,5x průměr kabelu
Cable length
1,5 m
Cable length configurable
Ne
Colour coding
blue
brown
Green/yellow
Core cross-section
1,5 mm²
Halogen
No
Insulation
TPM
Irradiation crosslinked
No
Number of poles
3 (2 + PE)
Outer cladding in accordance with UL AWM style
20234 (80 °C / 1000 V)
Outside diameter
7.4 mm ± 0.2 mm
PE function
Yes
Resistant to welding beads
No
Sheath material
PUR
Shielded
No
Suitable for cable carriers
Sí
Temperature range, moving
-20...80 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No

Všeobecné technické údaje

Coding
žádná
Connection thread
7/8"
Contact material
CuZn
Contact surface
Au (Gold)
Housing main material
PUR
Insulation resistance
108 Ω
Jmenovité napětí (UL)
600 V
jumpered
Nein
LED
No
Materiál kroužku se závitem
Diecast zinc
Nominal current
12 A
Nominal voltage
300 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP68
when screwed in
Rated impulse voltage
2.500 V
Rozsah teplot krytu
-40 … +85 ° C
Version
Conector hembra, recto

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
300 V
Rated current
9 A (4- and 5-pole), 12 A (3-pole)
Volume resistance
≤3 mΩ

Obecné standardy

Certificate no. (cULus)
E307231

Plug, left

Zástrčka vlevo
7/8", IP68, female contact, straight, Plastic, unshielded

Plug, right

Zástrčka vpravo
free conductor end

Képek a termékekről

Illusztráció címe 06
Az ideális szerszám: Screwty ® nyomaték funkcióval
Kép alcím-06
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
