Properties
| Version | Sensor/actuator line, 7/8", Number of poles : 5 (4 + PE), 2 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No |
| Order No. | 2519450200 |

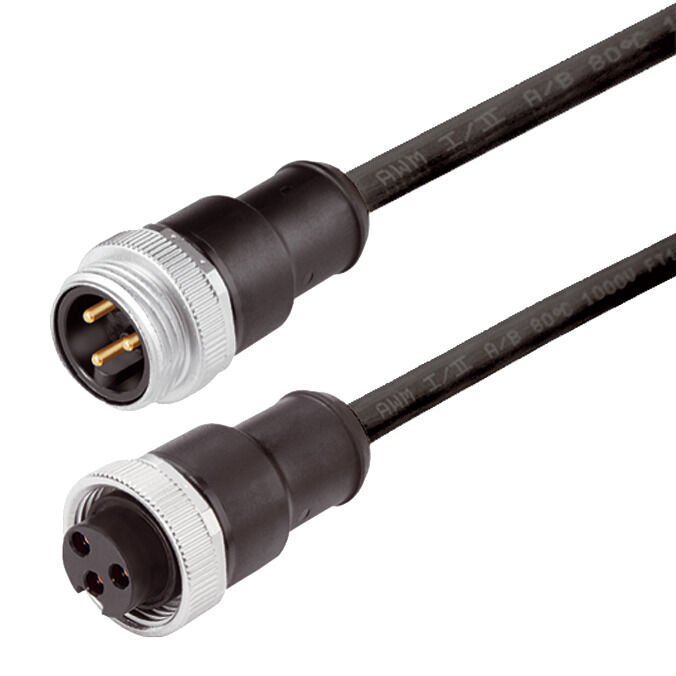

| Type | SAIL-7/8G7/8G-5-2.0U |
| GTIN (EAN) | 4050118533606 |
| Qty. | 1 items |
| Net weight | 150 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| Product type | Sensor/actuator line |
| Sheathing colour | black |
| Bending radius, min., moving | 7.5 x cable diameter |
| Cable length | 2 m |
| Colour coding |
brown
white blue black Green/yellow |
| Configurable cable length | No |
| Core cross-section | 1.5 mm² |
| Halogen | No |
| Insulation | TPM |
| Irradiation crosslinked | No |
| Number of poles | 5 (4 + PE) |
| Outer cladding in accordance with UL AWM style | 20234 (80 °C / 1000 V) |
| Outside diameter | 8.7 mm ± 0.2 mm |
| PE function | Yes |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | No |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -20...80 °C |
| Temperature range, stationary | -50...80 °C |
| Torsion resistance | 0 °/m |
| Welding spark resistance | No |
| Coding | none |
| Connection thread | 7/8" |
| Contact material | CuZn |
| Contact surface | Au (Gold) |
| Housing main material | PUR |
| Insulation strength | 108 Ω |
| jumpered | No |
| LED | No |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree |
IP68
when screwed in |
| Rated current | 9 A |
| Rated impulse voltage | 2,500 V |
| Rated voltage | 300 V |
| Rated voltage (UL) | 600 V |
| Temperature range of housing | -40 … +85 ° C |
| Threaded ring material | Diecast zinc |
| Tightening torque | 7/8": 1.5 Nm |
| Version | pin, straight - socket, straight |
| Insulation strength | 108 Ω |
| Rated voltage | 300 V |
| Volume resistance | ≤3 mΩ |
| Plug left | IP68, male contact, straight, Plastic, unshielded |
| Contact surface | Au (Gold) |
| Housing main material | PUR |
| Plug right | IP68, female contact, straight, Plastic, unshielded |
| Plugging cycles | ≥ 100 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_251936) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2519450200) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-11 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-11 |
| ECLASS 11.0 | 27-06-03-11 |
| ECLASS 12.0 | 27-06-03-11 |
| ECLASS 13.0 | 27-06-03-11 |
| Approvals |   |
| ROHS | Conform |
