SAIL-M12BW-3L30U

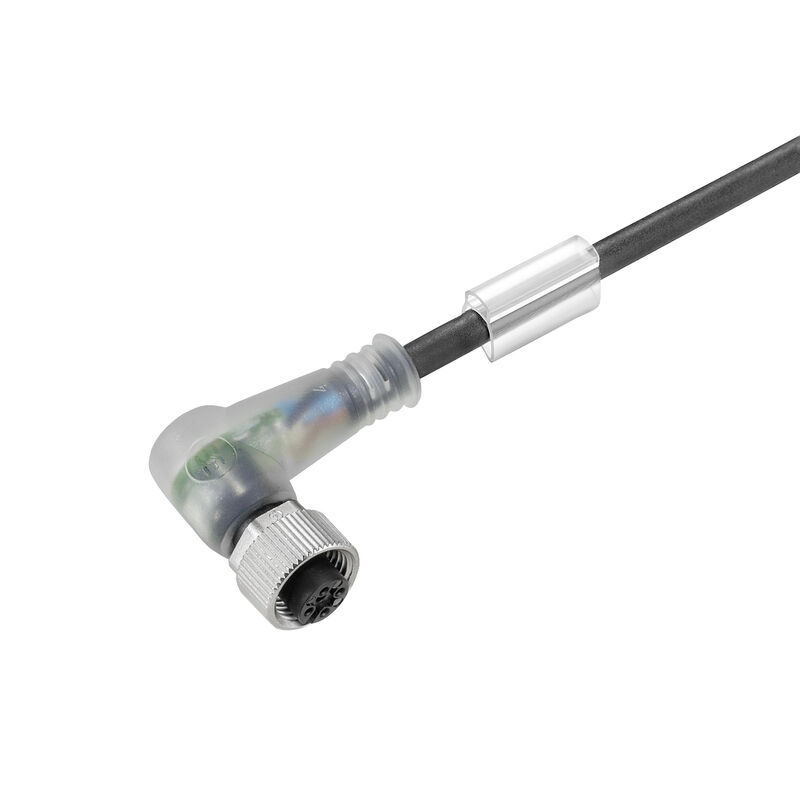

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 30 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No

Item No. 9457803000

Properties

General ordering data

Version	Sensor/actuator line, One end without connector, M12, Number of poles : 3, 30 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No
Order No.	9457803000
Type	SAIL-M12BW-3L30U
GTIN (EAN)	4050118350234
Qty.	1 items

Dimensions and weights

Net weight

700 g

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Cable

Product type	Sensor/actuator line
Sheathing colour	black

Technical specifications for cable

Acceleration	5 m/s²
Bending cycles	12 Mio
Bending cycles at torsion	> 5 Mio.
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Cable length	30 m
Colour coding	brown blue black
Configurable cable length	No
Core cross-section	0.34 mm²
Core in accordance with UL AWM style	10493 (80 °C / 300 V)
Halogen	No
Hydrolysis and microbe resistant	Yes
Insulation	PP
Irradiation crosslinked	No
LABS-free	Yes
Length of torsion	1 m
Number of poles	3
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Outside diameter	4.3 mm ± 0.2 mm
Resistance to oils	in accordance with IEC 60811:404
Resistance to spread of flame	In accordance with UL1581 UL / CUL FT2 in accordance with IEC 60332-2-2
Resistant to welding beads	No
Sheath material	PUR
Sheathing colour	black
Shielded	No
Speed	5 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-40...80 °C
Torsion resistance	360 °/m
Welding spark resistance	No

General technical data

Connection thread	M12
Contact surface	Gold-plated
Housing main material	PUR
Insulation strength	10⁸ Ω
jumpered	No
LED	Yes
Plugging cycles	≥ 100
Pollution severity	3
Protection degree	IP67 IP68 when screwed in IP65 IP66
Rated current	4 A
Rated voltage	24 V
Temperature range of housing	-25…+85 °C
Threaded ring material	Diecast zinc
Tightening torque	M12: 0.8 - 1.2 Nm
Version	Socket, angled

Electrical properties

Insulation strength	10⁸ Ω
Rated voltage	24 V

General standards

Certificate No. (CSA)	200039-2372994
Certificate No. (UL)	E307231
Connector standard	IEC 61076-2-101

Standards

Connector standard

IEC 61076-2-101

Plug, left

Plug left

M12, A-coded, IP69, female contact, angled 90°, Plastic, LED, unshielded

Plug, right

Contact surface	Gold-plated
Housing main material	PUR
Plug right	free conductor end
Plugging cycles	≥ 100

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_153358)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9457803000)
Product Change Notification	[DE - Technische Änderung zu M12 Gewindering mit 6-Kant](https://mdcop.weidmueller.com/mediadelivery/asset/900_88623) [EN - Technical change to M12 nut with additional hexagonal mounting](https://mdcop.weidmueller.com/mediadelivery/asset/900_88624)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC001855
ETIM 7.0	EC001855
ETIM 8.0	EC001855
ETIM 9.0	EC001855
ECLASS 9.0	27-06-03-11
ECLASS 9.1	27-06-03-11
ECLASS 10.0	27-06-03-11
ECLASS 11.0	27-06-03-11
ECLASS 12.0	27-06-03-11
ECLASS 13.0	27-06-03-11

Approvals

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![UL](/picture/UL.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UL)	E307231
