SAIL-M12BW-4-15V

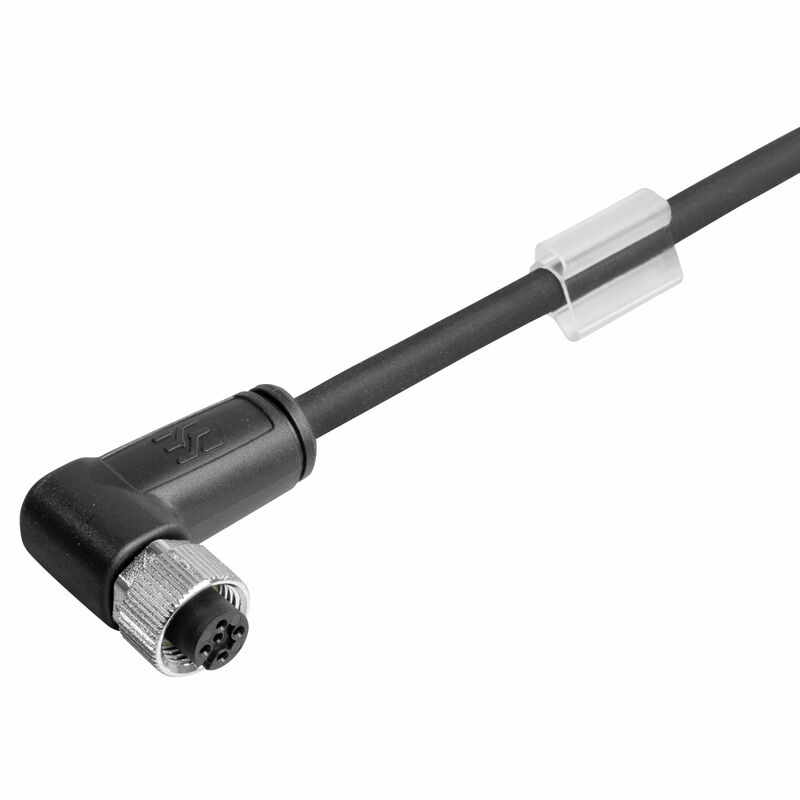

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 15 m, Socket, angled, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Item No. 1925641500

Properties

General ordering data

Version	Sensor/actuator line, One end without connector, M12, Number of poles : 4, 15 m, Socket, angled, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Order No.	1925641500
Type	SAIL-M12BW-4-15V
GTIN (EAN)	4032248792344
Qty.	1 items

Dimensions and weights

Net weight

616 g

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Cable

Product type	Sensor/actuator line
Sheathing colour	black

Technical specifications for cable

Cable length	15 m
Colour coding	brown white blue black
Configurable cable length	No
Core cross-section	0.34 mm²
Halogen	Yes
Insulation	PVC
Irradiation crosslinked	No
Number of poles	4
Outer cladding in accordance with UL AWM style	2464 (80 °C / 300 V)
Outside diameter	5.3 mm ± 0.2 mm
Resistant to welding beads	No
Sheath material	PVC
Sheathing colour	black
Shielded	No
Suitable for cable carriers	No
Temperature range, moving	-5...80 °C
Temperature range, stationary	-30...80 °C
Torsion resistance	0 °/m
Welding spark resistance	No

General technical data

Coding	A-coded
Connection thread	M12
Contact surface	Gold-plated
Housing main material	PUR
Insulation strength	10⁸ Ω
jumpered	No
LED	No
Plugging cycles	≥ 100
Pollution severity	3
Protection degree	IP67 IP68 when screwed in IP65 IP66
Rated current	4 A
Rated voltage	250 V
Temperature range of housing	-25…+85 °C
Threaded ring material	Diecast zinc
Tightening torque	M12: 0.8 - 1.2 Nm
Version	Socket, angled

Electrical properties

Insulation strength	10⁸ Ω
Rated voltage	250 V

General standards

Certificate no. (cULus)	E307231
Connector standard	IEC 61076-2-101

Standards

Connector standard

IEC 61076-2-101

Plug, left

Plug left

M12, A-coded, IP69, female contact, angled 90°, Plastic, unshielded

Plug, right

Contact material, pin	CuZn35PB2
Contact material, socket	CuZn35PB2
Contact surface	Gold-plated
Housing main material	PUR
Plug right	free conductor end
Plugging cycles	≥ 100
