SAIL-M12BW-4-70U
SAIL-M12BW-4-70U
Dimensioned drawing
Angled socket
SAIL-M12BW-4-70U
Pole scheme
Socket
SAIL-M12BW-4-70U
Wiring diagram
SAIL-M12BW-4-70U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BW-4-70U

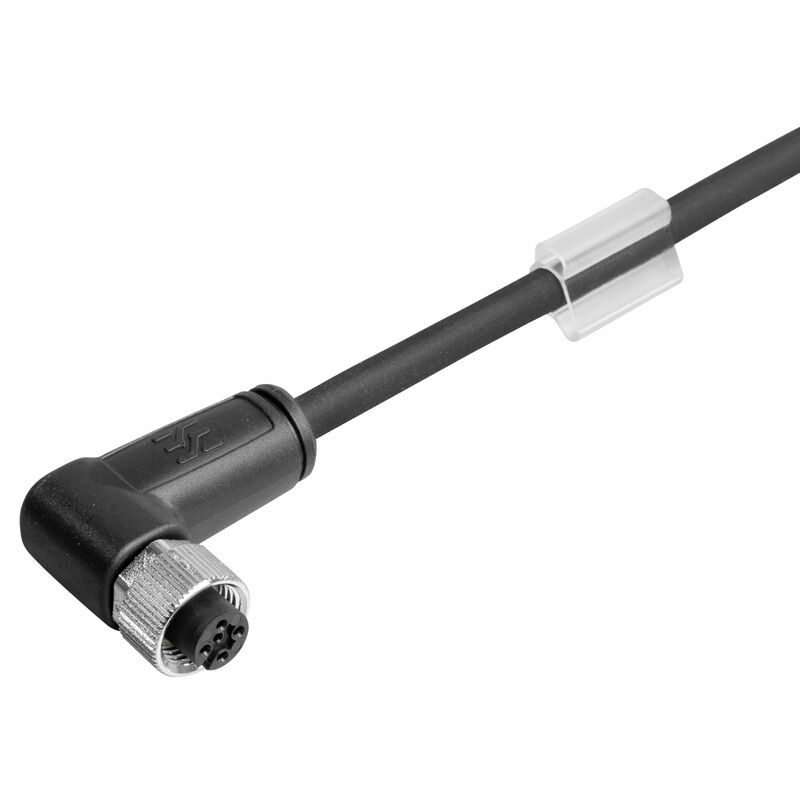

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 70 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 9457747000
Veri sayfasını indir Engineering Support Product Downloads
Akcesoria 7 Produkty pokrewne 19
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technické specifikace kabelu General technical data Electrical properties General standards Normas Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 70 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457747000
Type
SAIL-M12BW-4-70U
GTIN (EAN)
4050118185263
Qty.
1 adet

Dimensions and weights

Net weight
2.600 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technické specifikace kabelu

Acceleration
5 m/s²
Bending cycles
12 mil.
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
70 m
Colour coding
marrón
blanco
azul
negro
Configurable cable length
No
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
Нет
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
LABS-free
Yes
Length of torsion
1 m
Number of poles
4
Number of wires
4
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
4.1 mm + 0.15 mm
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black (similar to RAL 9005)
Shielded
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No

General technical data

Coding
Codificación A
Cykly zapojování
≥ 100
Hlavní materiál krytu
PUR
Jmenovité napětí
250 V
Jmenovitý proud
4 A
LED
No
Materiál kroužku se závitem
Diecast zinc
Odpor izolace
108 Ω
Povrch kontaktu
Gold-plated
propojeno můstkem
No
Připojovací závit
M12
Rozsah teplot krytu
-25…+85 °C
Stupeň krytí
IP65
IP66
IP67
IP68
when screwed in
IP69
Utahovací moment
M12: 0.8 - 1.2 Nm
Verze
Socket, angled
Závažnost znečištění
3

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Normas

Connector standard
IEC 61076-2-101

Plug, left

Zástrčka vlevo
M12, A-coded, IP69, female contact, angled 90°, Plastic, unshielded

Plug, right

Zástrčka vpravo
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
