SAIL-M12BW-4B-3.0U
SAIL-M12BW-4B-3.0U
Dimensioned drawing
Angled socket
SAIL-M12BW-4B-3.0U
Pole scheme
M12 = B-coded
SAIL-M12BW-4B-3.0U
Wiring diagram
SAIL-M12BW-4B-3.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BW-4B-3.0U

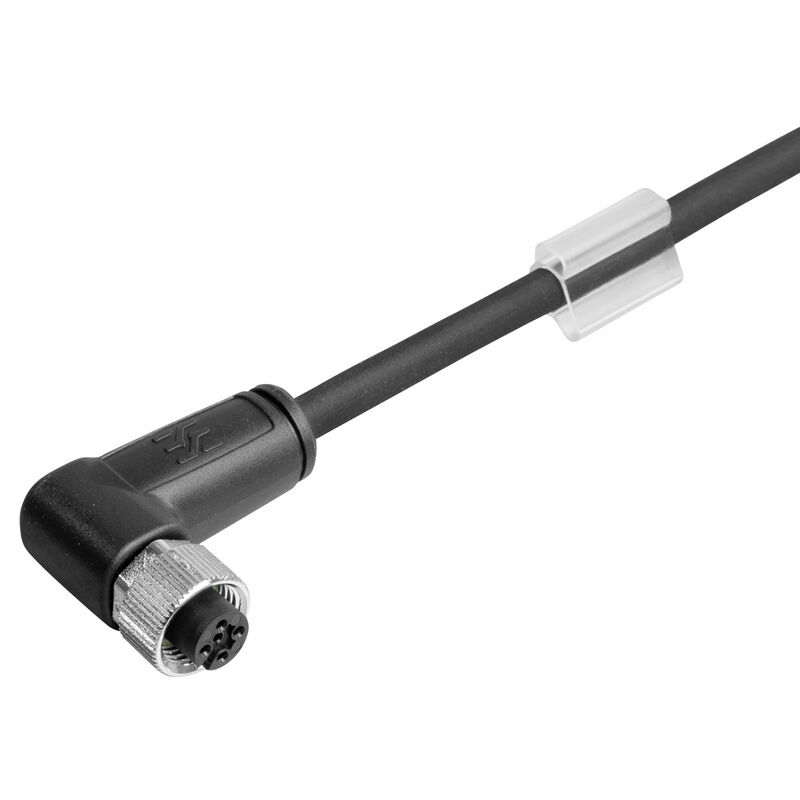

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 3 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 1061900300
Download data sheet Engineering Support Product Downloads
Accessories 7 Related products 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 3 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1061900300
Type
SAIL-M12BW-4B-3.0U
GTIN (EAN)
4032248811311
Qty.
1  items

Dimensions and weights

Net weight
90.64  g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5  m/s²
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
3  m
Colour coding
brown
white
blue
black
Configurable cable length
No
Core cross-section
0.34  mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
LABS-free
Yes
Length of torsion
1  m
Number of poles
4
Number of wires
4
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
4.1 mm + 0.15 mm
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black (similar to RAL 9005)
Shielded
No
Speed
3.33  m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180  °/m
Welding spark resistance
No

General technical data

AF size
12  mm
Coding
B-coded
Connection thread
M12
Contact material
CuZn35PB2
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4  A
Nominal voltage
250  V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
IP69
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Socket, angled

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250  V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
connector, M12, B-coded, Number of poles: 4, IP69, female contact, angled 0°, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 6.0
EC001855
ETIM 7.0
EC001855
ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 9.0
27-06-03-11
ECLASS 9.1
27-06-03-11
ECLASS 10.0
27-06-03-11
ECLASS 11.0
27-06-03-11
ECLASS 12.0
27-06-03-11
ECLASS 13.0
27-06-03-11
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
