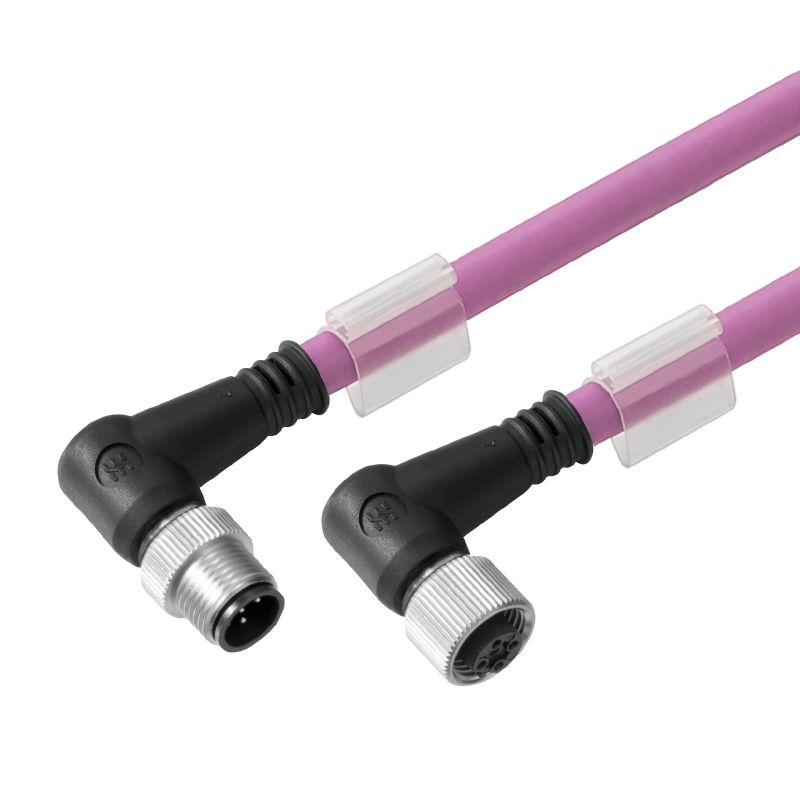

SAIL-M12WM12W-CD-30A
Bus line, Connecting line, M12 / M12, Number of poles: 5, 30 m, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Item No.
1062153000
Properties
| Product type | Bus line |
| Sheathing colour | violet |
| Version | Bus line, Connecting line, M12 / M12, Number of poles: 5, 30 m, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No |
| Order No. | 1062153000 |
| Type | SAIL-M12WM12W-CD-30A |
| GTIN (EAN) | 4050118510829 |
| Qty. | 1 items |
| Net weight | 1,852 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
| Weidmüller class short | Cable |
| Weidmüller class target channel | Copper data cable (Assembled) |
| Acceleration | 5 m/s² |
| Bending cycles | 3 Mio |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 30 m |
| Colour coding |
white
blue red black |
| Configurable cable length | No |
| Halogen | No |
| Hybrid cable | No |
| Insulation | TPE |
| Irradiation crosslinked | No |
| Number of poles | 5 |
| Outer cladding in accordance with UL AWM style | 20236 (80 °C / 30 V) |
| Outside diameter | 7 mm ± 0.3 mm |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | violet |
| Shielded | Yes |
| Speed | 180 m/s |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -10...80 °C |
| Temperature range, stationary | -40...80 °C |
| Welding spark resistance | No |
| Wire cross section (Print/Online) | 2 x 0.34 mm² + 2 x 0.22 mm² |
| Coding | A-coded |
| Connection thread | M12 / M12 |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| jumpered | No |
| LED | No |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 125 V |
| Temperature range of housing | -25…+80 °C |
| Threaded ring material | Brass, nickel-plated |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Rated voltage | 125 V |
| Certificate no. (cULus) | E307231 |
| Plug left | M12, A-coded, IP67, male contact, angled 90°, Plastic, shielded |
| Plug right | M12, A-coded, IP67, female contact, straight, Plastic, shielded |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_293574) |
| Product Change Notification |
[20221115 Technical change to CANopenDeviceNet cord sets and cables](https://mdcop.weidmueller.com/mediadelivery/asset/900_287220)
[20221115 Technische Änderung zu CANopenDeviceNet Leitungen](https://mdcop.weidmueller.com/mediadelivery/asset/900_287221) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E307231 |
