Properties
| Version | Sensor/actuator line, One end without connector, M16, Number of poles: 12, 3 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: Yes |
| Order No. | 1259010300 |
| Type | SAIL-M16BW-12-3.0U |
| GTIN (EAN) | 4050118146691 |
| Qty. | 1 items |
| Net weight | 252 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| Product type | Sensor/actuator line |
| Sheathing colour | black |
| Bending radius, min., moving | 15 x cable diameter |
| Bending radius, min., stationary | 8 x cable diameter |
| Cable length | 3 m |
| Colour coding |
white
brown grey / pink red / blue green yellow grey pink blue red black violet |
| Core cross-section | 0.25 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Irradiation crosslinked | No |
| Number of poles | 12 |
| Outside diameter | 7 mm ± 0.2 mm |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | No |
| Suitable for cable carriers | No |
| Temperature range, moving | -5...70 °C |
| Temperature range, stationary | -25...70 °C |
| Torsion resistance | 0 °/m |
| Welding spark resistance | No |
| Connection thread | M16 |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| Insulation strength | 1012 Ω |
| jumpered | No |
| LED | No |
| Plugging cycles | ≥ 500 |
| Pollution severity | 1 |
| Protection degree | IP67 |
| Rated current | 3 A |
| Rated voltage | 60 V |
| Temperature range of housing | -25 … +70 °C |
| Threaded ring material | Brass, nickel-plated |
| Tightening torque | M16: 0.6 Nm |
| Version | Socket, angled |
| Insulation strength | 1012 Ω |
| Rated voltage | 60 V |

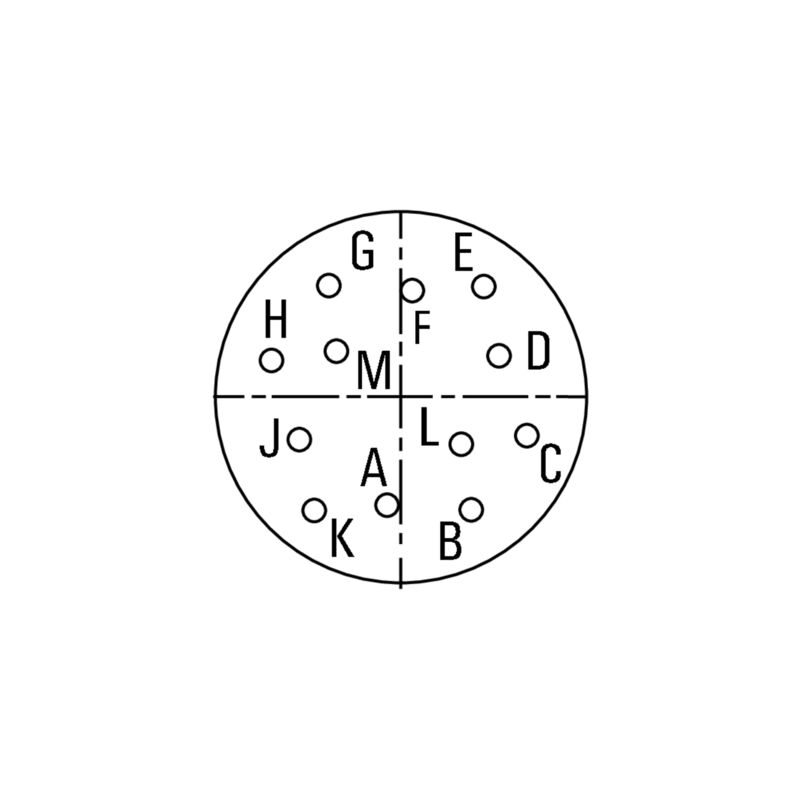

| Plug left | M16, IP67, female contact, angled 90°, Plastic, unshielded |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| Plug right | free conductor end |
| Plugging cycles | ≥ 500 |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1259010300) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1259010300&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-11 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-11 |
| ECLASS 11.0 | 27-06-03-11 |
| ECLASS 12.0 | 27-06-03-11 |
| ECLASS 13.0 | 27-06-03-11 |
| Approvals |   |
| ROHS | Conform |
