SAIL-M8BG-4-3.0UGE

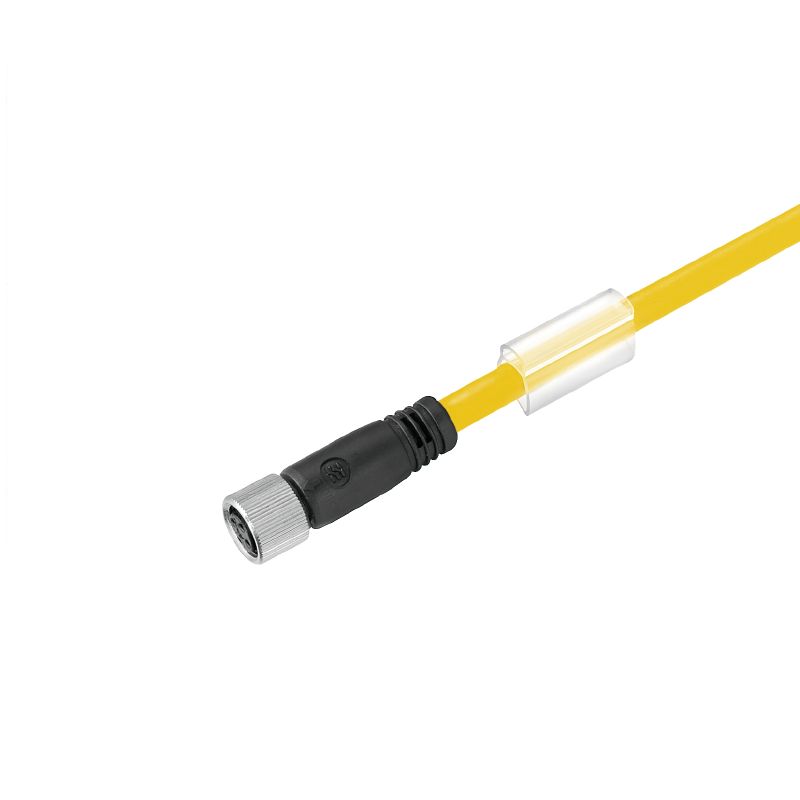

Sensor/actuator line, One end without connector, M8, Number of poles : 4, 3 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 1093200300

Properties

General ordering data

Version	Sensor/actuator line, One end without connector, M8, Number of poles : 4, 3 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.	1093200300
Type	SAIL-M8BG-4-3.0UGE
GTIN (EAN)	4032248864805
Qty.	1 items

Dimensions and weights

Net weight

67.76 g

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration	5 m/s²
Bending cycles	5 Mio
Bending cycles at torsion	> 5 Mio.
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Cable length	3 m
Colour coding	brown white blue black
Configurable cable length	No
Core cross-section	0.25 mm²
Core in accordance with UL AWM style	10493 (80 °C / 300 V)
Halogen	No
Hydrolysis and microbe resistant	Yes
Insulation	PP
Irradiation crosslinked	No
LABS-free	Yes
Length of torsion	1 m
Number of poles	4
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Outside diameter	4.4 mm ± 0.2 mm
Resistance to oils	in accordance with IEC 60811:404
Resistance to spread of flame	In accordance with UL1581 UL / CUL FT2 in accordance with IEC 60332-2-2
Resistant to welding beads	No
Sheath material	PUR
Sheathing colour	yellow
Shielded	No
Speed	5 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-40...80 °C
Torsion resistance	360 °/m
Welding spark resistance	No

General technical data

Coding	A-coded
Connection thread	M8
Contact surface	Gold-plated
Housing main material	PUR
Insulation strength	10⁸ Ω
jumpered	No
LED	No
Plugging cycles	≥ 100
Pollution severity	3
Protection degree	IP65 IP66 IP67 IP68 when screwed in
Rated current	4 A
Rated voltage	30 V
Temperature range of housing	-25…+85 °C
Threaded ring material	Brass, nickel-plated
Tightening torque	M8: 0.5 - 0.6 Nm
Version	Female socket, straight

Electrical properties

Insulation strength	10⁸ Ω
Rated voltage	30 V

General standards

Certificate no. (cULus)	E307231
Connector standard	IEC 61076-2-104

Standards

Connector standard

IEC 61076-2-104

Plug, left

Plug left

M8, IP69, female contact, straight, Plastic, unshielded

Plug, right

Plug right

free conductor end

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_211560)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1093200300)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1093200300)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC001855
ETIM 7.0	EC001855
ETIM 8.0	EC001855
ETIM 9.0	EC001855
ECLASS 9.0	27-06-03-11
ECLASS 9.1	27-06-03-11
ECLASS 10.0	27-06-03-11
ECLASS 11.0	27-06-03-11
ECLASS 12.0	27-06-03-11
ECLASS 13.0	27-06-03-11
ECLASS 14.0	27-06-03-11

Approvals

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E307231
