Properties
| Version | Valve cable (assembled), One end without connector - valve plug, Design A (18 mm), Cable length: 5 m, PUR, black (similar to RAL 9005) |
| Order No. | 1896990500 |
| Type | SAIL-VSA-DS-5.0U |
| GTIN (EAN) | 4050118044386 |
| Qty. | 1 items |
| Net weight | 248 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Acceleration | 5 m/s² |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 5 m |

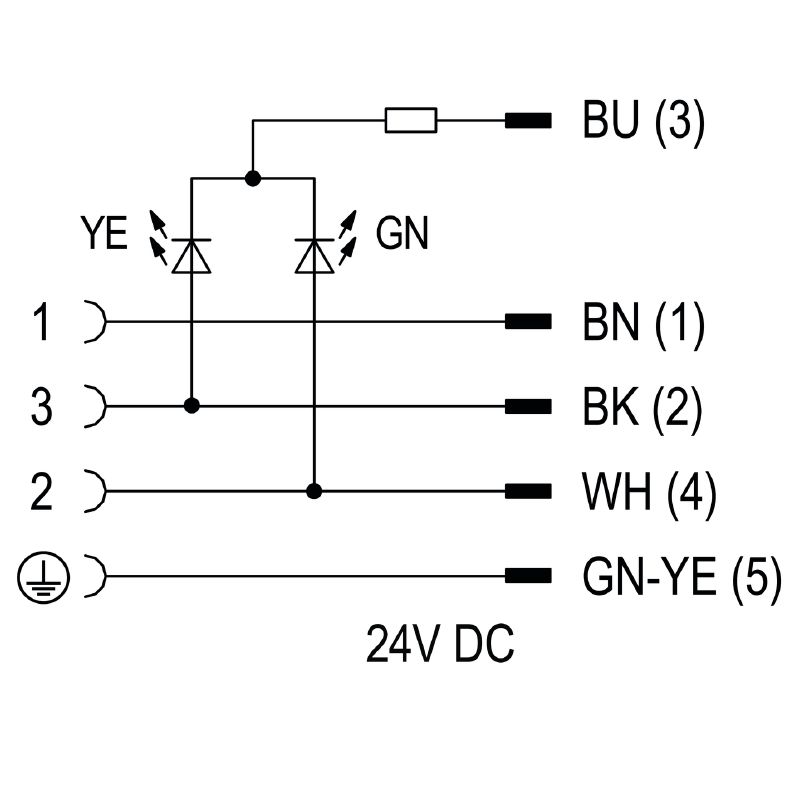

| Colour coding |
blue
brown Green/yellow black white |
| Core cross-section | 0.34 mm² |
| Halogen | No |
| Number of poles | 4 (3 + PE) |
| Outside diameter | 5.2 mm ± 0.2 mm |
| PE function | Yes |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | black (similar to RAL 9005) |
| Shielded | No |
| Speed | 200 m/s |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -30...90 °C |
| Temperature range, stationary | -40...90 °C |
| Welding spark resistance | No |
| Coding | Design A (18 mm) |
| Contact material | CuZn |
| Housing main material | TPU |
| LED | Yes |
| Pollution severity | 3 |
| Protection degree |
IP67
when screwed in |
| Rated current | 4 A |
| Rated voltage | 24 V |
| Temperature range of housing | -25…+80 °C |
| Version | One end without connector - valve plug |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_167112) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1896990500) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-12 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-12 |
| ECLASS 11.0 | 27-06-03-12 |
| ECLASS 12.0 | 27-06-03-12 |
| ECLASS 13.0 | 27-06-03-12 |
| ECLASS 14.0 | 27-06-03-12 |
| Approvals |   |
| ROHS | Conform |
