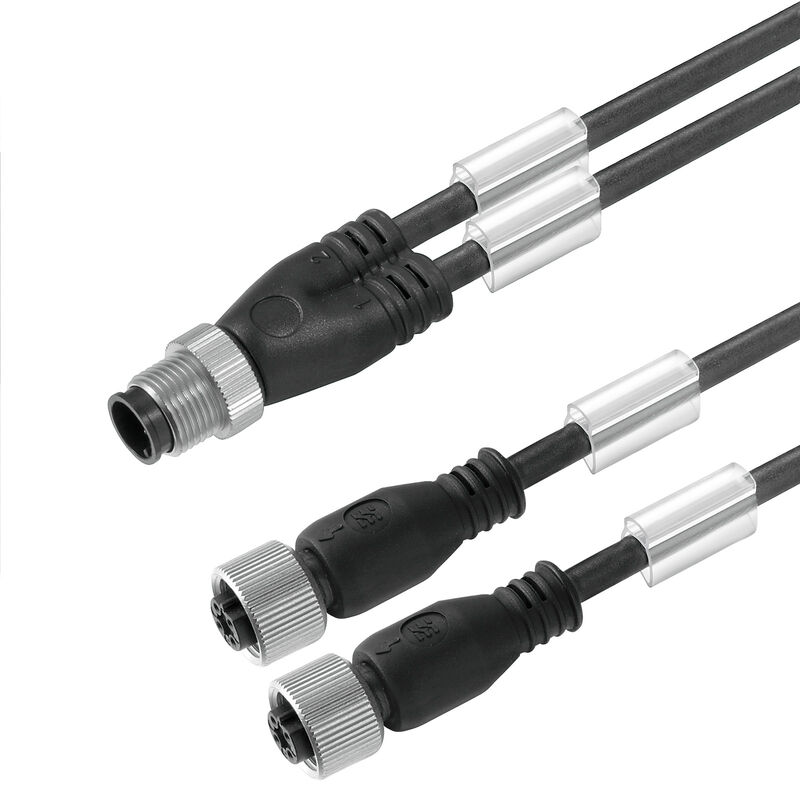

SAIL-ZW-M8BG-3-5.0V
Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 5 m, Twin cabling, socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Item No.
1466350500
Properties
| Version | Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 5 m, Twin cabling, socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes |
| Order No. | 1466350500 |
| Type | SAIL-ZW-M8BG-3-5.0V |
| GTIN (EAN) | 4050118275957 |
| Qty. | 1 items |
| Net weight | 320 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
| Cable length | 5 m |
| Colour coding |
brown
blue black |
| Configurable cable length | No |
| Core cross-section | 0.25 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Number of poles | 3 |
| Outer cladding in accordance with UL AWM style | 2464 (80 °C / 300 V) |
| Outside diameter | 4.5 mm ± 0.2 mm |
| Resistant to welding beads | No |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | No |
| Suitable for cable carriers | No |
| Temperature range, moving | -5...80 °C |
| Temperature range, stationary | -30...80 °C |
| Torsion resistance | 0 °/m |
| Welding spark resistance | No |
| Connection thread | M12 / M8 |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| Insulation strength | 108 Ω |
| jumpered | No |
| LED | No |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree |
IP67
IP68 when screwed in IP65 IP66 |
| Rated current | 4 A |
| Rated voltage | 60 V |
| Temperature range of housing | -25…+85 °C |
| Threaded ring material | Diecast zinc |
| Tightening torque |
M12: 0.8 - 1.2 Nm
M8: 0.5 - 0.6 Nm |
| Version | Twin cabling, socket, straight |
| Insulation strength | 108 Ω |
| Rated voltage | 60 V |
| Connector standard |
IEC 61076-2-101
IEC 61076-2-104 |
| Connector standard |
IEC 61076-2-101
IEC 61076-2-104 |
| Plug left | M12, A-coded, IP68, male contact, straight, Plastic, unshielded |
| Plug right | M8, IP68, female contact, straight, Plastic, unshielded, M8, IP68, female contact, straight, Plastic, unshielded |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1466350500) |
| Product Change Notification |
[DE - Technische Änderung zu M12 Gewindering mit 6-Kant](https://mdcop.weidmueller.com/mediadelivery/asset/900_88623)
[EN - Technical change to M12 nut with additional hexagonal mounting](https://mdcop.weidmueller.com/mediadelivery/asset/900_88624) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-11 |
| ECLASS 9.1 | 27-06-03-13 |
| ECLASS 10.0 | 27-06-03-11 |
| ECLASS 11.0 | 27-06-03-11 |
| ECLASS 12.0 | 27-06-03-11 |
| ECLASS 13.0 | 27-06-03-11 |
| ECLASS 14.0 | 27-06-03-11 |
| Approvals |   |
| ROHS | Conform |
