SAIL-ZW-M8BW-3-3.0U
SAIL-ZW-M8BW-3-3.0U
Dimensioned drawing
Twin male connector, straight
SAIL-ZW-M8BW-3-3.0U
Dimensioned drawing
Angled socket
SAIL-ZW-M8BW-3-3.0U
Pole scheme
Male
SAIL-ZW-M8BW-3-3.0U
Pole scheme
Socket
SAIL-ZW-M8BW-3-3.0U
Wiring diagram

SAIL-ZW-M8BW-3-3.0U

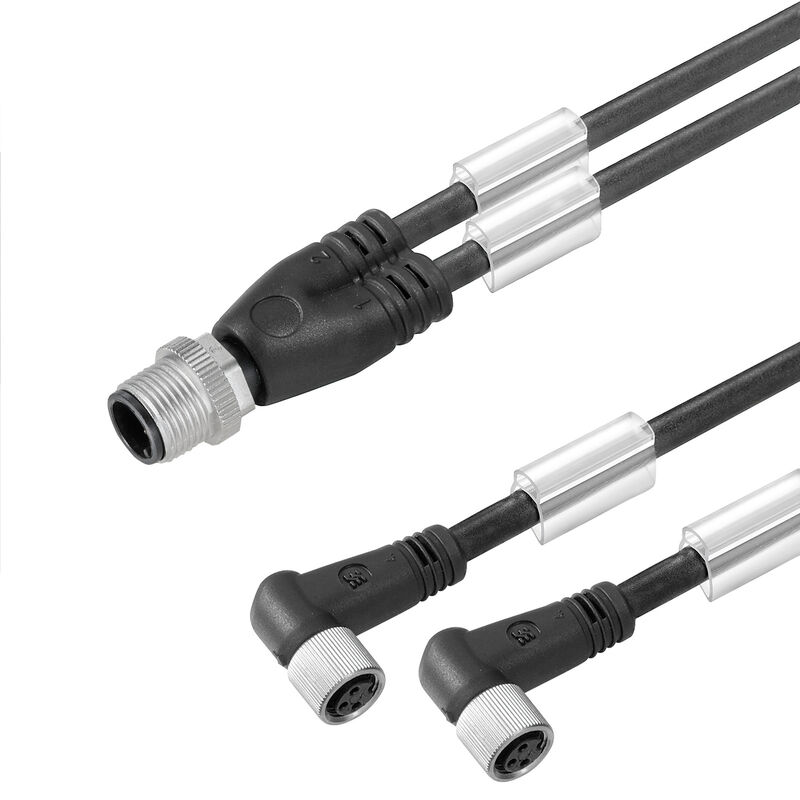

Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 3 m, Twin cabling, pin, straight, 2x socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt-ID 1964300300
Ladda ner datablad Tuotelataukset Tekninen tuki
Lisävarusteet 6 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 3 m, Twin cabling, pin, straight, 2x socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1964300300
Type
SAIL-ZW-M8BW-3-3.0U
GTIN (EAN)
4032248647644
Qty.
1 items

Dimensions and weights

Net weight
150,48 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Accélération
5 m/s²
Aislamiento
PP
Cable length
3 m
Codifica a colori
brown
blue
black
Core cross-section
0,25 mm²
Cycles de courbure
12 Mio
Guaina secondo UL AWM Style
20549 (80 °C / 300 V)
Halógenos
No
Hidrolízis és mikróba-ellenálló
Yes
Konfigurálható kábelhossz
No
Köpeny anyaga
PUR
Length of torsion
1 m
Lángterjedéssel szembeni ellenállás
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2
Nucleo secondo UL AWM Style
10493 (80 °C / 300 V)
Number of poles
3
Odporne na ściegi spawalnicze
No
Outside diameter
3.6 mm ± 0.15 mm
Rayon de courbure, min., fixe
5 x cable diameter
Rayon de courbure, mobile
10 x cable diameter
Resistance to oils
Yes
Resistenza alle scintille di saldatura
No
Sebesség
3,33 m/s
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Циклы изгиба при скручивании
> 5 Mio.
비틀림 저항
360 °/m

General technical data

IP65
IP66
IP67
IP68
when screwed in
AF size
12 mm
Coding
M12 = A, M8 = none
Connection thread
M12 / M8
Contact material
CuZn35PB2
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Brass, nickel-plated
Tightening torque
M8: 0.5 - 0.6 Nm
M12: 0.8 - 1.2 Nm
Version
Twin cabling, pin, straight
2x socket, angled

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Connector standard
IEC 61076-2-101
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-101
IEC 61076-2-104

Plug, left

Plug left
M12, A-coded, Number of poles: 4, male contact, straight, plug, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
