Properties

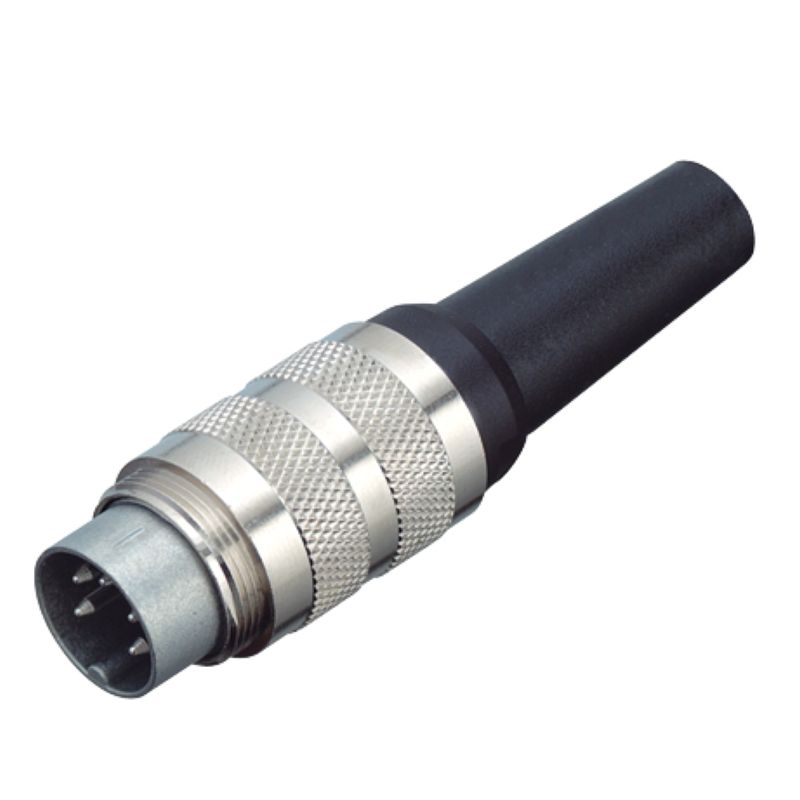

| Version | Field attachable connector, M16, pin, straight |
| Order No. | 1548820000 |
| Type | SAIS-M16-16/9 |
| GTIN (EAN) | 4050118355314 |
| Qty. | 1 items |
| Net weight | 28 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| Cable diameter | 6...8 mm (PG9) |
| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 6 mm |
| Coding | none |
| Conductor cross-section, max. | 0.75 mm² |
| Conductor cross-section, min. | 0.14 mm² |
| Connection cross-section | 0,14...0,75mm² (2-, 4-, 5-, 6-, 7- und 8-poles) / 0,14...0,25mm² (12- und 16-poles) |
| Connection cross-section, max. | 0.25 mm² |
| Connection cross-section, min. | 0.14 mm² |
| Contact surface | Ag (silver) |
| Housing main material | PA |
| Insulation strength | 108 Ω |
| Number of poles | 16 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |
| Protection degree | IP40 |
| Rated current | 3 A |
| Rated current | 7 A (2-pole) / 6 A (4- and 5-pole) / 5 A (6-, 7- and 8-pole) / 3 A (12- and 16-pole) |
| Rated voltage | 30 V |
| Shield connection | No |
| Temperature range of housing | -40 … +85 ° C |
| Threaded ring material | Diecast zinc |
| Type of connection | Solder connection |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_71177) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 9.0 | EC002635 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-01-02 |
| ECLASS 12.0 | 27-44-01-16 |
| ECLASS 13.0 | 27-44-01-02 |
| ROHS | Conform |
