Properties
| Version | Feed-through terminal block, Screw connection, 2.5 mm², 800 V, 24 A, Number of connections: 2 |
| Order No. | 2572430000 |

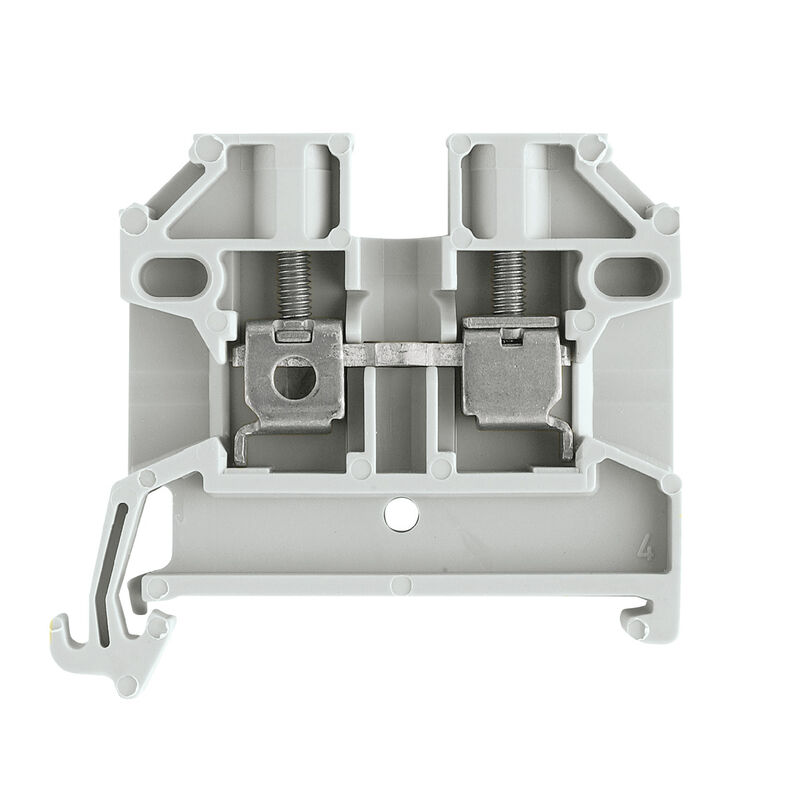

| Type | SAK 2.5/35 GR |
| GTIN (EAN) | 4050118582482 |
| Qty. | 100 items |
| Alternative product | [1037720000](~/p/1037720000) |
| Depth | 40 mm |
| Depth (inches) | 1.575 inch |
| Height | 44.5 mm |
| Height (inches) | 1.752 inch |
| Width | 6.1 mm |
| Width (inches) | 0.24 inch |
| Net weight | 6.33 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Material | PA 66 |
| Colour | grey |
| UL 94 flammability rating | V-2 |
| Certificate No. (ATEX) | TUEV18ATEX8207U |
| Certificate No. (IECEX) | IECEXTUR18.0017U |
| Max. voltage (ATEX) | 690 V |
| Current (ATEX) | 24 A |
| Wire cross section max. (ATEX) | 6 mm² |
| Max. voltage (IECEX) | 690 V |
| Current (IECEX) | 24 A |
| Wire cross section max. (IECEX) | 6 mm² |
| End cover plate required | Yes |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | on side |
| Number of connections | 2 |
| Type of connection | Screw connection |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 800 V |
| Rated current | 24 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Approval/Certificate/Document of Conformity |
[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_188860)
[CFAT SAK 2.5/35](https://mdcop.weidmueller.com/mediadelivery/asset/900_207083) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253945) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89280) [CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89281) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_207097) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_207098) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| Product Change Notification | [20210308 Technical Change SAK PA 35](https://mdcop.weidmueller.com/mediadelivery/asset/900_200384) |
| User Documentation | [NTI SAK 2.5/35](https://mdcop.weidmueller.com/mediadelivery/asset/900_207100) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| Approvals |     |
