SAK 35N/35/IK

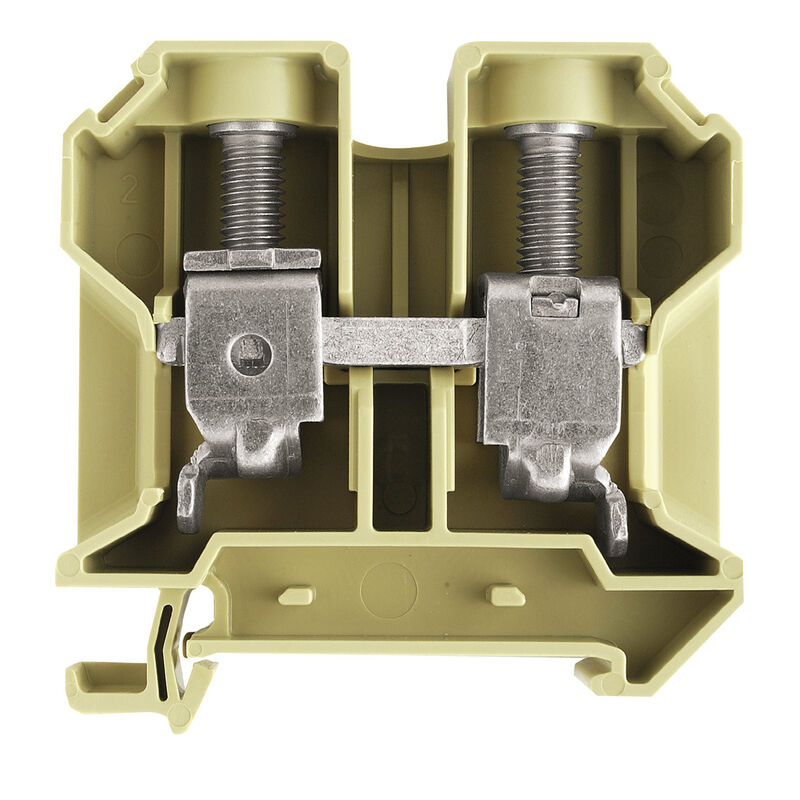

Product image

SAK 35N/35/IK

This product will soon be unavailable.

Last order date: /Date(1782770400000)/

Alternative product: 0608260000

Morsettiera passante, Collegamento a vite, beige / giallo, 35 mm², 125 A, 800 V, Numero di collegamenti: 2

Item No. 0608360000
Download data sheet Engineering Support Product Downloads
Accessories 18 Related products 1057
Omologazioni Dati generali per l’ordinazione Dimensioni e pesi Temperature Conformità ambientale del prodotto Dati dei materiali Dati caratteristici del sistema Kiegészítő műszaki adatok Conducteur raccordable (autre raccordement) Raccordement (raccordement nominal) Caractéristiques nominales selon CSA Általános Dati dimensionamento Caractéristiques nominales selon UL 분류

Omologazioni

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
준수
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

Dati generali per l’ordinazione

Version
Morsettiera passante, Collegamento a vite, beige / giallo, 35 mm², 125 A, 800 V, Numero di collegamenti: 2
Order No.
0608360000
Type
SAK 35N/35/IK
GTIN (EAN)
4008190090197
Qty.
20 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1782770400000)/
Alternative product
[0608260000](~/p/0608260000)

Dimensioni e pesi

Depth
60 mm
Profondità (pollici)
2,362 inch
Height
58 mm
높이 (인치)
2,283 inch
Width
16 mm
폭 (인치)
0,63 inch
Net weight
46,552 g

Temperature

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…55 °C
Continuous operating temp., min.
−50 °C
Continuous operating temp., max.
100 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
0.1 wt% 이상의 SVHC 없음

Dati dei materiali

Basic material
PA 66
Colour
beige / yellow
UL 94 flammability rating
V-2

Dati caratteristici del sistema

Version
Collegamento a vite
per collegamento trasversale avvitabile
aperto da un lato
End cover plate required
Sì
Number of potentials
1
레벨 수
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
Nie
PEN function
Nie

Kiegészítő műszaki adatok

Explosion-tested version
Nem
Number of similar terminals
1
Open sides
jobb
Type of mounting
Bilincses

Conducteur raccordable (autre raccordement)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
35 mm²
Connection type, additional connection
Csavaros csatlakozás

Raccordement (raccordement nominal)

Blade size
S4 (DIN 6911)
Clamping range, max.
50 mm²
Clamping range, min.
2,5 mm²
Clamping screw
M 6
Connection cross-section, finely stranded, min.
2,5 mm²
Connection cross-section, stranded, max.
50 mm²
Connection cross-section, stranded, min.
2,5 mm²
Connection direction
latéralement
Gauge to IEC 60947-1
B8
Number of connections
2
Stripping length
18 mm
Tightening torque, max.
6 Nm
Tightening torque, min.
4 Nm
Twin wire-end ferrules, max.
16 mm²
Twin wire-end ferrules, min.
1,5 mm²
Type of connection
Csavaros csatlakozás
Wire connection cross section AWG, max.
AWG 2
Wire connection cross section AWG, min.
AWG 12
Wire connection cross section, finely stranded, max.
35 mm²
Wire connection cross section, finely stranded, min.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
2,5 mm²
Wire connection cross-section, solid core, max.
16 mm²
Wire connection cross-section, solid core, min.
2,5 mm²

Caractéristiques nominales selon CSA

Certificate No. (CSA)
12400-201
Current size C (CSA)
120 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
2 AWG
Wire cross section min. (CSA)
12 AWG

Általános

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 2
Wire connection cross section AWG, min.
AWG 12

Dati dimensionamento

Rated cross-section
35 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
125 A
Current at maximum wires
150 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0,26 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
4 W
Stopień zanieczyszczenia
3

Caractéristiques nominales selon UL

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
2 AWG
Conductor size Factory wiring min. (UR)
12 AWG
Conductor size Field wiring max. (UR)
2 AWG
Conductor size Field wiring min. (UR)
12 AWG
Current size C (UR)
100 A
Voltage size C (UR)
600 V

분류

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
