Properties
| Version | Feed-through terminal block, Screw connection, 35 mm², 800 V, 125 A, Number of connections: 2 |
| Order No. | 0555760000 |

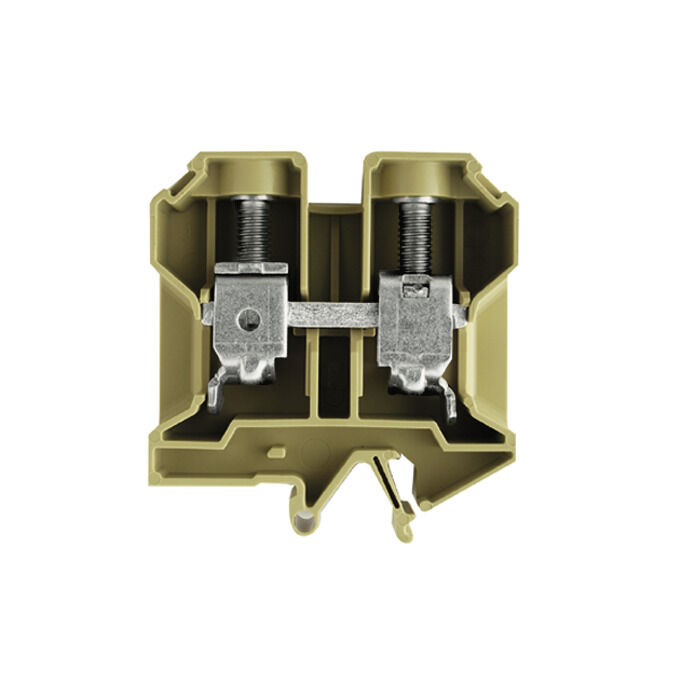

| Type | SAK 35N/IK |
| GTIN (EAN) | 4008190143749 |
| Qty. | 20 items |
| Depth | 67.5 mm |
| Depth (inches) | 2.657 inch |
| Height | 58 mm |
| Height (inches) | 2.283 inch |
| Width | 16 mm |
| Width (inches) | 0.63 inch |
| Net weight | 54.5 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Material | PA 66 |
| Colour | beige / yellow |
| UL 94 flammability rating | V-2 |
| Version |
Screw connection
for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 32 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Clamped |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 35 mm² |
| Connection type, additional connection | Screw connection |
| Blade size | S4 (DIN 6911) |
| Clamping range, max. | 50 mm² |
| Clamping range, min. | 2.5 mm² |
| Clamping screw | M 6 |
| Connection cross-section, stranded, max. | 50 mm² |
| Connection cross-section, stranded, min. | 4 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B8 |
| Number of connections | 2 |
| Stripping length | 18 mm |
| Tightening torque, max. | 6 Nm |
| Tightening torque, min. | 4 Nm |
| Twin wire-end ferrules, max. | 16 mm² |
| Twin wire-end ferrules, min. | 1.5 mm² |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 12 |
| Wire connection cross section, finely stranded, max. | 35 mm² |
| Wire connection cross section, finely stranded, min. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 2.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 2.5 mm² |
| Certificate No. (CSA) | 12400-201 |
| Current size C (CSA) | 120 A |
| Voltage size C (CSA) | 600 V |
| Wire cross section max. (CSA) | 2 AWG |
| Wire cross section min. (CSA) | 12 AWG |
| Rail | TS 32 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 12 |
| Rated cross-section | 35 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 125 A |
| Current at maximum wires | 150 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0.26 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 2 AWG |
| Conductor size Factory wiring min. (UR) | 12 AWG |
| Conductor size Field wiring max. (UR) | 2 AWG |
| Conductor size Field wiring min. (UR) | 12 AWG |
| Current size C (UR) | 100 A |
| Voltage size C (UR) | 600 V |
| Approval/Certificate/Document of Conformity |
[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152129)
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_38584) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_204180) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0555760000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0555760000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0555760000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| Approvals |       |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
