Properties
| Version | Feed-through terminal block, Screw connection, 6 mm², 800 V, 41 A, Number of connections: 2 |
| Order No. | 0380560000 |

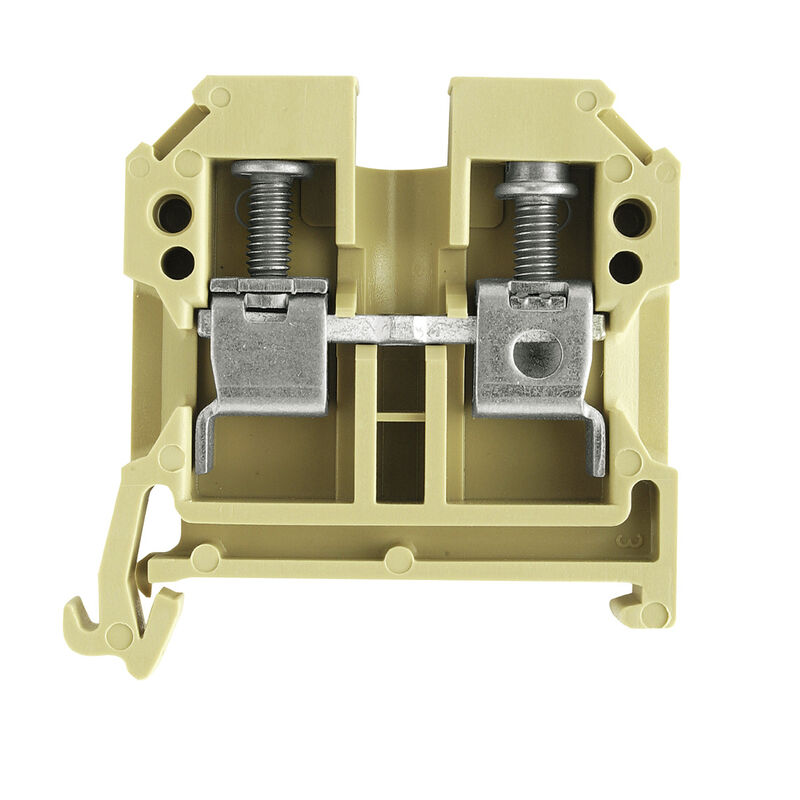

| Type | SAK 6/35 PA |
| GTIN (EAN) | 4008190134648 |
| Qty. | 100 items |
| Alternative product | [1020200000](~/p/1020200000) |
| Depth | 44 mm |
| Depth (inches) | 1.732 inch |
| Height | 45 mm |
| Height (inches) | 1.772 inch |
| Width | 8 mm |
| Width (inches) | 0.315 inch |
| Net weight | 12.98 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Material | PA 66 |
| Colour | beige / yellow |
| UL 94 flammability rating | V-2 |
| Certificate No. (ATEX) | TUEV18ATEX8207U |
| Certificate No. (IECEX) | IECEXTUR18.0017U |
| Max. voltage (ATEX) | 550 V |
| Current (ATEX) | 41 A |
| Wire cross section max. (ATEX) | 10 mm² |
| Max. voltage (IECEX) | 550 V |
| Current (IECEX) | 41 A |
| Wire cross section max. (IECEX) | 10 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU label | II 2 G D |
| Version |
Screw connection
for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 6 mm² |
| Connection type, additional connection | Screw connection |
| Blade size | 4.0 x 0.8 mm |
| Clamping range, max. | 10 mm² |
| Clamping range, min. | 0.33 mm² |
| Clamping screw | M 3.5 |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A5 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Tightening torque, max. | 1.6 Nm |
| Tightening torque, min. | 0.8 Nm |
| Torque level with DMS electric screwdriver | 3 |
| Twin wire-end ferrules, max. | 4 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 154685-1501714 |
| Current size C (CSA) | 47 A |
| Voltage size C (CSA) | 600 V |
| Wire cross section max. (CSA) | 8 AWG |
| Wire cross section min. (CSA) | 20 AWG |
| TS 35 offset | 20 mm |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 22 |
| Rated cross-section | 6 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 41 A |
| Current at maximum wires | 57 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring max. (UR) | 8 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Current size C (UR) | 40 A |
| Voltage size C (UR) | 600 V |
| Approval/Certificate/Document of Conformity |
[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_188862)
[CFAT SAK 16/35](https://mdcop.weidmueller.com/mediadelivery/asset/900_207093) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253945) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89280) [CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89281) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152129) [Lloyds Register Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_153736) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_207097) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_207098) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36737) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59085) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0380560000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0380560000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0380560000&norm=0) |
| Product Change Notification | [20210308 Technical Change SAK PA 35](https://mdcop.weidmueller.com/mediadelivery/asset/900_200384) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| Approvals |            |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
