SAKG 32/35 II/GW

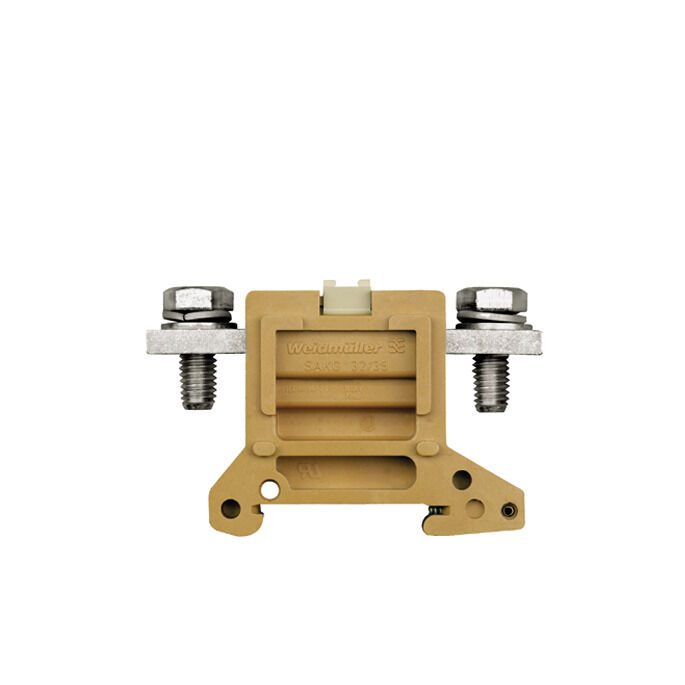

Product image

SAKG 32/35 II/GW

Feed-through terminal block, Screw connection, medium yellow, 50 mm², 150 A, 1000 V, Number of connections: 1

Item No. 0637420000
Download data sheet Product Downloads Engineering Support
Accessories 23 Related products 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
Feed-through terminal block, Screw connection, medium yellow, 50 mm², 150 A, 1000 V, Number of connections: 1
Order No.
0637420000
Type
SAKG 32/35 II/GW
GTIN (EAN)
4008190070564
Qty.
10  items

Dimensions and weights

Depth
53  mm
Depth (inches)
2.087  inch
Height
80  mm
Height (inches)
3.15  inch
Width
32  mm
Width (inches)
1.26  inch
Net weight
128.304  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60  °C
Continuous operating temp., max.
130  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
999cd67e-471e-4085-8dba-1342fcea86de

Material data

Material
KrG
Colour
medium yellow
UL 94 flammability rating
V-0
5VA

System specifications

Version
Stud terminal
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Number of similar terminals
1
Open sides
Open
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Clamping range, max.
70  mm²
Clamping range, min.
10  mm²
Clamping screw
M 8
Connection cross-section, stranded, max.
70  mm²
Connection cross-section, stranded, min.
10  mm²
Connection direction
on side
Number of connections
1
Tightening torque, max.
12  Nm
Tightening torque, min.
6  Nm
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 2/0
Wire connection cross section AWG, min.
AWG 1
Wire connection cross section, finely stranded, max.
70  mm²
Wire connection cross section, finely stranded, min.
10  mm²
Wire connection cross-section, solid core, max.
70  mm²
Wire connection cross-section, solid core, min.
10  mm²

CSA rating data

Certificate No. (CSA)
12400-199
Current size C (CSA)
170 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
00 AWG
Wire cross section min. (CSA)
1 AWG

General

Rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 2/0
Wire connection cross section AWG, min.
AWG 1

Rating data

Rated cross-section
50  mm²
Rated voltage
1,000  V
Rated DC voltage
1,000  V
Rated current
150  A
Current at maximum wires
192  A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0.21  mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
4.8  W
Pollution severity
3

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
000 AWG
Conductor size Factory wiring min. (UR)
6 AWG
Conductor size Field wiring max. (UR)
000 AWG
Conductor size Field wiring min. (UR)
6 AWG
Current size C (UR)
200 A
Voltage size C (UR)
600 V

Classifications

ETIM 6.0
EC000897
ETIM 7.0
EC000897
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 9.0
27-14-11-20
ECLASS 9.1
27-14-11-20
ECLASS 10.0
27-14-11-20
ECLASS 11.0
27-14-11-20
ECLASS 12.0
27-14-11-20
ECLASS 13.0
27-25-01-01
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
