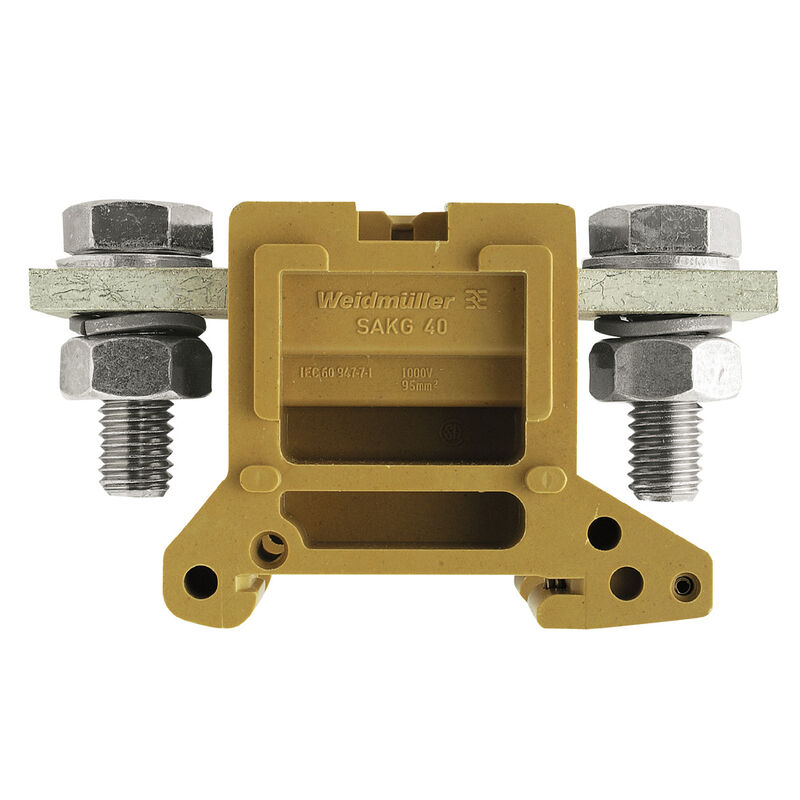

SAKG 40/35 II

Feed-through terminal block, Screw connection, medium yellow, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, 130 °C

Item No. 0637720000

Properties

General ordering data

Version	Feed-through terminal block, Screw connection, medium yellow, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, 130 °C
Order No.	0637720000
Type	SAKG 40/35 II
GTIN (EAN)	4008190101367
Qty.	5 items

Dimensions and weights

Depth	53 mm
Depth (inches)	2.087 inch
Height	90 mm
Height (inches)	3.543 inch
Width	46 mm
Width (inches)	1.811 inch
Net weight	226.52 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	999cd67e-471e-4085-8dba-1342fcea86de

Material	KrG
Colour	medium yellow
UL 94 flammability rating	V-0 5VA

System specifications

Version	Stud terminal
End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	No
Installation advice	Direct mounting
Number of similar terminals	1
Open sides	Open
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection

Screw connection

Conductors for clamping (rated connection)

Clamping range, max.	95 mm²
Clamping range, min.	10 mm²
Clamping screw	M 10
Connection cross-section, stranded, max.	95 mm²
Connection cross-section, stranded, min.	10 mm²
Connection direction	on side
Number of connections	2
Tightening torque, max.	20 Nm
Tightening torque, min.	10 Nm
Type of connection	Screw connection
Wire connection cross section AWG, max.	AWG 4/0
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section, finely stranded, max.	95 mm²
Wire connection cross section, finely stranded, min.	10 mm²
Wire connection cross-section, solid core, max.	16 mm²
Wire connection cross-section, solid core, min.	10 mm²

CSA rating data

Certificate No. (CSA)	12400-119
Current size C (CSA)	250 A
Voltage size C (CSA)	600 V
Wire cross section max. (CSA)	0000 AWG
Wire cross section min. (CSA)	00 AWG

Installation advice	Direct mounting
Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 4/0
Wire connection cross section AWG, min.	AWG 20

Rated cross-section	95 mm²
Rated voltage	1,000 V
Rated DC voltage	1,000 V
Rated current	232 A
Current at maximum wires	232 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	0.14 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	7.42 W
Pollution severity	3

Certificate No. (UR)	E60693
Conductor size Factory wiring max. (UR)	0000 AWG
Conductor size Factory wiring min. (UR)	1 AWG
Conductor size Field wiring max. (UR)	0000 AWG
Conductor size Field wiring min. (UR)	1 AWG
Current size C (UR)	230 A
Voltage size C (UR)	600 V

Approval/Certificate/Document of Conformity	[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36632) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.0637720000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-01
ECLASS 14.0	27-25-01-01

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![UR](/picture/UR.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E60693
