Properties
| Version | Feed-through terminal block, Screw connection, 150 mm², 1000 V, 309 A, Number of connections: 2 |
| Order No. | 0638020000 |

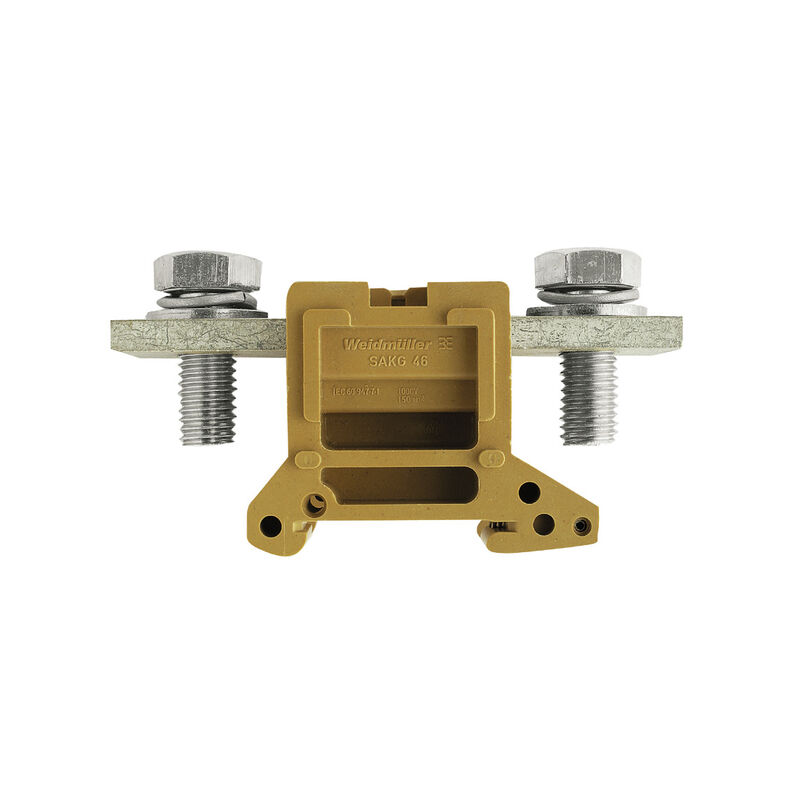

| Type | SAKG 46/35 II/GW |
| GTIN (EAN) | 4008190008161 |
| Qty. | 5 items |
| Depth | 57 mm |
| Depth (inches) | 2.244 inch |
| Height | 106 mm |
| Height (inches) | 4.173 inch |
| Width | 46 mm |
| Width (inches) | 1.811 inch |
| Net weight | 339 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 999cd67e-471e-4085-8dba-1342fcea86de |
| Material | KrG |
| Colour | medium yellow |
| UL 94 flammability rating |
V-0
5VA |
| Version | Stud terminal |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Number of similar terminals | 1 |
| Open sides | Open |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Clamping range, max. | 185 mm² |
| Clamping range, min. | 10 mm² |
| Clamping screw | M 12 |
| Connection direction | on side |
| Number of connections | 2 |
| Tightening torque, max. | 31 Nm |
| Tightening torque, min. | 14 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | kcmil 300 |
| Wire connection cross section AWG, min. | AWG 4/0 |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 10 mm² |
| Certificate No. (CSA) | 12400-199 |
| Current size C (CSA) | 365 A |
| Voltage size C (CSA) | 600 V |
| Wire cross section max. (CSA) | 300 kcmil |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | kcmil 300 |
| Wire connection cross section AWG, min. | AWG 4/0 |
| Rated cross-section | 150 mm² |
| Rated voltage | 1,000 V |
| Rated DC voltage | 1,000 V |
| Rated current | 309 A |
| Current at maximum wires | 353 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0.1 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 9.89 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 300 kcmil |
| Conductor size Factory wiring min. (UR) | 0000 AWG |
| Conductor size Field wiring max. (UR) | 300 kcmil |
| Conductor size Field wiring min. (UR) | 0000 AWG |
| Current size C (UR) | 285 A |
| Voltage size C (UR) | 600 V |
| Approval/Certificate/Document of Conformity |
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36626)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0638020000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0638020000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
